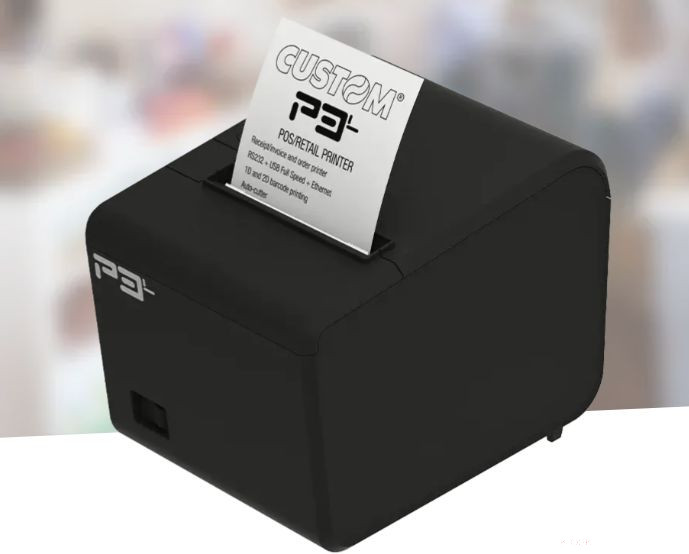

Printer CUSTOM P3L ETH USB RS232

Article No.:

CUST_P3L

Article No.:

CUST_P3L

Asztali, 80mm-es blokknyomtató USB/ETH/RS232 interface-el. A legjobb ár/érték arányú blokknyomtató.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available for order

Details
Info

Details

The printer allows the saving of receipt data in the flash memory in text or image format; data can be simply read via USB (mass storage).

Without power supply.

Available accessories: Paper holder with near paper end sensor; Boxed power supply 60W OUT 24V; Power supply adapter cable; Serial cable conn. 9 pole-9 pole female 1,8mt; USB cable type AB 1,8mt; NED board + wiring; Roll OD 130 ID 25 L 190 W 80 (pack.of 10 pcs); Roll OD 180 ID 25 L 263 W 80 (pack.of 10 pcs)

Features:

The most compact kiosk printer with small footprint: 116x143x76 mm
Flexible: separate roll holder in different position with hergonomic paper loading from the right or left side, suiting all kiosk designs
Available connectors on the left side (standard) or back side (optional)
Anti-jamming system with clean command (patented)
Automatic ticket ejecting & retractring
Retracting function w/o ticket presentation (patented)
Hot swap function: it is possible to remove the printer from the kiosk w/o powering it off
VeriNotch and optional TopNotch special sensors
Print head self-diagnostic function: it is possible to get the number of not working dots

Applications:

Self-service kiosks
ATMs & Banking machine
Gaming machine
Parking payment terminal
Vending machine

Technical information:

200dpi best printing quality
Paper width from 50 to 82.5 mm
Paper thickness from 60 to 110 g/m²
Speed > of 250 mm/sec
Ejecting & Retracting (speed > of 1000 mm/s)
Paper roll (diameter 250mm on board) and fan-fold (450 tickets)
Highly reliable and sturdy
RS232 and USB 2.0 full speed interface
Barcodes 1D&2D: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32,
PDF417, DATAMATRIX , AZTEC, QRCODE
TrueType fonts supported and "drag&drop" logos and graphics
Long life printing head (200Km)
Highly reliable cutter: > of 1.000.000 cuts
MTBF > 150.000 hours
Sensors: paper end (ticket presence), paper out, open printer cover, near paper end on external paper roll holder, printing head temperature.

Software features:

Status Monitor DLL
Full Windows Status Monitor Driver: it reduces the assistance costs on field
Self-installing Driver for WinXP/Vista /7 (+64bit support), Linux Driver
Monospace TrueType fonts supported and Russian, GB2312, BIG5 and 18030 Chinese fonts already on board
Logos dynamic management: large number of logos and graphics can be loaded with a simple drag and drop, up to a maximum of 1MB
Virtual Comm: the system sees the USB port as a serial port
CUSTOM operating system

Info

ADAT INTERFACE:

ETHERNET

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

POS , PÉNZTÁRI ALKALMAZÁS

KIALAKÍTÁS:

ASZTALI

Weight:

1.939 kg/pcs
