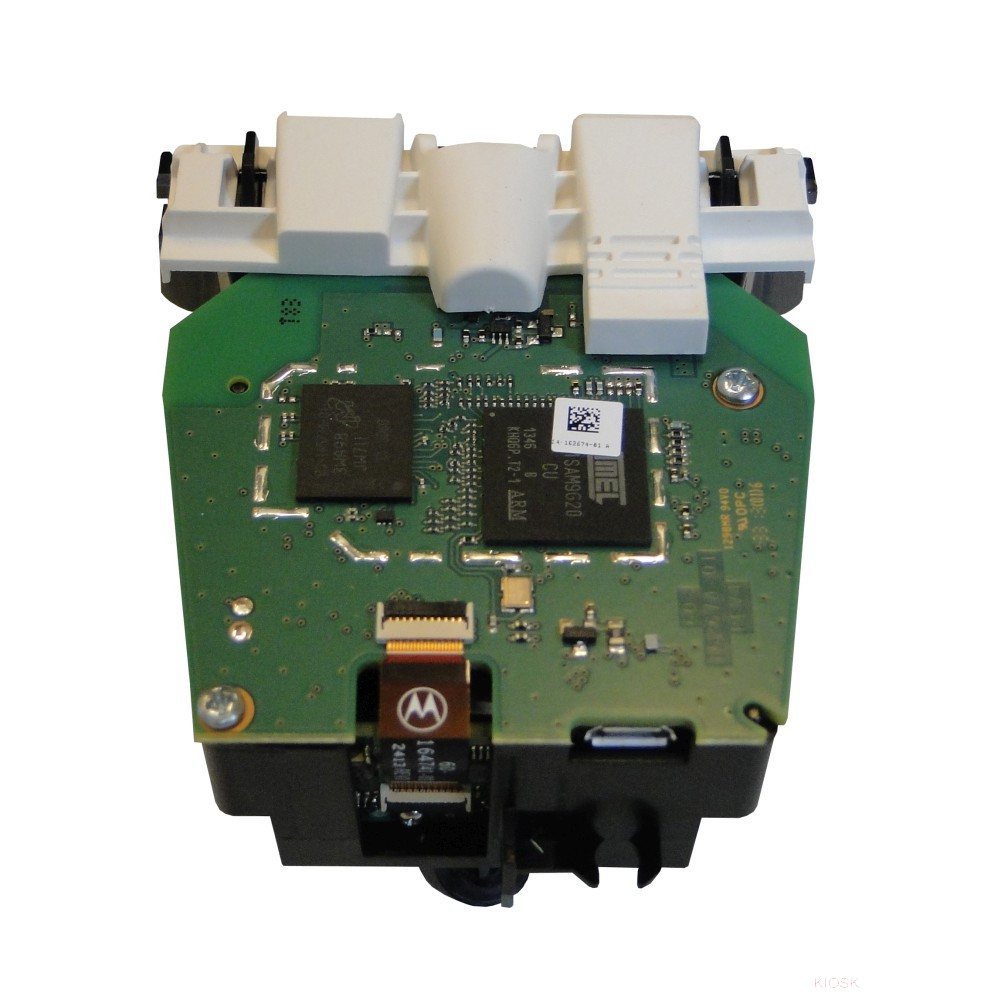

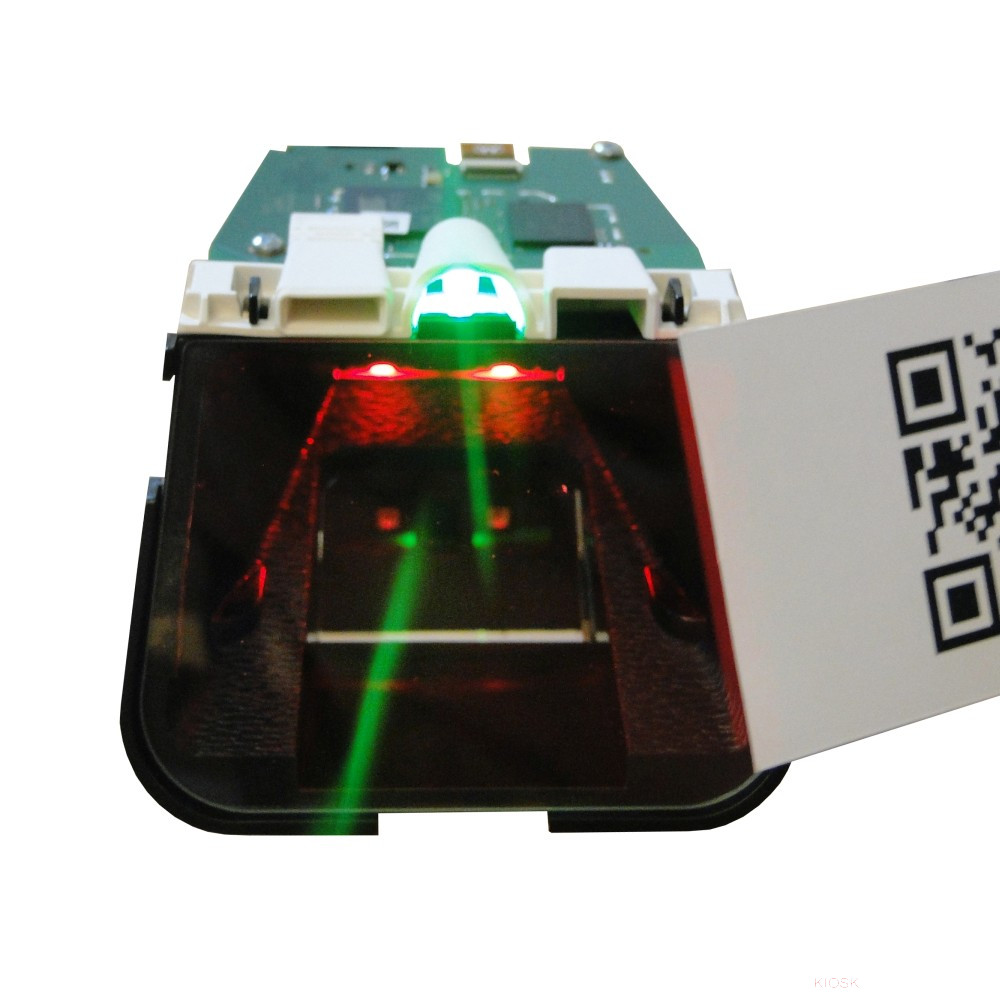

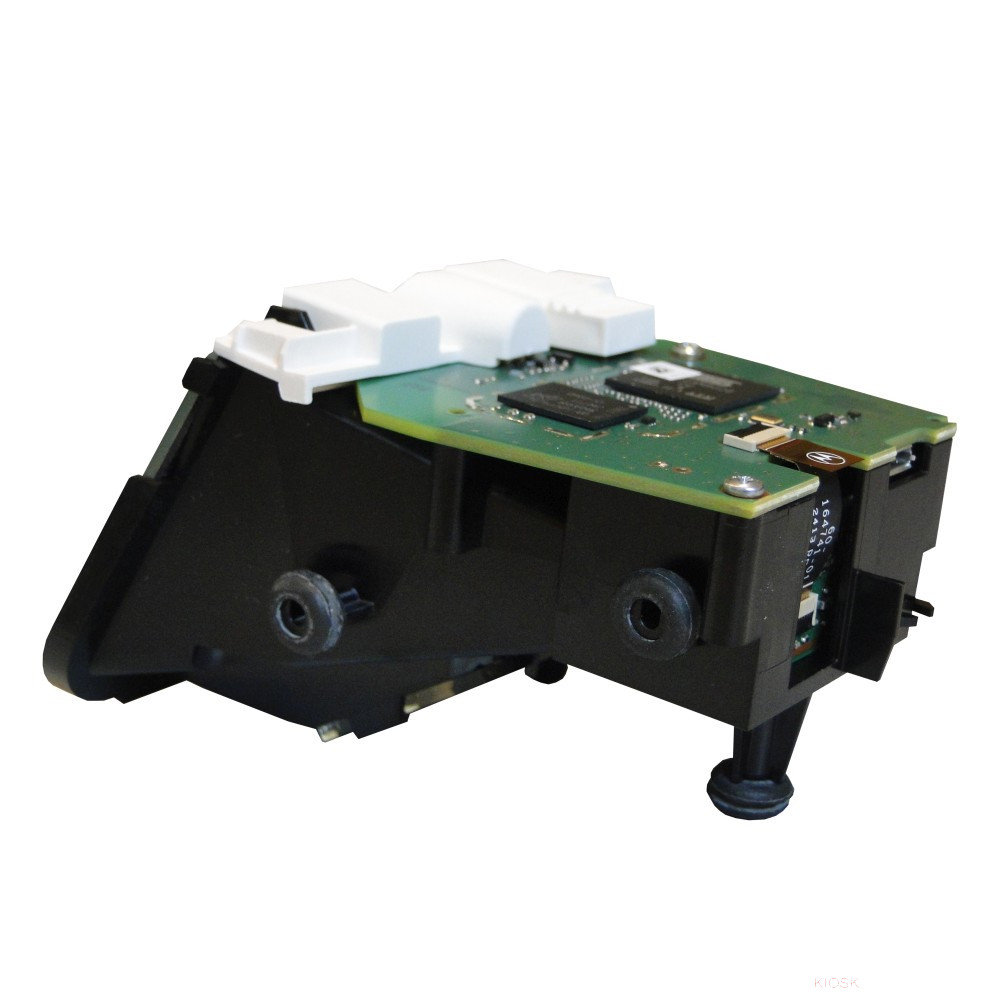

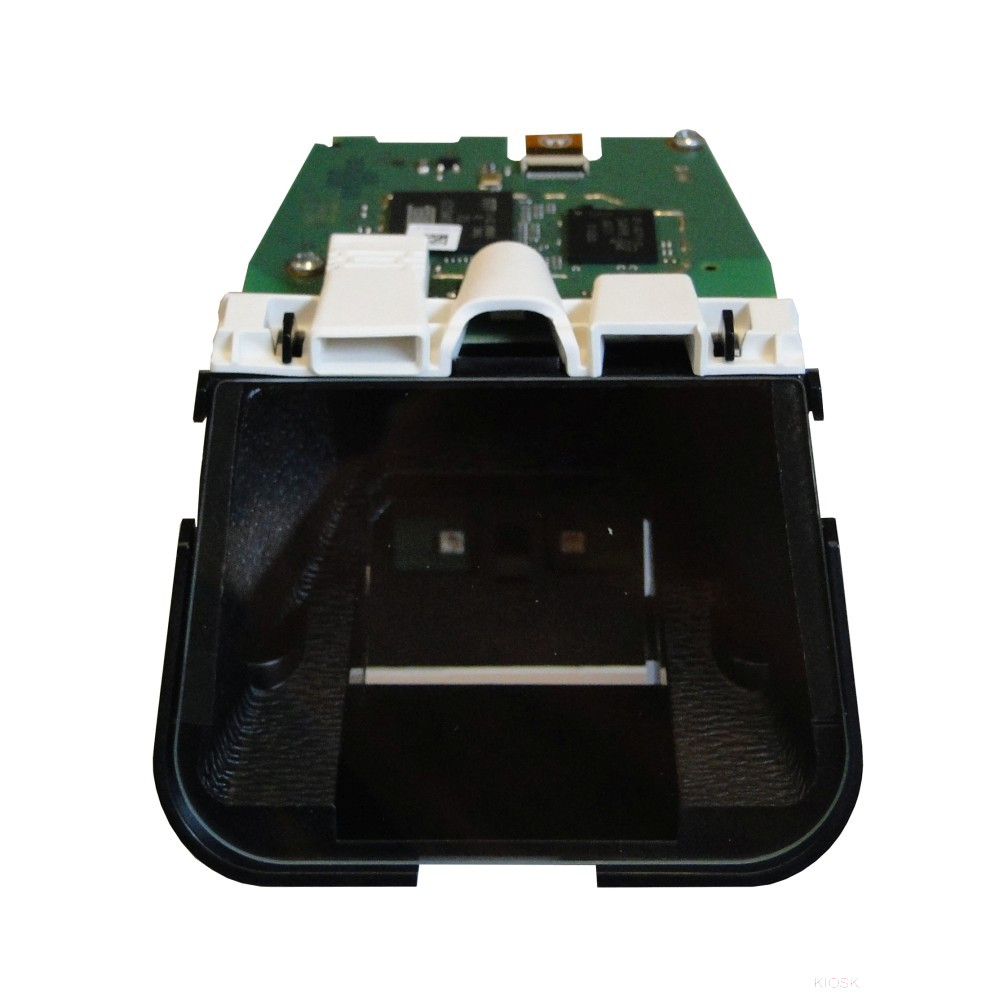

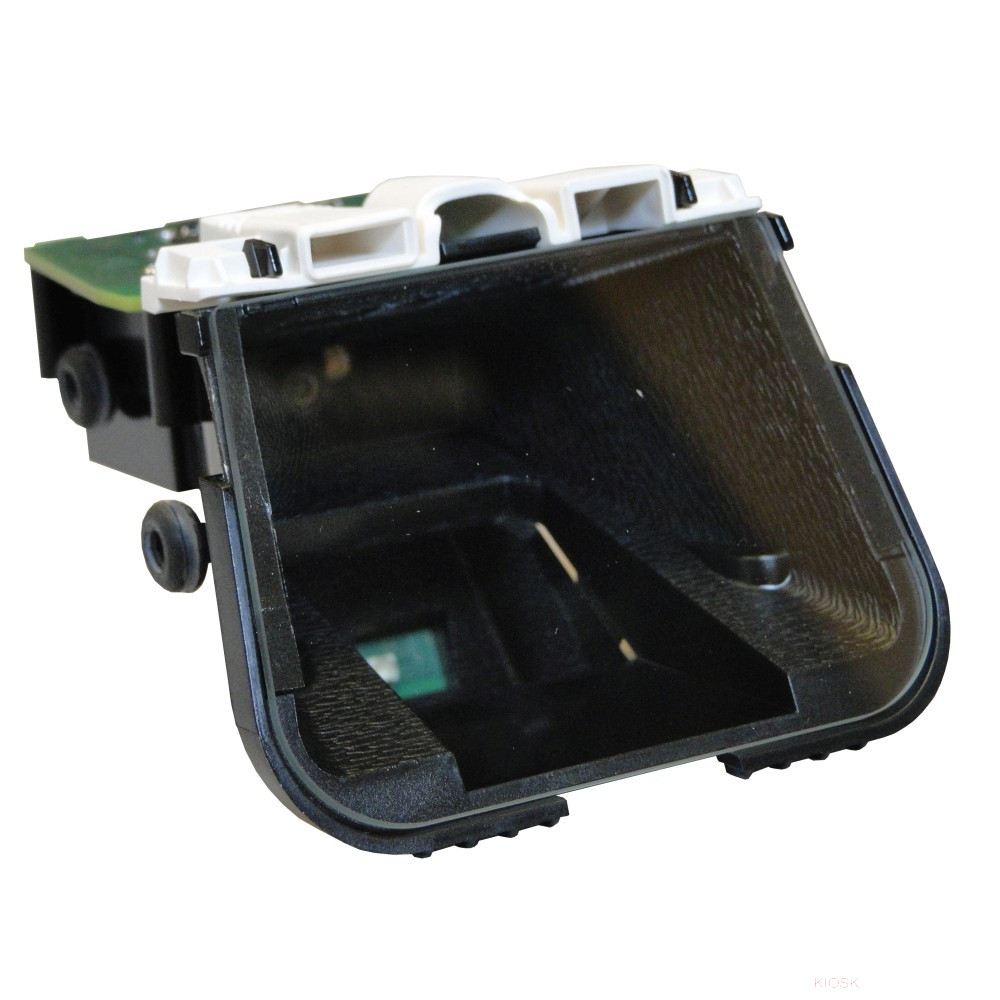

A Motorola SE-3317 beépíthető vonakódolvasó motorja ideális megoldás 1D és 2D vonalkódok olvasására.
USB és RS23 interface-el is rendelhető. Gyors stabil működés és kiváló ár érték arány jellemzi. A vonalkódolvasásban elismert márka, a Motorloa Inc. magas minőségű terméke.
Felhasználási területek:
Árellenőrzés, azonosítás, ratározás, árunyilvántartás.
SPECifiCaTiOnS
PHySiCal CHaRaCTERiSTiCS
Dimensions 2.42 in. H x 3.09 in. W x 3.82in. D
61.3mmHx78.4mmWx96.9mmD
Weight 2.45oz./70grams

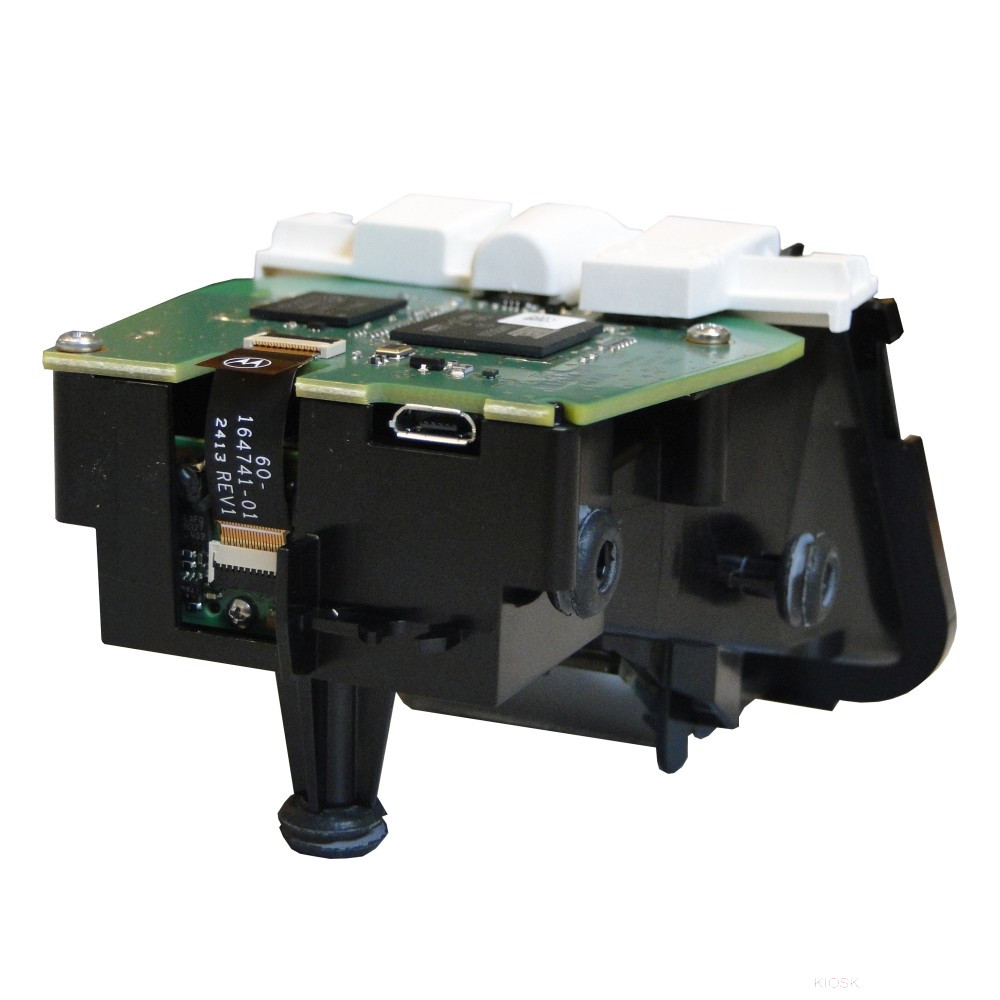

Interface MicroUSB-B
PERfORManCECHaRaCTERiSTiCS
Sensorresolution WideVGa:752H x480V pixels
GrayScale: 256 levels (8bits per pixel)
FocusingDistance 4.5in./11.5cmfromfrontofengine
FieldofView 35.4°horizontal,32.4°vertical
angular tolerance Skew:±60°;Pitch:±60°;roll:360°
aiminglED DotopticalPower:0.19mWtypical
Illumination 625±5nm(dominantwavelength)Pattern angle 60°x40°at80%centerintensity
opticalresolutions 4.0mil(Code39),5.0mil(PDF417), 7.5mil(DataMatrix)
ambientlight 8000ft.candles(86,100lux)
Power operating voltage:5VDC±0.5Voperatingcurrent(Idle):180mapeak,
operatingcurrent(Decoding):450ma peak,250ma average
Shockrating* 250G applied via PCB clamped tos hock
plateat73.4°F/23°Cforaperiodof
1.75±2.5msec(allthreeaxesin+and-)
Vibrationrating* UnpoweredSE3317-Wawithstandsa
standardPoSrandom vibrationalongeachof the X, Y, and Z axes for a period of onehourperaxis,appliedviaPCBclampedtoshockplate,definedasfollows:
20Hzto2KHzat0.02G2/Hz
barCode Specifications | nearDistance Typical | farDistance Typical |
UPCa,13.0mil,80%MrD | Contactread | 9.55 in./24.26 cm |
PDF417,6.67mil,80% MrD | Contactread | 2.75in./6.99cm |
Code128,15.0mil,80%MrD | Contactread | 7.5 in./19.05cm |
•Distancesaremeasured startingat2inchesforwardthe center axis ofthefrontgrommetdowelsonthe modulechassis.
•Decoderanges aretested using photographic quality bar codes, pitch 20 ±1° withrespecttoopticalaxis.
•Barcodesurfacesshouldbeilluminatedatambientlightof>15ft.cd.
•allUPCsreadsecuritylevel=1.
lEDSafetyClass IECClass1M
ESD ±2kV@connector
Dimensions 2.42 in. H x 3.09 in. W x 3.82in. D
61.3mmHx78.4mmWx96.9mmD
Weight 2.45oz./70grams
