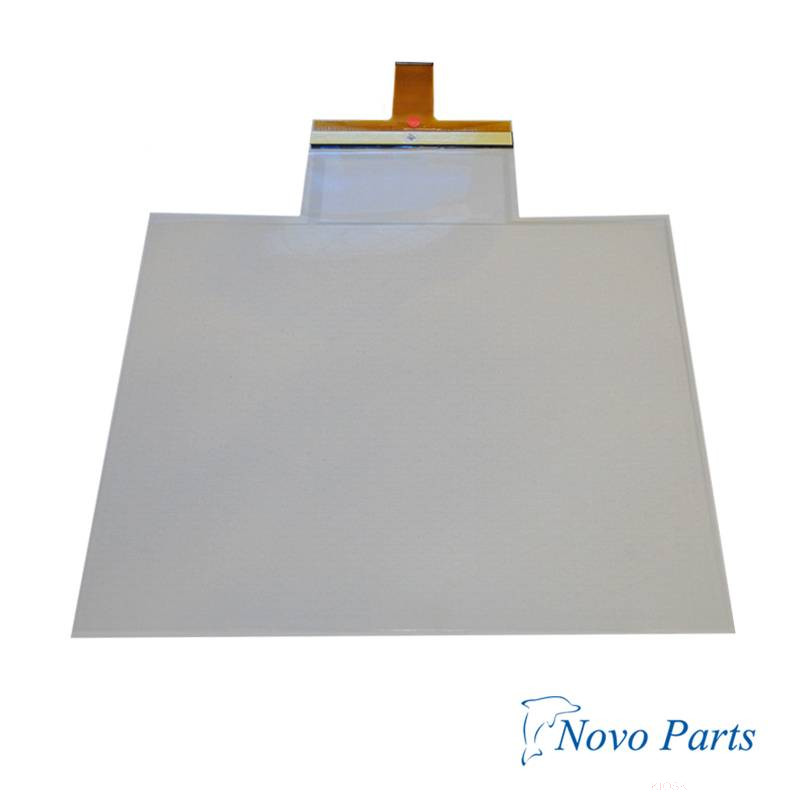

17" Projected kapacitív fólia. Egyedi kialakítású érintőszenzorokhoz.
| Teljesen átlátszó | |
| Alacsony fogyasztás, hosszú élettartam | |
| USB interface | |
| 4:3 - 8:3 - 16:9 - 21:9 képarányokhoz | |
| Kesztyűben is használható | |
| 2 pontos multitouch | |
| CE, FCC, ROHS tanusítvány | |
| | |
| | |
| Available sizes | 17'' 19'' 22'' 24'' 27'' 30'' 32'' 37'' 40'' 42'' 46'' 50'' 52'' 55'' 57'' 60'' 62'' 67'' 70'' 72'' 74'' 80'' 84'' 90'' 92'' 94'' 100'' 112'' 114'' 115'' 120' |
| | |
| Induction method | The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix |
| Touch size | 17"~94"(4:3) or 17"~120"(16:9) can be customized |
| Paste way | Removable Imperial or permanent paste |
| Touch accuracy | No drift, the deviation is about 1~3mm |
| Calibration way | software calibration |
| The number of wires | Nano-wires 40 Road / Road 64/128 |
| Induction thickness (penetration) | Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm |
| Scanning frequency | 60Hz~130hz |
| Output way | USB 2.0 (HID public interface to USB Mini B interface) |
| Compatibility | WIN2000/WINXP/WIN7/WIN8/Linux/Mac/android4.0 etc. |
| Touch functionality | Mouse function, multi-point (2) touch support TUIO and Windows Native |
| Temperature range | -20°C~60°C |
| Humidity range | 0% RH to 95% RH (without condensation neighborhood) |
| Transmittance | ＞93% |
| Power consumption | Max 0.5W |
| Product Certification | CE,FCC,ROHS |
| EMC | EN61000-6-1：2007 EN61000-6-3：2007+A1：2011 |
