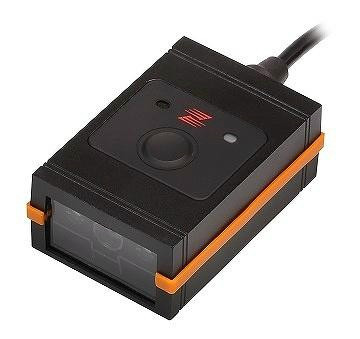

1D/2D "high durable" barcode scanner. 0-50°C USB

Item number:

Z-5652U

1D/2D "high durable" barcode scanner. 0-50°C USB

Item number:

Z-5652U

ZEBEX Z-5652U embedded 2D barcode scan module for kiosks
The ZEBEX Z-5652U is a compact 1D/2D image scan module designed for integration into kiosks, self-service terminals and embedded industrial systems.
Its 1280 × 800 pixel sensor and depth of field of around 55–150 mm for 5 mil Code 39 deliver fast, accurate decoding even on small, dense barcodes.
USB and RS-232 interfaces, 5 V DC power input and a 0–50 °C operating temperature range simplify integration in retail, healthcare and light industrial applications.
The module reliably reads QR codes and barcodes from smartphone screens, making it ideal for ticketing, customer identification and modern, digital customer journeys

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available to order

Details
Data

Details

ZEBEX Z-5652U 2D embedded barcode scan module with USB interface

The Zebex Z-5652U is a high-performance 2D image barcode scan module designed for integration into kiosks, self-service terminals, information points and a wide range of embedded systems. Thanks to its compact footprint, USB and RS-232 host interfaces and powerful engine optimized for 1D and 2D barcodes, it is an ideal choice wherever fast, reliable barcode capture is required around the clock.

Key features and benefits

Advanced 2D imaging engine capable of decoding most common 1D and 2D barcodes quickly and accurately, even when they are poorly printed or slightly damaged.
Excellent reading performance on barcodes displayed on smartphone, tablet or computer screens, making it perfect for mobile tickets, coupons and digital IDs.
Exceptional motion tolerance and 360° rotational sensitivity that allow users to present items naturally without precise positioning.
Compact, easy-to-mount design that fits neatly into kiosk front panels, industrial control cabinets and small enclosures.
Two-colour (blue/red) LED status indicator and programmable beeper to provide clear user feedback in noisy environments.

Optical performance and decoding capability

Image sensor: 1.0 megapixel CMOS with 1280 × 800 pixel optical system for sharp, high-contrast images of barcodes.
Depth of field: approximately 55–150 mm for 5 mil Code 39 and around 45–265 mm for 13 mil EAN-13 symbols, depending on label quality and ambient light.
Minimum bar width: 4–5 mil (Code 39), allowing reliable reading of very small barcodes on compact labels and product tags.
Scan angle: about 38–44° horizontal and 24–29° vertical field of view to support flexible positioning in different kiosk designs.
Print contrast: typically 30% for UPC/EAN 100%, so labels with reduced contrast remain readable in real-life applications.
Wide symbol support for 1D and 2D codes including UPC/EAN, Code 39, Code 128, GS1 DataBar, QR Code, Data Matrix, PDF417 and many others.

Interfaces, power and environmental ratings

System interfaces: USB and RS-232, which simplify integration with PC-based kiosks, embedded controllers and POS systems.
Input voltage: 5 V DC ±5% with a typical operating current of about 280 mA, allowing the module to be powered directly from most host systems.
Operating temperature: 0–50 °C, making the scanner suitable for indoor retail, office, medical and light industrial environments.
Humidity range: 5–95% RH non-condensing so the device can handle changing ambient conditions without performance degradation.
Mechanical durability: designed to withstand drops from up to 1.5 m, which ensures long service life in high-traffic installations.
Lightweight construction with a typical weight of around 110 g and a standard 2 m straight cable for easy cable routing.

Typical applications

Self-service kiosks and information terminals where customers scan tickets, queue numbers, loyalty cards or QR codes.
Retail POS and checkout systems for fast item identification, loyalty program handling and coupon validation.
Healthcare solutions such as patient identification, medication tracking and sample management using GS1-based labels.
Gaming and lottery terminals, access control gates, parking and ticketing machines that require continuous, unattended operation.
Industrial automation, production line tracking and packaging verification where compact integration and reliable decoding are mandatory.

FAQ – ZEBEX Z-5652U scan module

Which barcode types can the Z-5652U read?

The module supports most commonly used 1D and 2D symbologies, including UPC/EAN, Code 39, Code 128, GS1 DataBar, QR Code, Data Matrix and PDF417.
Can it read barcodes from smartphone screens?

Yes, the imaging engine is optimized for reading barcodes from backlit displays such as smartphones, tablets and other electronic screens.
What interfaces are available for system integration?

The Z-5652U offers both USB and RS-232 interfaces, making it easy to connect to PCs, kiosks, embedded controllers and POS terminals.
In which environments is the module recommended?

With its 0–50 °C operating temperature range and broad humidity tolerance, it is well suited for retail stores, offices, hospitals and light industrial sites.
How robust is the device in daily use?

The unit is engineered to withstand drops from up to 1.5 m, providing dependable operation in busy, high-usage installations.

Data

Weight:

168 g/pcs
