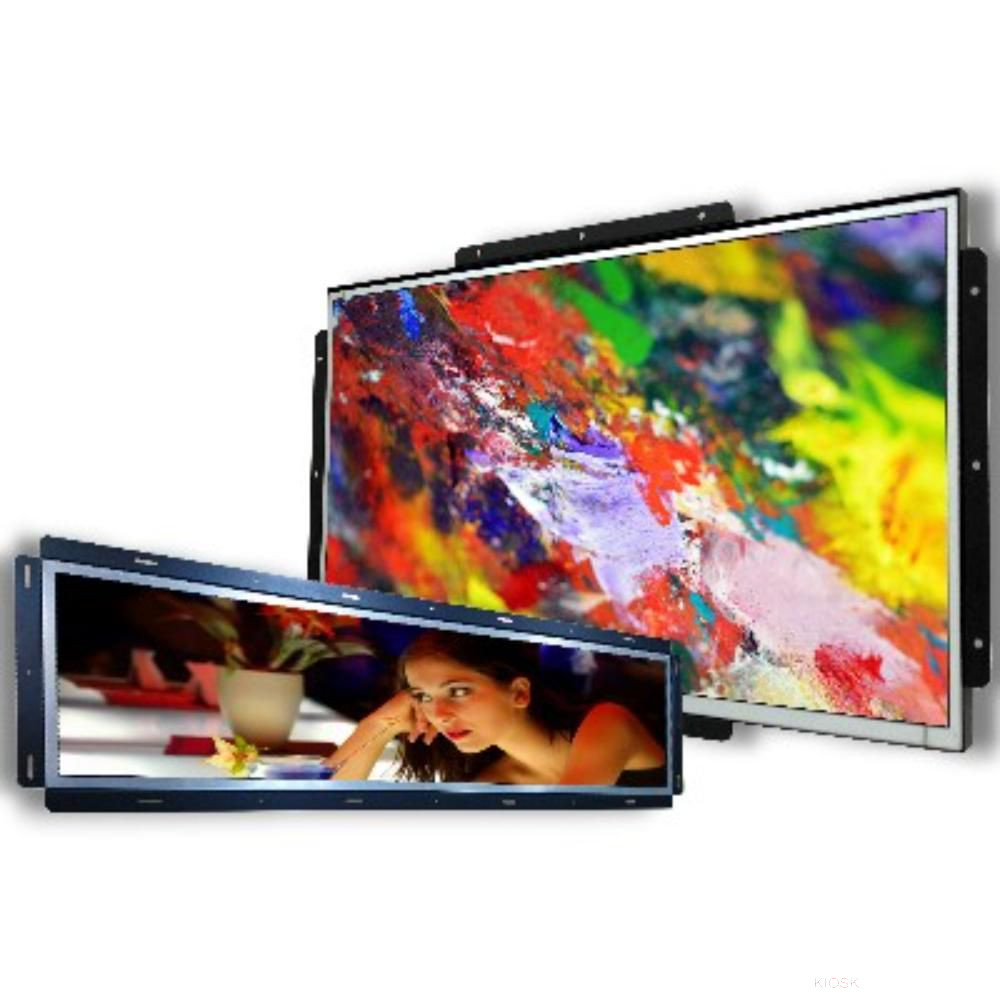

AGL 21,5" high brightness open frame display, 2500 nit

Item number:

VO22B631-A200

AGL 21,5" high brightness open frame display, 2500 nit

Item number:

VO22B631-A200

AGL 21,5" high brightness 2500nit) dsipaly with AC adaptor.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available to order

Details
Data

Details


21.5" LCD support 1920x1080 FHD resolution
2500 nits high brightness LCD applied
High Tni LCD applied for outdoor applications
Video signal IO: VGA / DVI / HDMI
Special 24/7 long term operation design
Extremely wide 178/ 178 view angle
Auto brightness & temperature smart control
Built in RS232 command control port

Function	Items		Description	Remark
Display	Display area (mm)		476.64 (H) x 268.11 (V)	21.5" 16:9 diagonal
	Brightness (nits)		2500
	Optimum resolution		1920 x 1080
	Contrast Ratio		1000:01:00
	View angle (W /H)		178 / 178 degree	All direction
	Backlight Life		50,000 hours (typ.)
System	Video input		VGA / DVI / HDMI	Video signal auto detection
	Video output		N/A
	Audio output	Built in	(Option)	2WR/L
		Extend	N/A
	Memory		N/A
	Storage		N/A
	Ethernet		N/A
	Wireless		N/A
Cover glass	Type		N/A
/Touch panel	Protection glass		N/A
	Support OS		N/A
Special Control	Manual		N/A
	OSD		5 keys
	RS232		Yes
Power	Power Input voltage		DC 24V	DC Jack: Φ5,5mm ( ) /ψ2.5mm (+)
	Consumption(W)		80 (typ.)
Mechanical	Outline (mm)		526.3 x 320.7 x 48.6 (D)	100x100mm VESA
	Mounting		Ear mounting
	Weight (TBD)
Environment	Operating temp.		- 15 - 50 ℃	TFT surface 80 ℃
	Storage temperature		-20 - 60 ℃
	IP protection		IP protection N/A
	Anti vandal		Anti vandal N/A
	Auto brightness		Yes, external sensor cable	(option) waterproof sensor housing
	Outdoor visibility enhance		(Option)
	Direct sunlight		Yes
	Certification		CE / FCC

Data

ÜZEMELÉSI KÖRÜLMÉNYEK:

KÜLTÉR -20 - 50°C

FELHASZNÁLÁSI TERÜLET:

UTASTÁJÉKOZTATÁS

GYÁRTÓ KIOSK:

AGL

KIALAKÍTÁS:

OPEN FRAME

AKTÍV TERÜLET:

19,5"-24"

LCD INTERFACE:

HDMI

Weight:

4.8 kg/pcs
