Money Changer machine with 1 coin dispenser unit

NP Smart Change One money changer single hopper for car washes

The NPSMARTCHANGEONE model, NP Smart Change One, is a single-hopper money changer designed to convert banknotes into coins or tokens. Thanks to its modern central controller and flexible software, the Smart Change family can be configured in 1- or 2-hopper versions with capacities up to 3000 coins, and can support several exchange modes: notes to coins, notes and coins to coins or tokens. An ICT XBA bill validator with lockable bill stacker handles approximately 400–900 notes, offering outdoor-grade robustness for demanding applications. The machine uses a CCTALK interface, recirculation operation and is optimised for indoor environments (around 10–40°C), making it particularly suitable for cash handling in self-service car washes and similar sites. Front-door access, multi-point door locking and appropriate IP protection together provide strong physical security and convenient on-site servicing for operators.

Design, security and operating environment

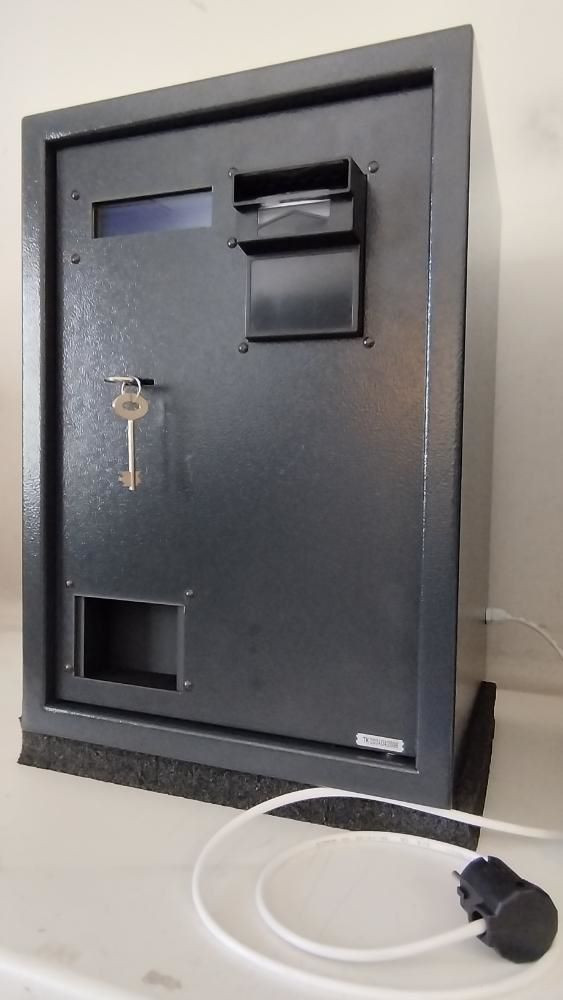

• Single-hopper change machine weighing around 32 kg, built in a robust metal cabinet for demanding use.
• Front door access with a two-point locking system protects cash and electronics against unauthorised access.
• Designed to meet approximately IP45 protection, supporting operation in harsh self-service environments.
• Recommended for indoor, covered locations in the 10–40°C temperature range with adequate ventilation and dry placement.
• Can be installed as wall-mounted, pedestal-mounted or built-in unit, adapting to different layouts and architectural constraints.
• CCTALK communication interface enables straightforward integration into existing controller systems and payment platforms.

Bill and coin handling with flexible exchange modes

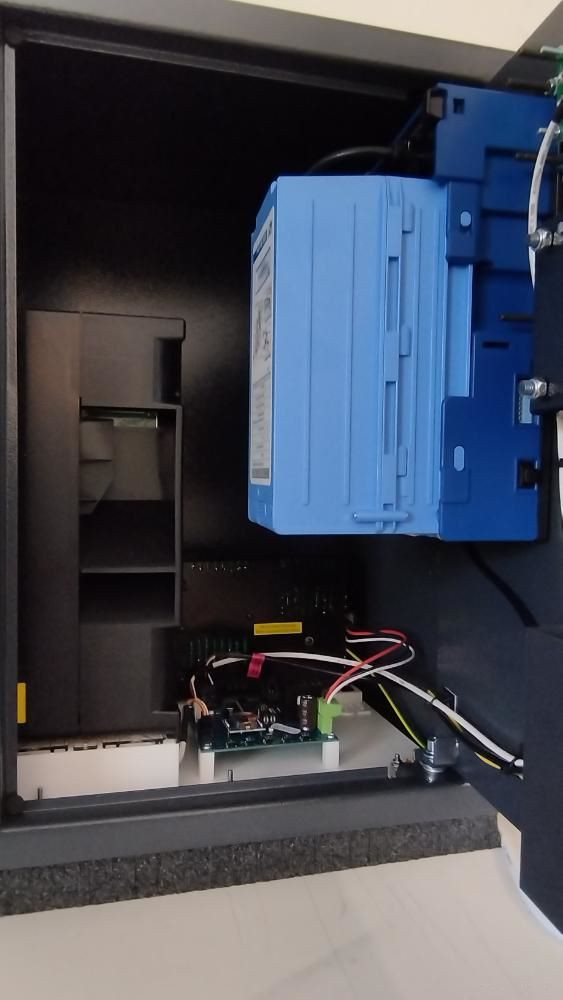

• ICT XBA bill validator with up to about 98% acceptance rate for in-circulation notes, widely used in professional self-service applications.
• Lockable bill stacker with a capacity of roughly 400–900 banknotes depending on configuration and note thickness.
• Coin hopper capacity around 1000 coins in the single-hopper version, while larger family members can reach up to 3000 coins.
• Recirculation mode keeps coins and notes within the system, optimising float levels and reducing refill frequency and service visits.
• Multiple configurable exchange modes: notes to coins, notes and coins to coins or tokens, tailored to different business models.
• Optional cashless RFID module and POS terminal integration allow smooth migration towards hybrid cash and card payment solutions.

User interface, display and operator functions

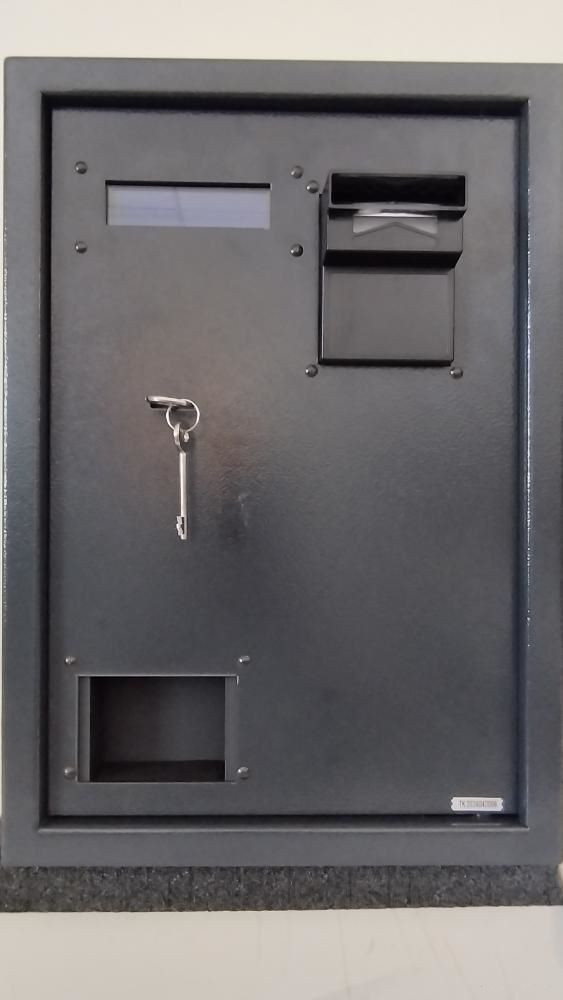

• Front display guides the customer through the payment process, showing inserted amount, dispensed coins and key status messages.
• In the event of a coin jam, the hopper can automatically restart and error messages are shown to support quick problem identification.
• When coin or token levels drop below a minimum threshold, the machine may stop accepting notes to prevent incomplete payouts.
• A configurable bonus system enables promotional payout schemes, such as extra tokens for higher-value notes, increasing customer loyalty.
• An optional GSM module can send SMS alerts to a predefined phone number when token or coin levels fall below minimum.
• Internal counters and meters support reconciliation, performance monitoring and preventive maintenance planning for operators.

Typical applications and benefits

• Self-service car washes where notes need to be exchanged into tokens or coins used to start wash bays and vacuum units.
• Amusement and arcade venues where game machines operate with coins or tokens and demand reliable change machines.
• Parking facilities converting banknotes into a single coin denomination to feed ticket machines or pay-on-foot stations.
• Petrol stations, retail sites and service locations that still use cash extensively and benefit from automated change management.
• Projects that require flexible configuration, scalability, optional GSM and cashless functions and long-term, cost-effective operation.

FAQ – NP Smart Change One money changer

• What exchange modes are supported by the NP Smart Change One machine?

  Depending on configuration, the unit can exchange notes to coins, or notes and coins to coins or tokens, making it suitable for car washes, amusement sites and parking systems.
• What are the typical bill and coin capacities of the changer?

  The ICT XBA bill validator with lockable stacker can hold roughly 400–900 notes, while the coin hopper in the single-hopper version stores about 1000 coins, with larger models reaching up to 3000 coins.
• In what environment should the NPSMARTCHANGEONE be installed?

  It is recommended for indoor, covered locations such as car wash bays, game rooms or retail areas, operating in an approximate 10–40°C temperature range.
• Can promotional or bonus payout schemes be configured?

  Yes, the built-in bonus system allows you to offer additional coins or tokens for higher-value banknotes, encouraging customers to exchange larger amounts.
• How do the GSM module and display help operators manage the system?

  The front display makes each transaction transparent for users and shows error messages, while the optional GSM module sends SMS alerts when coin or token levels are low, reducing the risk of unexpected downtime.
