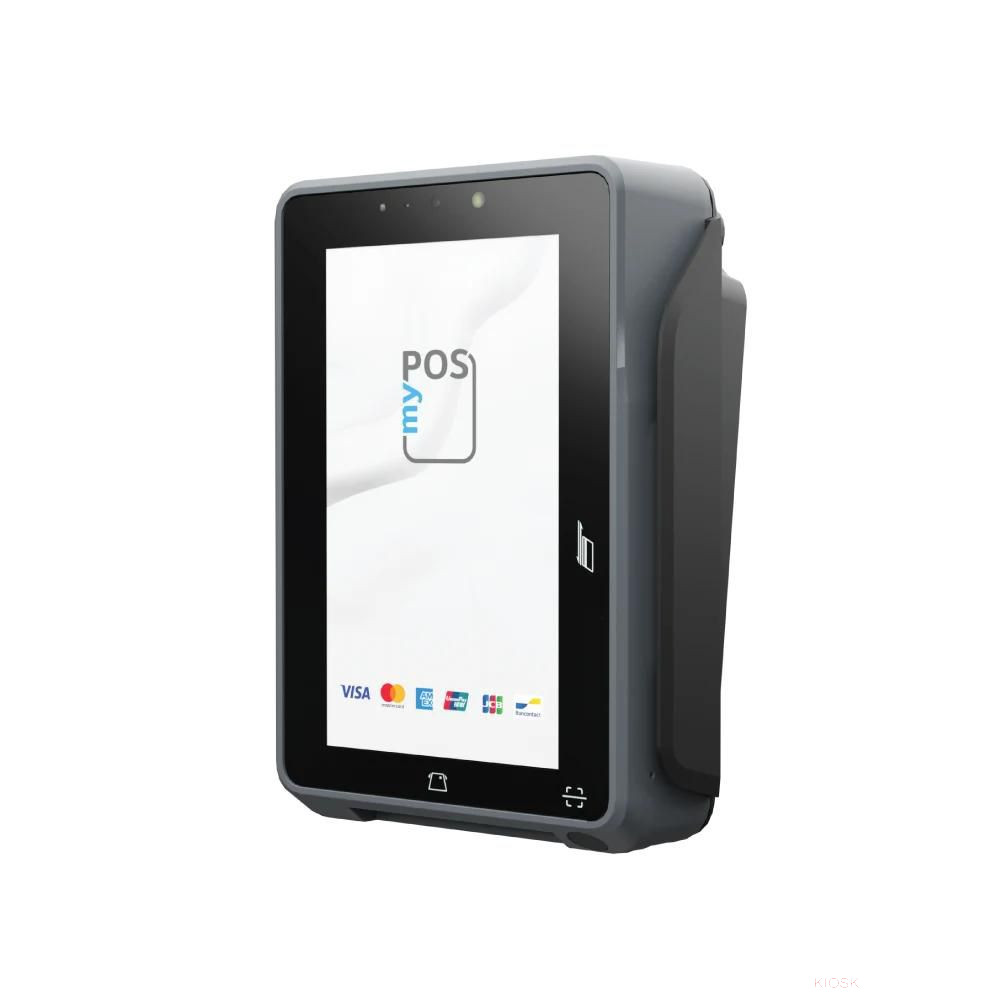

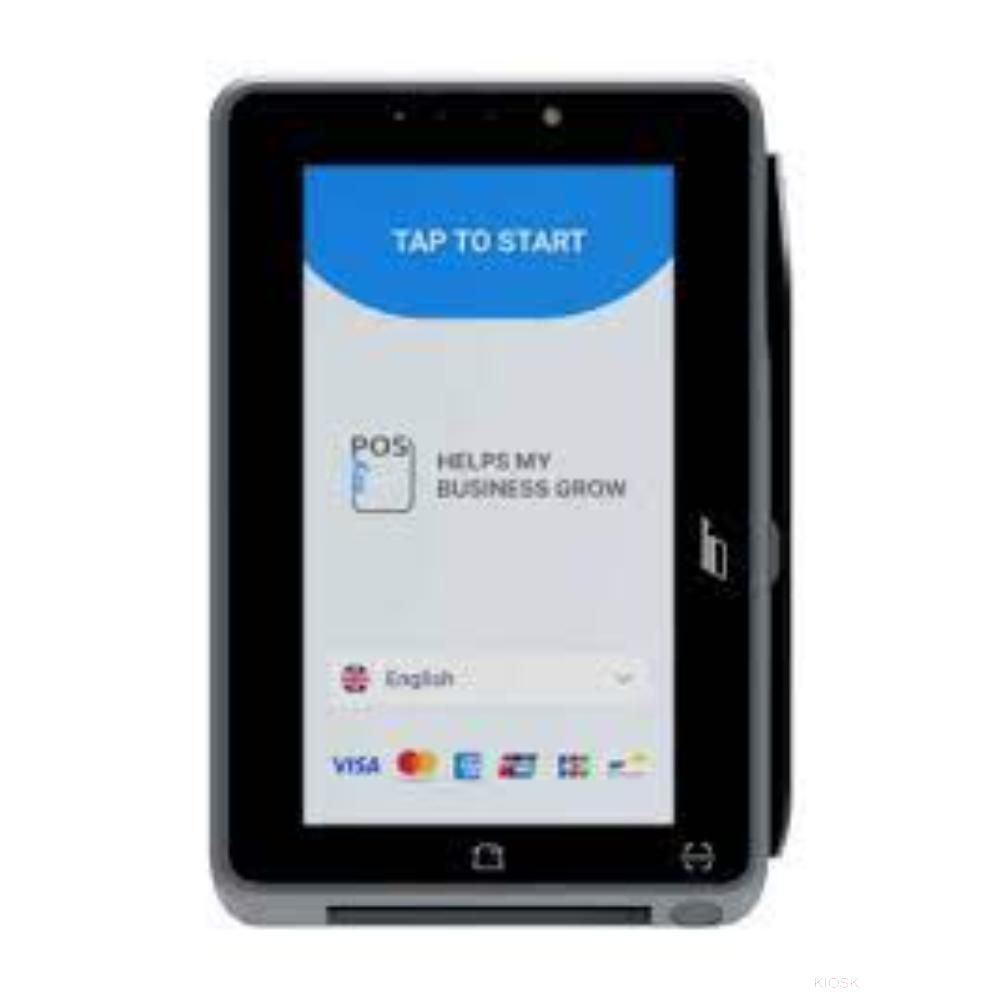

SMX PARAFAIT contacless bank card reader with touch screen, MDB with SIM card

Name: SMX PARAFAIT contacless bank card reader with touch screen, MDB with SIM card
SKU: MyPOS_UNATT
Availability: InStock

Item number:

MyPOS_UNATT

SMX PARAFAIT contacless bank card reader with touch screen, MDB with SIM card

SMX PARAFAIT contacless bank card reader with touch screen, MDB with SIM card

Item number:

MyPOS_UNATT

Érintőképernős Bankkártya olvasó terminál. - MDB, Pulse, RS232 kommunikáció , Érintő képernyő. A Termék eredeti csomagolása nem tartalmaz Kábel szettet

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available to order

Details
Data

Details

VPOS Terminal

Give your customers the flexibility to pay any way they choose. VPOS provides an all-in-one solution for magnetic swipe, contact, and contactless operations for unattended automated machines. A universally certified solution, VPOS utilizes the latest technology so cashless vending machine operators are able to accept all forms of payment with the added benefits of easy installation, clearance, monitoring, and management.

Features

Part of a Complete Cashless Payment

Communicate with your Consumers

Plug and Play

Telemetry and tracking options

Supported Payment Schemes

Contact Card: EMV Level 1 + Level 2 – Certified

Contactless: EMV Level 1 – Certified

Contactless: EMV Level 2:

– Visa PayWave MSD + qVSDC

– MasterCard PayPass Mag Stripe

Magnetic Stripe Card – ISO7811, Track 1 + Track 2

Other Cards Supported: NFC, MIFARE, HID-iClass

Support of Payment Applications – Global and Local Environment

Physical Dimensions

H – 4.13” – 105mm

W – 3.31” – 84mm

D – 1.9” – 48.3mm

Weight – 8.11 ounces – 230 grams

Technical Information

Interface communication – RS232 up to 115,200 kbps

2 X 16 Character LCD display + 4 LEDs + Buzzer + Speaker

Transaction start/end button

Power Supply: 8 Volt DC – 16 Volt DC

Security – Support of DES, 3DES, AES, RSA, SHA1 algorithms

On-board SAM: EMV/HID support

RF contactless Interface: Frequency – 13.56 MHz, MIFARE, NFC, HID

Regulatory Compliance

EMVco Level 1 + Level 2

CE + FCC + RoHS

Operating Conditions

Temperature – -30°C – 50°C – -22°F – 122°F

Humidity – 5% – 95% (non-condensing)

Storage Conditions

Temperature – -40°C – 60°C – -40°F – 140°F

Humidity – 5% – 95% (non-condensing)

Standards

ISO 7816 Contact Smart Card, approved by EMVco

ISO 14443 Type A and B, approved by EMVco

ISO 15693

Data

ADAT INTERFACE:

MDB

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

ÁRUSÍTÓ AUTOMATÁK

MŰVELET:

ELFOGADÁS

GYÁRTÓ KIOSK:

EGYÉB

KIALAKÍTÁS:

BEÉPÍTHETŐ
