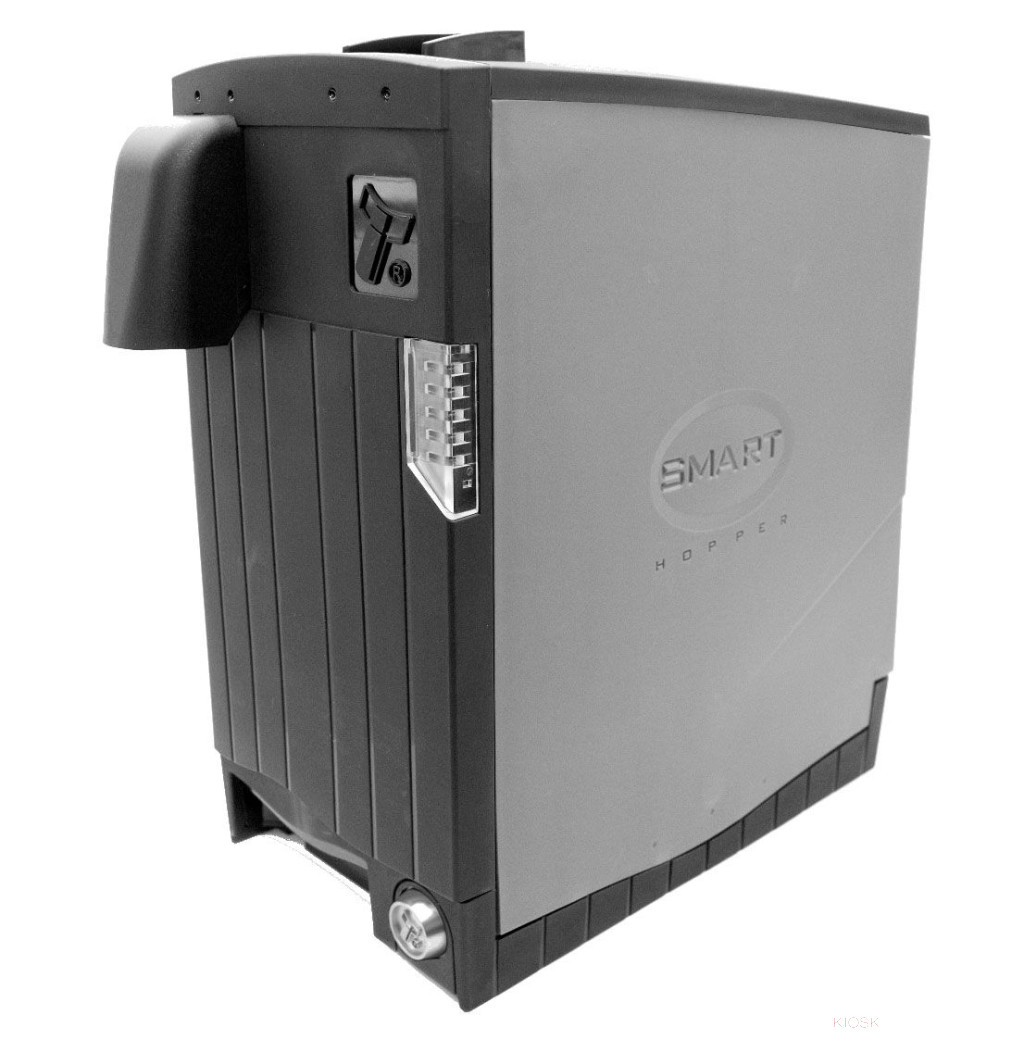

Smart Hopper, coin payout

What are the technical characteristics of the Smart Hopper, coin payout (ITLSMARTHOSTE)?

• capacity: 1500 coins (≈ €1 size)
• payout speed: 12 coins per second
• dimensions: 280×230×134 mm
• weight: 2.4 kg empty / 13.7 kg full (listed: 3.36 kg/pcs)
• power: 24 V DC
• protocol: eSSP
• data interface: ccTalk
• integration: USB on board
• coin range: 18–28.5 mm diameter, 1.65–3.2 mm thickness
• operating conditions: indoor 10–40°C
• typical use: payment terminal
• operation: recycling

Why use a multi-coin payout unit instead of traditional single-coin hoppers?

A multi-coin payout unit helps you keep the right denominations available for change while routing unwanted coins straight to the cashbox. The host machine sets the payout selection and the desired float level, so you can reduce internal complexity and avoid stacking several separate hoppers and sorting steps. The Smart Hopper, coin payout (ITLSMARTHOSTE) supports an optimized payout selection approach and a higher payout position, which can simplify mechanical design and improve the user handover point.

Selection criteria

• coin set and denomination mix: match the dataset and the 18–28.5 mm / 1.65–3.2 mm range
• peak throughput: is 12 coins per second sufficient for your busiest time window
• service cycle and capacity: float strategy, cashbox routing and 1500-coin capacity
• integration: ccTalk control plus on-board USB for configuration and diagnostics
• power and space: 24 V DC supply stability, 280×230×134 mm installation envelope
• security: lockable unit, mounting method, exit sensing and access control

Which features support stable payout performance?

• akadálymentes, nagy sebességű kiadás
• zárható, biztonságos egység a host géphez rögzíthető kivitelben
• közvetlen kommunikáció az érmeelfogadóval, a host csak a hopperrel kommunikál
• érmeosztályozó igény csökkentése
• optimalizált „best deal” kiadásválasztás
• biztonsági kimeneti szenzor

Where does the Smart Hopper, coin payout (ITLSMARTHOSTE) fit best?

• automatikus visszajáró tranzakciók
• játék és szórakoztató rendszerek
• önkiszolgáló és retail fizetési pontok
• vending rendszerek
• parkolás, jegykiadás

Quality, local technical support and commercial options

Uptime depends on correct operating conditions and a planned maintenance routine. Keep operation within indoor 10–40°c, schedule cleaning around the coin path and sensors, and verify mechanical fastening and cabling. For project rollouts, supply and payment terms can be just as important as the technical fit.

• local technical support and servicing for faster fault isolation
• planned preventive maintenance: cleaning and inspection routines aligned to traffic
• local stock and timed deliveries aligned to installation waves
• shipping choices, customs clearance and freight forwarding for project logistics
• post-payment options and foreign currency invoicing for budget planning
• project-based quotations and quantity conditions for complete bill-of-materials planning

CTA

Add coin acceptance, cashbox, interface and service items that may be useful beyond your current project to your interest list (cart), then send the complete list at the end of your visit. This helps you get a project-tailored quotation faster and keeps technical and logistics alignment in one place.
