Smart Hopper, coin payout - KIOSK.NOVOPARTS.HU

Name: Smart Hopper, coin payout
SKU: ITLSMARTHOSTA
Availability: InStock

Smart Hopper, coin payout

Item number:

ITLSMARTHOSTA

Smart Hopper, coin payout

Item number:

ITLSMARTHOSTA

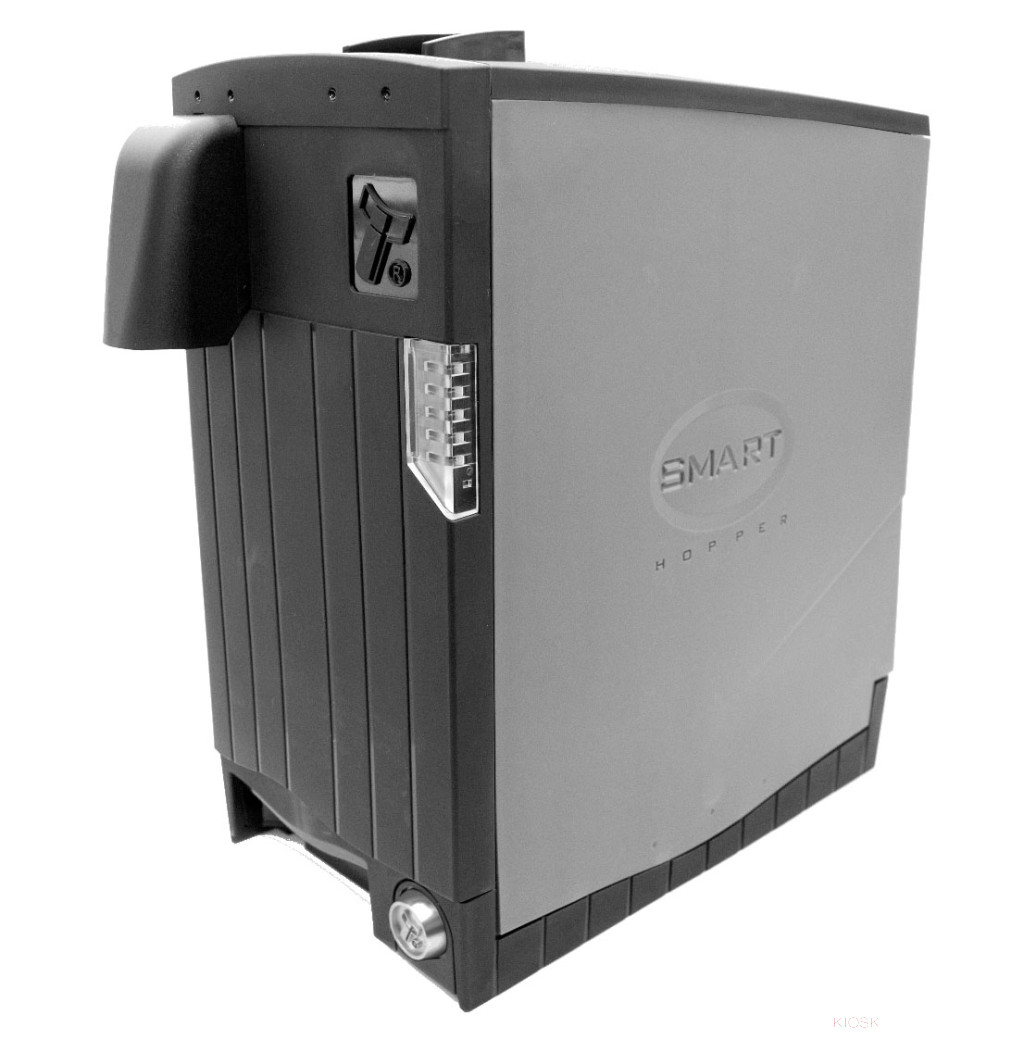

Smart Hopper Advanced coin payout (ITLSMARTHOSTA) multi-coin payout and recycling
The Smart Hopper Advanced coin payout (ITLSMARTHOSTA) is an advanced coin payout and recycling unit designed for high-traffic payment systems handling multiple denominations. The controller defines which coins remain available for payout, while others are automatically routed to the collection unit. With up to 12 coins per second, 24 V DC supply and ccTalk communication, it is a solid choice when predictable, fast and scalable coin handling is required.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available to order

Details
Data

Details

What are the technical characteristics of the Smart Hopper Advanced coin payout (ITLSMARTHOSTA)?

capacity: up to 1500 coins (≈ €1 size)
payout speed: up to 12 coins per second
dimensions: 280×230×134 mm
weight: approx. 2.4 kg empty / 13+ kg full
power supply: 24 V DC
protocol support: eSSP
communication interface: ccTalk
integration: on-board USB
supported coin range: 18–28.5 mm diameter, 1.65–3.2 mm thickness
operating environment: indoor 10–40°C

Why choose a multi-coin payout and recycling unit?

A multi-coin payout and recycling unit allows your system to keep the required denominations available for change, while automatically routing excess or unwanted coins to the collection unit. This approach improves operational balance, reduces manual intervention and supports consistent transaction times even during peak usage. The Smart Hopper Advanced, coin payout (ITLSMARTHOSTA) acts as a central payout component with stable communication and intelligent coin selection logic.

Selection criteria

coin range and denomination mix compatibility
expected transaction volume and peak load
capacity requirements and service intervals
ccTalk communication and USB-based configuration
installation space and mechanical mounting options
security features and payout exit sensing

Which features support continuous and stable operation?

multi-coin payout with intelligent recycling
optimized payout selection logic for efficient change handling
direct communication with the coin acceptor
reduced need for external coin sorting
secure exit sensor for controlled payout
lockable housing with fixed mounting to the host system

Where does the Smart Hopper Advanced coin payout (ITLSMARTHOSTA) deliver operational value?

self-service payment terminals
ticketing and parking systems
vending and retail automation
entertainment and amusement systems
high-traffic cash-based payment points

Quality, local technical support and commercial options

local technical support and service for faster issue resolution
planned maintenance focused on coin paths and sensors
local stock availability and timed deliveries for project rollouts
flexible shipping options, customs clearance and freight forwarding
post-payment options and foreign currency invoicing
project-based quotations tailored to installation volume

CTA

Add coin acceptors, cashbox solutions and service items that may be useful beyond your current project to your interest list. At the end of your visit, send the complete list to receive a technically and commercially aligned quotation more quickly.
