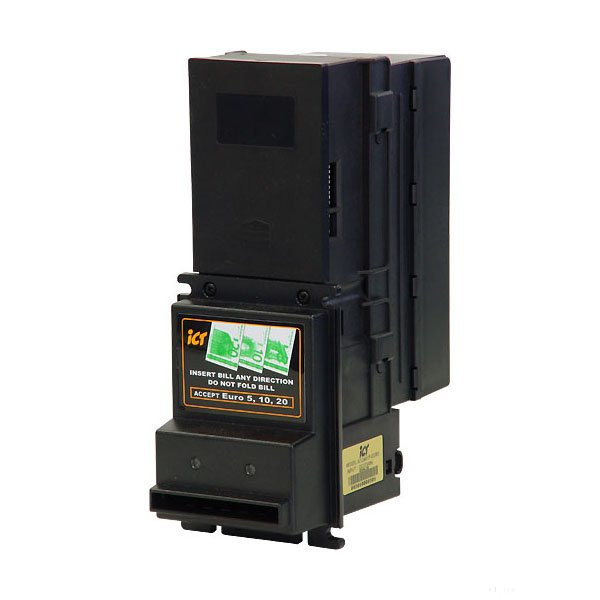

ICT V7 bill acceptor with 400 note stacker

Item number:

ICTV7

ICT V7 bill acceptor with 400 note stacker

Item number:

ICTV7

Bill Acceptor V7 (400 note)
The V7 is an industrial bill acceptor with a lockable 400-note cassette for vending and kiosk applications.
Acceptance rate 96%; accepts 62–78 mm wide notes; interfaces: MDB, Pulse, RS232, ICT protocol.
Power options: 12V / 24V / 34V; typical transaction time ~3s per bill.
Suitable for vending, payment terminals and gaming machines; easy to install and service.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

In stock

Details
Data

Details

Bill Acceptor V7 (400 note stacker)

Overview:
The V7 series is an industrial bill acceptor featuring a high-security module and selectable bill box capacities (100/200/400/800).
Designed for vending, kiosks, payment terminals, gaming machines and medium-traffic cash-handling applications.
Auto-calibrating sensors, four-way bill insertion and easy installation/configuration.

Key technical specifications:
Acceptance rate: typically ≥96% per manufacturer specifications and independent datasheets.
Bill width accepted: typically 62–78 mm (model dependent).
Bill box capacities: 100 / 200 / 400 / 800 available.
Power options: available in 12V DC (11.4–12.6V), 34V DC or 24V AC variants.
Interfaces: Pulse, MDB, ICT protocol, RS232, GPT parallel; some models feature USB for firmware updates (V7P).
Power consumption: depends on model and phase (typical 0.15A–2A range).
Operating temperature: wide range (e.g., -20°C to +65°C for certain configurations).
Weight & dimensions: model dependent; example weight ~1.7 kg for some stacker variants.

Security & reliability:
Lockable note cassettes available (LX7 / V7E) for increased physical security and easier handling.
Front LEDs for status indication; download/update connector (RJ-45 or USB on V7P) for firmware maintenance.
Manufacturer provides service documentation, configuration DIP switch guides and firmware upgrade paths.

Installation & compatibility:
Standard frontal mounting for vending and kiosk installations.
Broad protocol support ensures compatibility with most controller systems (MDB, pulse, RS232, ICT protocol).
Typical transaction speed: ~3 seconds to stack a bill (datasheet figures).

Maintenance & support:
Easy access to cassette and sensors for maintenance; configurable via DIP switches.
Service manuals and installation guides available from the manufacturer; spare parts and interface cables are widely available.
Firmware updates via dedicated connector reduce downtime and keep recognition algorithms up to date.

FAQ

What bill width does the V7 accept? The V7 typically accepts 62–78 mm wide notes, exact range depends on model configuration.
Which interfaces are available? Supported interfaces include Pulse, MDB, ICT protocol, RS232 and some models offer USB for firmware upgrade.
What are the cassette capacities? Available capacities are 100, 200, 400 or 800 notes depending on the chosen configuration.
What power options are there? Available variants: 12V DC, 34V DC and 24V AC; required voltage depends on the purchased model.
How are firmware updates applied? V7P models allow firmware updates via USB or a download connector; refer to manufacturer manual for instructions.

Data

Weight:

1.7 kg/pcs

ICT V7 bill acceptor with 400 note stacker

Bill Acceptor V7 (400 note stacker)

Installation & compatibility:Standard frontal mounting for vending and kiosk installations.Broad protocol support ensures compatibility with most controller systems (MDB, pulse, RS232, ICT protocol).Typical transaction speed: ~3 seconds to stack a bill (datasheet figures).

FAQ

Installation & compatibility:
Standard frontal mounting for vending and kiosk installations.
Broad protocol support ensures compatibility with most controller systems (MDB, pulse, RS232, ICT protocol).
Typical transaction speed: ~3 seconds to stack a bill (datasheet figures).
