What are the key technical features of the ICT DCM5 document age verification reader?

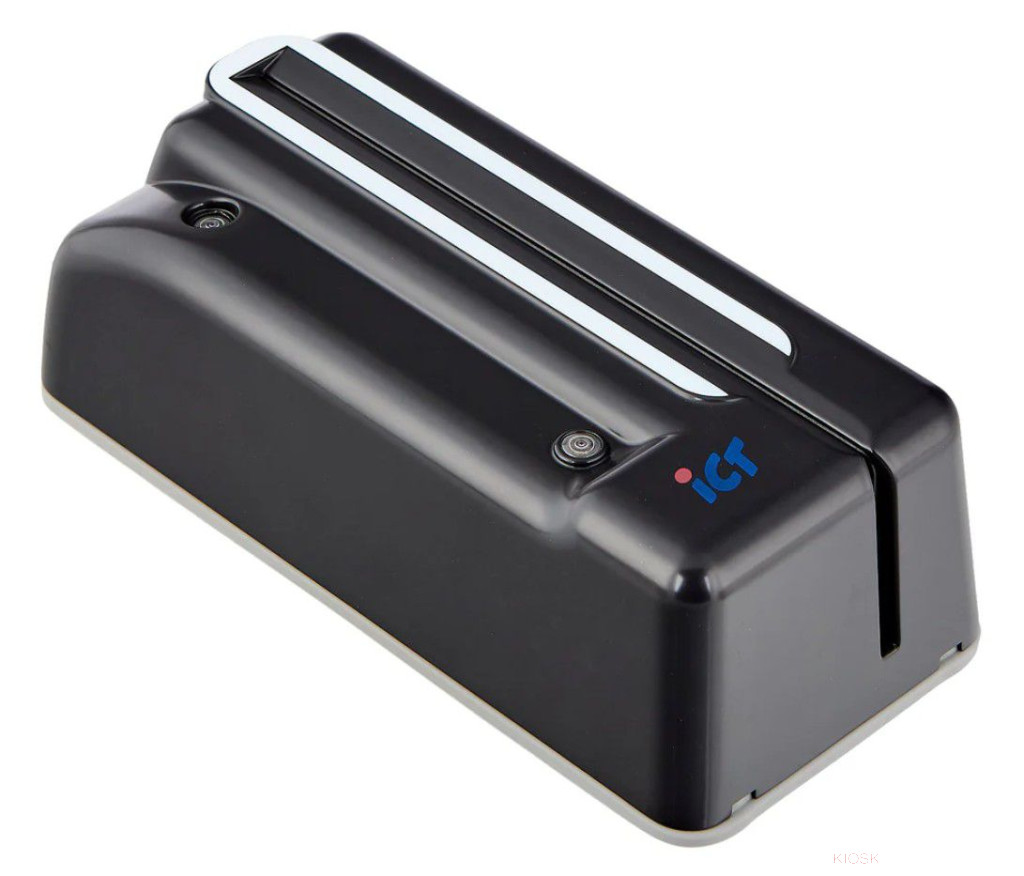

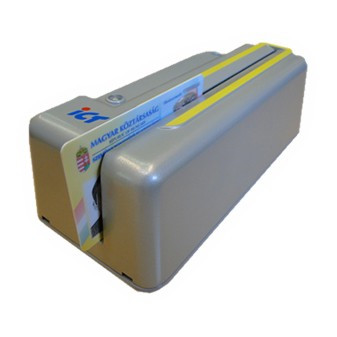

The ICT DCM5 document age verification reader is a dedicated module for automated age control and restricted access applications, designed to be integrated into vending machines and access control systems. It supports ID cards and driving licences from all EU countries and, in addition to the OCR line, also evaluates the printed data fields on the card, providing reliable age information to the host controller.
- Application area: automated age verification for vending and access control
- Supported documents: ID cards and driving licences from all EU member states
- Operating temperature: -20 °C to +60 °C for indoor and outdoor installations
- Supply voltage: 9–45 V DC, typical current consumption up to 0.25 A
- Interface: MDB connection for straightforward integration into vending controllers
- Mechanical size: 85 × 198 × 62.5 mm with robust, water-resistant housing
- Use cases: age check for the sale of excise products, access control for age-restricted areas and unattended self-service systems
How does the ICT DCM5 support automated age verification in real projects?
During a transaction or access request the DCM5 keeps the system in a blocked state until a valid ID document is scanned by the customer. Based on the date of birth and other identification data read from the card, the module calculates the age and sends an allow or deny signal via the MDB interface to the host controller. In this way the vending machine or access control point only becomes active if the configured age limit has been met.
What are the main advantages of using the ICT DCM5 for identification?
A major advantage of the ICT DCM5 is that it is not limited to the OCR line: it also “reads” the visible data fields printed on the document. This ensures reliable operation even when the OCR code is partially missing or damaged. The robust design, water-resistant housing and wide temperature range make the module suitable for outdoor kiosks, exposed vending locations and high-traffic access points where 24/7 availability is expected.
Which selection criteria should you consider when choosing a document reader for age verification?
When selecting an age verification module it is important to match the technology to the legal requirements and operating environment of the project. The checklist below can help you decide whether the ICT DCM5 document age verification reader is the right choice for your system.
- Regulatory requirements and mandatory age checks in the target countries
- Types of documents to be supported (ID card, driving licence, other credentials)
- Integration into existing vending or access systems via MDB or other industrial interfaces
- Indoor versus outdoor use, required temperature and humidity range
- Mechanical robustness, vandal resistance and water or dust protection
- Availability of local developer support, SDKs and technical documentation
- Stock availability, lead times and project-based delivery options
Why are quality, maintenance and local technical support so important?
The continuous, failure-free operation of age verification devices has a direct impact on regulatory compliance and on the uptime of revenue-generating vending equipment. For this reason it is essential that the chosen module is backed by a stable quality assurance process and strong local support for installation and operation.
- Planned preventive maintenance and regular cleaning to extend the life of optical components and housings
- Strict adherence to the recommended temperature, humidity and power supply specifications
- Regular firmware and software updates, especially when the reader is part of a larger payment or access control solution
- Quick access to local service in Budapest and expert support throughout design, commissioning and operation
Which logistics and financing options support the deployment of ICT DCM5 based solutions?
Deploying an automated age verification solution is not only a technical, but also a logistics and financing task. For a successful project the required modules must be available in time and the commercial framework should match the investment schedule.
- Local and European stock to support roll-outs with higher unit numbers and multiple deployment waves
- Timed deliveries aligned with production and installation plans to avoid unnecessary stock on site
- Selectable shipping methods, customs handling and professional transport for sensitive electronics
- Post-delivery payment terms, invoicing in multiple currencies and project-specific quotations for larger systems
Build your enquiry list with ICT DCM5 and related kiosk components
If the ICT DCM5 document age verification reader fits your current or future project concepts, it is recommended to add it to your enquiry list together with the other required modules. Collect all components that may be relevant – document readers, payment devices, controllers and displays – and send the enquiry list once you have finished browsing the website. A sales representative will contact you to clarify the technical requirements, the delivery and financing options and will prepare a project-specific quotation.
Frequently asked questions – ICT DCM5 document age verification reader
What is the ICT DCM5 document age verification reader used for?
The ICT DCM5 is primarily used for automated age verification in applications where age checks are mandatory by law. Typical examples include vending machines selling restricted products, unattended self-service terminals and access control points with age limitations.
How does an industrial document reader differ from a consumer-grade device?
Industrial document readers are designed for continuous, high-duty operation and are manufactured from more robust materials. Defined operating temperature ranges, industrial power specifications, water- and dust-resistant housings and long-term spare part availability are features that are usually not provided by consumer-grade devices.
What are the benefits of the MDB interface when integrating the ICT DCM5?
The MDB interface is an industry standard in the vending world, which makes it straightforward to integrate the ICT DCM5 into existing machines. The reader can directly enable or block the transaction based on the age check result, reducing development time and integration risk.
Which project options are available when using the ICT DCM5?
With access to detailed technical documentation, local engineering support, stock, flexible delivery options, customs handling and post-delivery payment terms, ICT DCM5 based solutions can be rolled out in a controlled and predictable way. This helps you align the deployment schedule with your site readiness and investment plans.
