Banknote acceptor with recycler, ccTalk

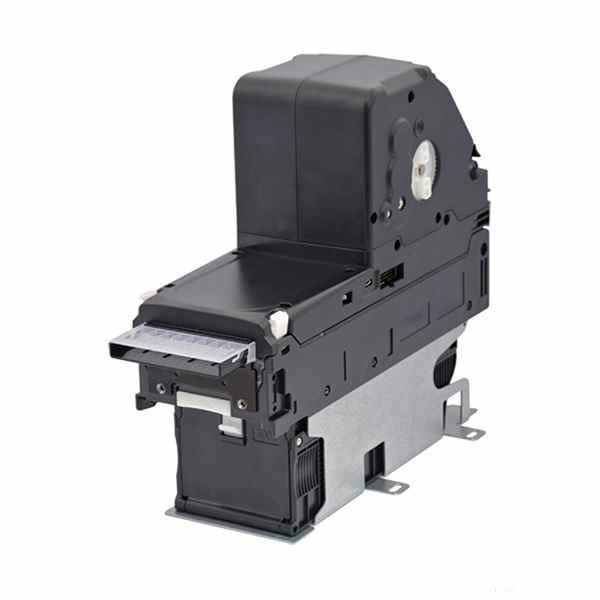

ICT BR2300 bill recycler banknote acceptor CCTalk LED for self-service machines

The ICTBR2300CCTINT unit, described as a bill recycler ICT BR2300 CCT INT 5 LED, is a high-performance banknote acceptor with change-giving functionality designed for self-service kiosks, vending machines, parking pay stations and access gates. It validates and accepts incoming banknotes, stores them and recycles a selected denomination for payout, combining validator, recycler and cashbox functions in one compact module. Thanks to its CCTalk and MDB interfaces, the device integrates easily with modern controller boards, while the multi-LED front bezel provides clear visual feedback about readiness, note insertion, acceptance and error conditions. The large recycler capacity and optional cassette sizes reduce refill frequency and on-site service visits, helping operators lower their overall cash handling and maintenance costs.

Construction, interfaces and key technical features

• Compact modular bill recycler consisting of a validator head, recycler section and lockable removable cash cassette, designed for installation behind kiosk and machine fascias.
• According to the kiosk description, the BR2300 can accept the complete banknote series of a given country, with the recycled payout denomination set in software to match local requirements.
• Typical acceptance rate is around 96% with support for 15–32 denominations, providing fast and reliable transactions even in high-traffic applications.
• Supported banknote width range is 62–77 mm, covering the majority of commonly used banknote formats.
• Power supply: 12 V DC with approximately 0.5–4 A current consumption, suitable for standard vending and access control power systems.
• The CCT INT 5 LED version offers CCTalk and MDB communication interfaces and a multi-LED bezel that clearly indicates status to the user and service personnel.

Banknote handling, recycling function and capacity

• In recycler mode, the BR2300 stores a selected denomination in the recycler section and uses it to pay out change in banknotes, reducing the need for coin payout.
• The novoparts kiosk specification states that the recycler box can hold approximately 50 notes, while the final cash cassette stores 300 or 600 notes depending on cassette size.
• High recycler capacity combined with fast, wide-angle note insertion allows a single unit to handle the majority of daily transactions with minimal refill interventions.
• Advanced anti-stringing and anti-fishing features prevent users from pulling notes back, significantly reducing fraud attempts.
• Multi-channel optical sensors verify security elements on each note, rejecting counterfeits or heavily damaged banknotes with high accuracy.
• Firmware can be updated via USB or through the host machine, making it easy to support new banknote series and regional configurations.

Operating conditions and reliability

• The ICT BR2300 CCT INT 5 LED variant is optimised for indoor, protected environments, with the kiosk specification indicating reliable operation roughly between 0 and 55°C.
• Manufacturer information highlights strong immunity to ambient light and robust performance even under demanding temperature conditions.
• A removable cash cassette and accessible note path simplify cleaning, maintenance and cash removal, reducing machine downtime.
• Auto-calibration technology helps maintain high acceptance rates over time while reducing the need for frequent manual adjustments.
• Durable mechanics and high-quality components provide long service life, even in intensive self-service and vending environments.

Typical applications and operator benefits

• Self-service ticket vending machines in public transport and event venues where fast note acceptance and efficient banknote change payout are critical.
• Vending machines and automatic retail systems in which the CCTalk and MDB interfaces allow straightforward integration with existing controllers.
• Parking pay stations and pay-on-foot terminals seeking to reduce refill frequency and on-site cash handling through banknote recycling.
• Access gates and unattended kiosks that benefit from secure banknote validation and automatic note payout, improving user experience.
• Gaming and amusement environments that require fast payouts, robust anti-stringing protection and high overall availability.

FAQ – ICT BR2300 CCT INT 5 LED bill recycler

• How does the ICT BR2300 CCT INT 5 LED differ from a standard bill validator?

  A standard validator only checks and stores notes in a cashbox, while the BR2300 recycles a selected denomination and pays out change in banknotes, combining validator and recycler functions.
• What recycler and cashbox capacities are available?

  According to the kiosk specification, the recycler section holds around 50 notes, and the lockable cassette is available in 300 or 600 note versions, suitable for high-traffic machines.
• Which interfaces are supported by the CCT INT 5 LED version?

  The CCT INT designation indicates support for CCTalk and MDB communication, allowing seamless integration into vending, parking and access control systems.
• In what environments is the ICT BR2300 intended to operate?

  The device is primarily intended for indoor, protected locations, typically within a 0–55°C temperature range, installed inside properly ventilated and protected cabinets.
• How does the recycler function help reduce operating costs?

  By paying out change in recycled notes, the BR2300 reduces coin usage and manual refills, while high acceptance rates and large capacity reduce service visits and overall cash handling overhead.
