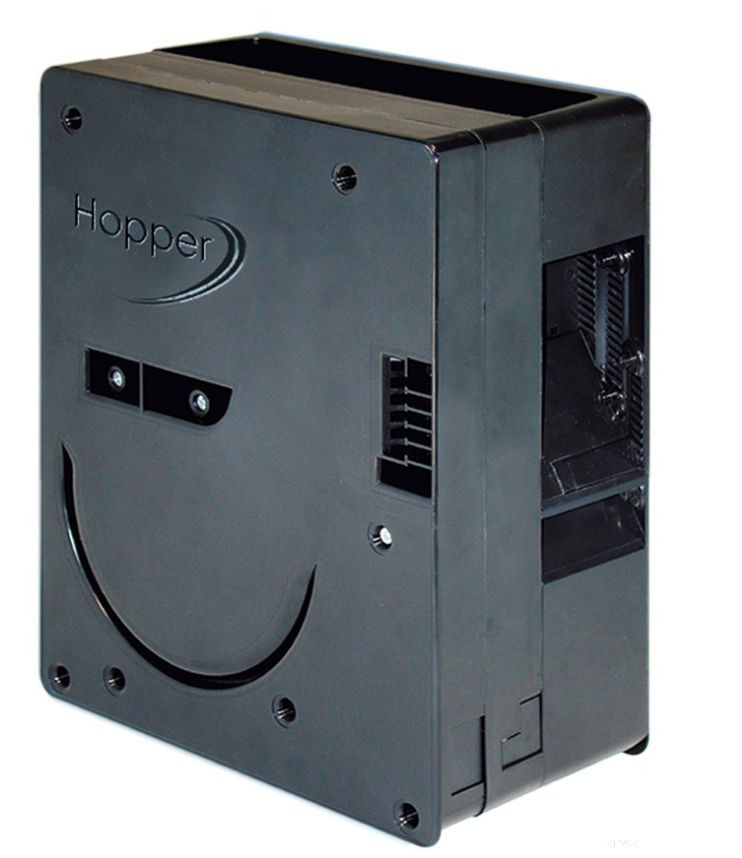

What are the technical characteristics of the HPRO-2024STD coin payout unit (ccTalk, standard connection)?
- item number: HPRO-2024STD
- data interface: ccTalk
- operation: payout
- operating conditions: indoor 10–40°C
- typical use: vending machines
- weight: 2.3 kg/pcs
- coin/token range (standard belt): 21–30.5 mm diameter, 1.6–3.3 mm thickness
- coin/token range (small belt): 16.25–21.55 mm diameter, 1.0–3.3 mm thickness
- power options: available in 12 V DC and 24 V DC
- connection plug: 2 mounting positions
- integration options: parallel, USB or ccTalk interface
Why choose a ccTalk coin hopper for payout control?
A ccTalk hopper is valuable when you want more than a basic dispense signal. With serial communication you can implement tighter host control, collect status feedback and simplify diagnostics, which helps keep transaction times stable during high-traffic periods. The HPRO-2024STD coin payout unit (ccTalk, standard connection) is typically selected for change dispensing and controlled coin/token dosing where predictable behavior, service access and integration consistency matter.
Selection criteria
- coin/token size range: standard belt (21–30.5 mm / 1.6–3.3 mm) vs small belt (16.25–21.55 mm / 1.0–3.3 mm)
- available supply in the machine: 12 V DC or 24 V DC
- interface requirement: ccTalk, or USB/parallel integration where needed
- mechanical installation: connector orientation, cable routing, service access
- environment and duty cycle: indoor temperature window, dust management, daily load
- payout goal: fast change dispensing, defined dosing, consistent throughput
How do you keep payout accuracy stable over time?
Stable dispensing depends on clean coin paths, correct setup and routine preventive maintenance. Belt-driven mechanisms can provide more consistent feeding when coin surface conditions vary or when tokens show different wear levels. Combine scheduled inspection and cleaning with stable power delivery, and keep operation within the specified indoor range. With these basics in place, the HPRO-2024STD coin payout unit (ccTalk, standard connection) supports predictable long-term performance.
Quality, local technical support and commercial options
In professional deployments, uptime is strongly linked to serviceability and supply chain execution. Align technical support, servicing routines and procurement timing with your rollout plan so you can reduce risk and avoid unplanned downtime.
- local technical support and servicing for faster fault isolation
- planned preventive maintenance: cleaning, visual checks, operating condition compliance
- local stock and timed deliveries aligned to installation waves
- shipping choices, customs clearance and freight forwarding for project logistics
- post-payment options and foreign currency invoicing for budget planning
- project-based quotations and quantity conditions for complete bill-of-materials planning
CTA
Add products that may be useful beyond your current project to your interest list (cart) and send the full list at the end of your visit as one request. This helps you receive a project-tailored quotation faster and keeps technical and commercial alignment in one place.
FAQ
What coin and token sizes does hpro-2024std support?
With a standard belt it supports 21–30.5 mm diameter and 1.6–3.3 mm thickness; with a small belt it supports 16.25–21.55 mm diameter and 1.0–3.3 mm thickness.
Why is cctalk useful for coin payout?
ccTalk enables serial control, status feedback and diagnostics, helping you troubleshoot faster and keep operation predictable.
What do industrial payout units typically provide?
They typically offer more durable mechanics, standardized interfaces, better service access and more repeatable dispensing than consumer-grade solutions.
What should you check during operation?
Keep the coin path clean, follow preventive maintenance routines, and operate within the indoor 10–40°c window with stable power (12 V DC or 24 V DC depending on the version).
