22" interactive touch foil

• Details
• Info

Details

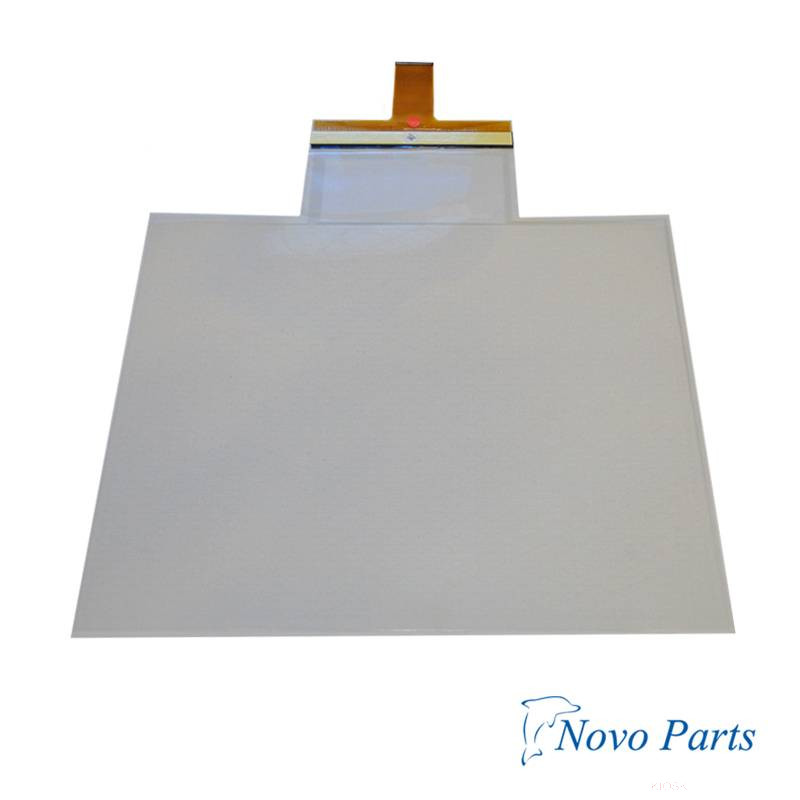

17" Projected capacitive foil. For unique built touch sensors.   Totally see-through Low consumption Long life        USB Interface   4:3 - 8:3 - 16:9 - 21:9 screen ratio    It is usable even with gloves     2 point multitouch    CE, FCC, ROHS certification
Available sizes	17'' 19'' 22'' 24'' 27'' 30'' 32'' 37'' 40'' 42'' 46'' 50'' 52'' 55'' 57'' 60'' 62'' 67'' 70'' 72'' 74'' 80'' 84'' 90'' 92'' 94'' 100'' 112'' 114'' 115'' 120'
Induction method	The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
Touch size	17"~94"(4:3) or 17"~120"(16:9) can be customized
Paste way	Removable Imperial or permanent paste
Touch accuracy	No drift, the deviation is about 1~3mm
Calibration way	software calibration
The number of wires	Nano-wires 40 Road / Road 64/128
Induction thickness (penetration)	Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm
Scanning frequency	60Hz~130hz
Output way	USB 2.0 (HID public interface to USB Mini B interface)
Compatibility	WIN2000/WINXP/WIN7/WIN8/Linux/Mac/android4.0 etc.
Touch functionality	Mouse function, multi-point (2) touch support TUIO and Windows Native
Temperature range	-20°C~60°C
Humidity range	0% RH to 95% RH (without condensation neighborhood)
Transmittance	＞93%
Power consumption	Max 0.5W
Product Certification	CE,FCC,ROHS
EMC	EN61000-6-1：2007   EN61000-6-3：2007+A1：2011

Info

Weight:

300 g/pcs
