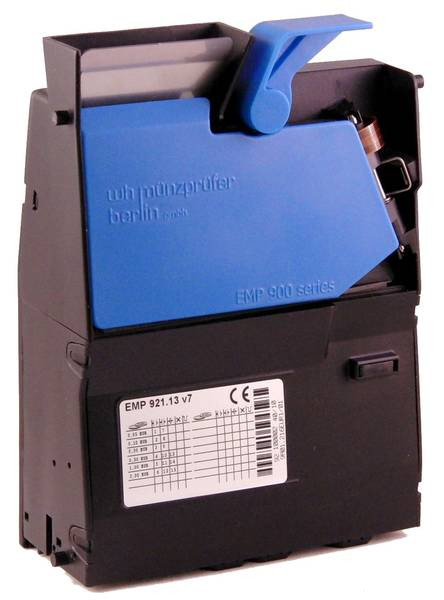

EMP 900.13 V7 electronic coin selector CCTALK + 6 way integrated sorter

What are the technical characteristics of the EMP 900.13 V7 32-channel electronic coin selector (CCTalk) with 6-way integrated sorter?

• item number: EMP90013V7
• acceptance rate: 98%
• programmable channels / accepted denominations: 32
• maximum coin size: 32.5 × 3 mm
• overall dimensions: 179.5 × 127 × 57.8 mm
• supply voltage: 10–26 V DC
• current consumption: 30–300 mA
• data interface: cctalk
• integrated sorting: 6-way outlet (built-in sorter)
• operating environment: outdoor -20 – 50 °C
• weight: 505 g/pc

Why choose a 32-channel cctalk coin validator with an integrated 6-way sorter?

The EMP 900.13 V7 32-channel electronic coin selector (CCTalk) with 6-way integrated sorter is built for coin identification and controlled routing without the need for a separate external sorting module. The 6-way outlet enables denomination-based separation or dedicated collection paths, supporting faster reconciliation and more predictable cash handling. With a standardized CCTalk interface, it integrates cleanly into controller electronics and supports diagnostics, parameter management and controlled operating modes, which are essential for enterprise-grade uptime and repeatable field performance.

Where does it deliver stable outdoor performance under intensive usage?

It is commonly selected for parking payment solutions, ticketing machines and other self-service installations exposed to temperature variation and continuous transaction loads. A wide operating temperature range and clearly defined power requirements simplify electrical design and commissioning. The compact envelope helps in constrained mechanical layouts, while 32 programmable channels provide flexibility for multiple coin profiles and token handling when your payment logic needs customization across sites or regions.

What selection criteria should you use for system design?

• interface fit: cctalk compatibility with your controller and peripherals
• transaction performance: high acceptance rate and consistent behavior at peak load
• coin range: up to 32.5 × 3 mm and the channel count you need
• sorting needs: 6-way routing for denomination separation and controlled cash paths
• environment: outdoor -20 – 50 °C and dust-prone or high-traffic locations
• integration: mechanical mounting, cabling, and service access for maintenance

Why do quality, local technical support and regular maintenance matter?

In cash handling, availability directly impacts revenue and user satisfaction. Beyond accurate validation, long service life depends on consistent cleaning routines, stable operating conditions and fast fault isolation. When local service and clear technical documentation are available, integration and commissioning become smoother, and changes can be managed with less operational risk across the full lifecycle of the installation.

• preventive care: cleaning, visual checks, and monitoring wear-related components
• operating conditions: temperature, humidity and stable power supply alignment
• configuration control: documented parameters and repeatable test procedures
• service process: faster diagnostics, spare part availability and standardized repair steps

Which supply, logistics and financial options support project delivery?

Project timelines are easier to keep when parts are available and procurement can follow manufacturing schedules. Planning for stock availability, scheduled inbound deliveries and shipping alternatives helps reduce delays and supports predictable rollout phases. Commercial flexibility is also important when multiple sites or phased deployments are involved.

• stock and scheduled deliveries: phased supply aligned to rollout planning
• shipping options: express, standard or project-aligned delivery modes
• customs and forwarding: organized logistics for sensitive electronics
• post-payment terms: improved cash-flow planning for corporate purchasing
• multi-currency invoicing: eur/huf options for transparent budgeting
• project-based quotations: sample units, pilots and documented test steps
