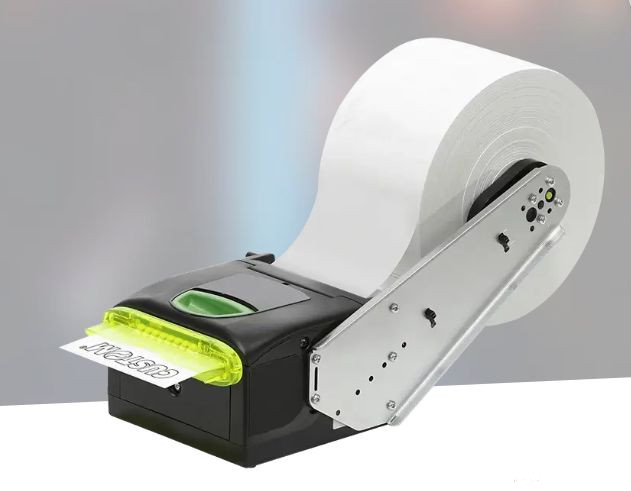

Embedded VKP80III kiosk thermal printer with RS232 and USB connectivity
Overview and main advantages
The VKP80III embedded thermal kiosk printer is designed for self-service systems that require high print speed, continuous uptime and reliable fiscal receipt or ticket issuance. Its 80 mm wide, 200 dpi print head produces sharp, easy-to-read tickets, coupons and receipts, while the compact footprint allows straightforward integration into kiosks, payment terminals and other embedded OEM solutions.
- 80 mm direct thermal kiosk printer for demanding receipt and ticket applications
- Compact, embedded design with rear connector layout for OEM integration
- 200 dpi print resolution for clear barcodes, logos and fine text
- Print speed up to > 250 mm/s for fast customer service
System integration and data interfaces
The printer features full-speed USB 2.0 and RS232 interfaces, making it easy to connect both to modern controllers and to existing legacy systems. The rear-connector version simplifies cabling inside the kiosk and helps achieve a clean, protected installation. With the hot swap function the printer can be removed and replaced without powering down the kiosk, minimizing downtime during maintenance or replacement.
- USB 2.0 and RS232 interfaces for flexible host connectivity
- Rear connector design for tidy in-kiosk wiring
- Hot swap support: replace the printer without shutting down the system
- Support for TrueType fonts and multiple international character sets
Media handling, print speed and quality
VKP80III supports paper widths from 50 to 82.5 mm and media thickness from 60 to 110 g/m², covering a wide range of ticket and receipt formats. The high print speed is combined with a presenter function that pushes the ticket fully out of the slot and a retract function that pulls it back in if the user does not take it in time. Thanks to the large paper roll capacity, the printer can run for long periods without operator intervention, which is crucial in unattended kiosk installations.
- Paper width: 50–82.5 mm, media thickness: 60–110 g/m²
- Print speed: > 250 mm/s
- Ticket presenter and retract function with > 1000 mm/s feed speed
- High capacity paper roll and fan-fold (fan-fold tickets) support for long autonomy
Reliability, protection and maintenance
The printer integrates an advanced anti-jamming system that actively prevents paper jams and can clear the path if necessary. Its durable print head is rated for up to 200 km of printed media, while the heavy-duty cutter is specified for more than 1,000,000 cuts. A rich set of sensors – including ticket presence, near paper end, paper out, open cover and head temperature – helps the host application monitor printer status in real time and schedule preventive maintenance before downtime occurs.
- Anti-jamming mechanism for reliable ticket output in busy environments
- Automatic ticket ejection and retract for unattended installations
- Long-life cutter rated for > 1,000,000 cuts
- Print head life of about 200 km of printed paper
- Comprehensive sensor set for advanced status monitoring and diagnostics
Typical applications
VKP80III is an ideal choice wherever unattended, high-volume ticket or receipt printing is needed. With an operating temperature range suitable for outdoor kiosks and robust mechanics, it fits a wide variety of verticals. From parking and transport to banking and gaming, the printer delivers fast, quiet and dependable output that improves the overall user experience at the kiosk.
- Parking payment and ticketing terminals
- Self-service POS and payment kiosks
- ATMs and banking terminals
- Gaming and betting machines
- Queue management and ticket dispensers
Key technical specifications
The VKP80III operates from a 24 VDC power supply and can be combined with a wide range of accessories, including external roll holders with near-paper-end sensor, dedicated power supplies, serial and USB cables and different paper roll sizes. It supports an extensive set of 1D and 2D barcodes – such as QR Code, EAN, Code 128 and DataMatrix – making it a perfect fit for applications that rely on barcode-based access control, loyalty programs or ticket validation.
- Power supply: 24 VDC (external PSU available as accessory)
- Interfaces: RS232C and USB 2.0 full speed
- Wide 1D/2D barcode support, including QR Code and DataMatrix
- Robust, embedded design for indoor and protected outdoor kiosks
- Optional roll holder and installation accessories for flexible mounting
FAQ – VKP80III kiosk thermal printer
- What kind of applications is the VKP80III printer designed for?
- It is intended for self-service kiosks such as parking and transport ticket machines, payment and queueing terminals, ATMs and gaming machines where fast, unattended receipt or ticket printing is required.
- What paper sizes can be used with the printer?
- The printer accepts thermal paper from 50 to 82.5 mm wide and 60 to 110 g/m² thick, giving you flexibility to design different ticket and receipt formats.
- Is the VKP80III suitable for outdoor kiosks?
- Yes, when installed in an appropriately protected kiosk enclosure, the printer can operate in a wide temperature range, making it suitable for many outdoor parking and ticketing applications.
- Which interfaces are available for system integration?
- The unit provides RS232 and USB 2.0 interfaces, so it can be easily connected to industrial PCs, embedded controllers and single-board computers.
- How demanding is the printer in terms of maintenance?
- Thanks to the long-life print head and cutter, anti-jamming mechanism and built-in status sensors, routine maintenance is usually limited to occasional cleaning and paper replacement.
