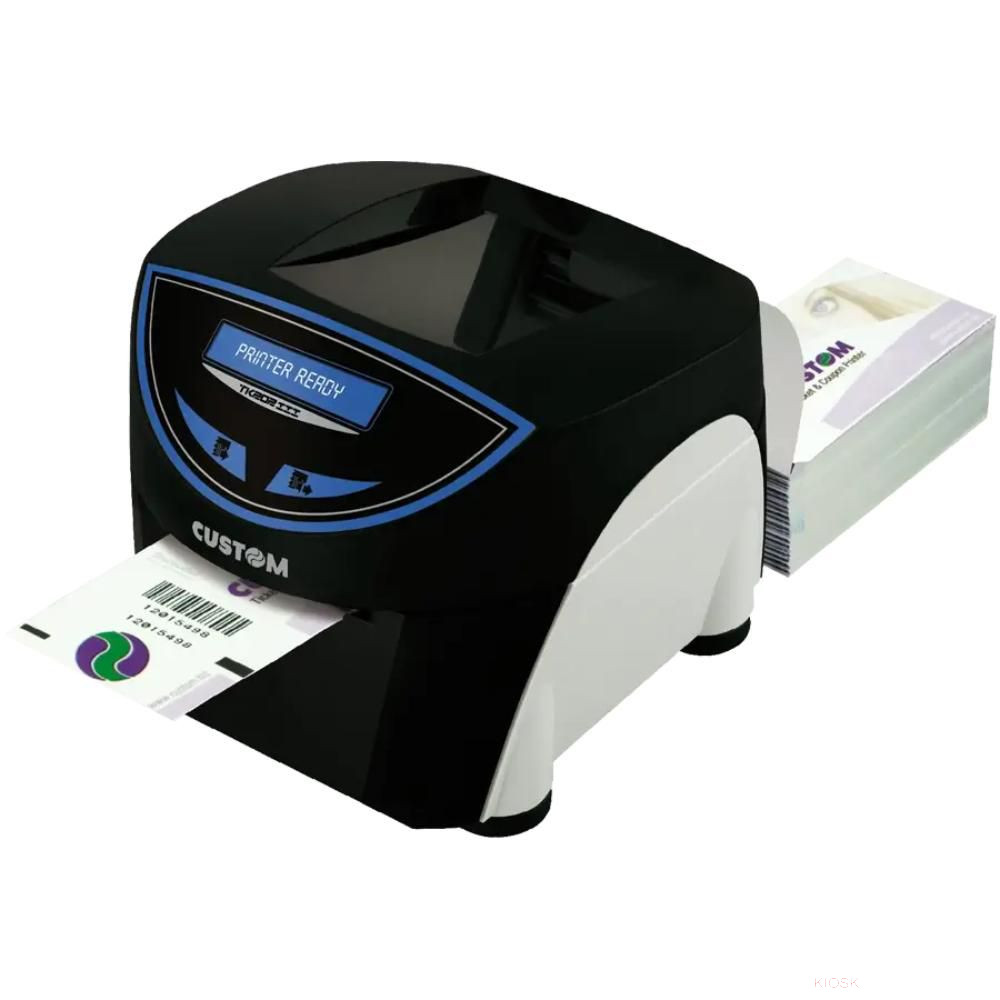

Ticket Printer CUSTOM TK202 USB RS232 DSP GREY

TK202III – desktop thermal and thermo transfer label printer high speed, 20–82.5 mm, USB + RS232

Overview

TK202III is Custom’s high‑speed direct thermal printer for ticket and wristband issuance. According to the manufacturer, it supports multiple ticket widths from 20 to 82.5 mm, making it easy to deploy across transport, parking, events and leisure environments. The robust desktop design offers RS232 and USB interfaces, while finely adjustable lower/upper optical sensors reliably track black marks or media gaps for accurate positioning. The tear‑off bar is a cost‑effective solution that reduces blade wear and maintenance. Custom’s software suite (PrinterSet, Custom Power Tool, Status Monitor) simplifies logo/font updates, firmware management and real‑time status control, streamlining day‑to‑day operations.

Main technical data and functions

• Print speed: >200 mm/s for high throughput
• Media: 20–82.5 mm width, user‑adjustable; typical weight range ~80–255 g/m²
• Interfaces: RS232 + USB as standard
• Sensors: adjustable lower/upper optical detectors for black‑mark and gap sensing
• Cut/tear: two‑side tear‑off bar to minimize costs and mechanical wear
• 1D/2D codes: EAN, CODE39, CODE128, PDF417, DataMatrix, QR Code and more
• Graphics & fonts: dynamic logo management (up to ~2 MB) and TrueType support
• Drivers & tools: Windows, Linux, Android, iOS; PrinterSet, Custom Power Tool, Status Monitor
• Dimensions & weight (base): approx. 252 × 216 × 192.6 mm; ~4 kg

Integration and operation

Standard RS232 and USB connectivity enables quick integration with POS, access control and bespoke software. Adjustable sensors and easy paper‑width setup allow fast switching between formats. Power Tool lets non‑technical users design layouts in a few steps; PrinterSet manages parameters, firmware and logo/font updates; Status Monitor provides live events for efficient troubleshooting. The tear‑off solution keeps moving parts to a minimum, lowering total cost of ownership and maximizing uptime.

Applications

• Public transport and parking: travel/parking tickets and boarding pass/bag‑tag (in specific configurations)
• Event admission: concerts, festivals, sports venues and wristbands
• Leisure venues: cinemas, museums, theme parks and attractions
• Service counters: queue tickets and internal IDs

FAQ

• Question: Which ticket widths are supported?

  Answer: Adjustable from 20 to 82.5 mm, covering most common formats.
• Question: Which interfaces are available?

  Answer: RS232 and USB as standard for straightforward integration.
• Question: Which codes can be printed?

  Answer: A wide range of 1D/2D symbologies including EAN, CODE39, CODE128, PDF417, DataMatrix and QR Code.
• Question: Which setup tools are provided?

  Answer: PrinterSet for parameters/firmware, Custom Power Tool for layouts, and Status Monitor for status control.
• Question: Is there an automatic cutter?

  Answer: TK202III uses a two‑side tear‑off bar; cutter options depend on model/configuration.

Summary

TK202III is a fast, flexible and reliable printer for high‑traffic ticketing tasks. Its >200 mm/s speed, 20–82.5 mm media range, adjustable sensors and complete software toolkit enable smooth deployment and steady daily operation across transport, parking, event and leisure scenarios.
