CUSTOM PROP PP54, RS232

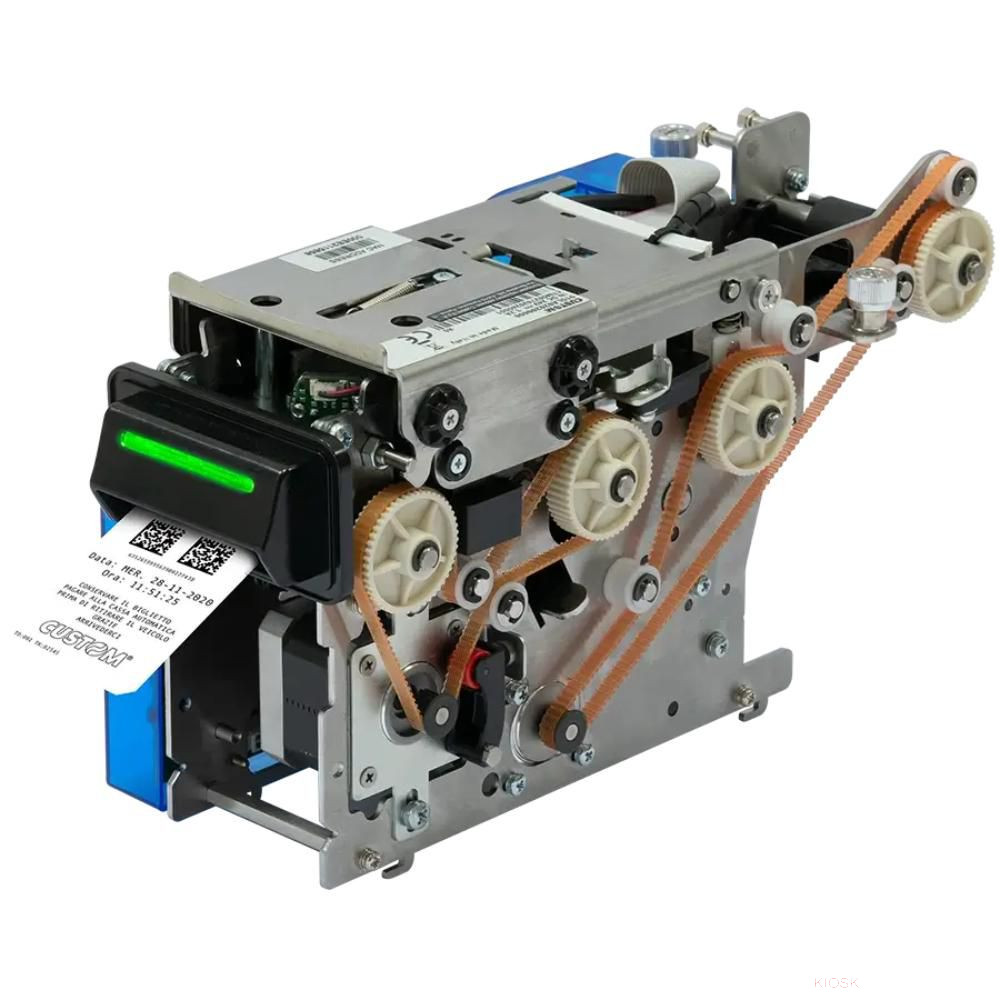

PP54 EVO – Ticket Issuing, Validation and Parking/Access Control Printer

Overview

PP54 EVO is one of Custom’s most innovative engines for parking, transport and access control systems. It combines fast barcode ticket issuing, reading and validation with coupon and card handling in a single compact device. The thermal printing mechanism delivers clear and durable output at 304 dpi resolution with print speeds up to 150 mm/s. The printer supports ISO7811 graphic tickets and can manage up to three tickets at the same time, while reading tickets from four directions. Models equipped with CIS scanners provide reliable bi‑directional or four‑directional reading, making PP54 EVO ideal for outdoor kiosks, payment points and exit gates.

Main Features

• Thermal printing with fixed head; 12 dots/mm, 304 dpi resolution
• Print speed up to 150 mm/s for rapid ticket issuing
• ISO7811 tickets with graphic printing, reading and scanning in a 300 dpi environment
• 1D and 2D barcode support: EAN13, CODE39, CODE128, ITF, PDF417, DATAMATRIX, AZTEC, QRCODE
• RFID and NFC compatibility: ISO 14443-A/B (TCL), MIFARE classic read/write, ISO 15693
• Simultaneous management of up to three tickets; issuing, insertion and stacking
• Modular architecture; RS232 and Ethernet interfaces with optional USB
• PP54 Layout Editor and SDK for fast integration; PrinterSet utility

Operations and Reliability

• Paper weight 140–210 g/m²; paper thickness 140–230 μm; print width 51.5 mm
• Print head life 100 km / 100M pulses; MCBF 1,000,000 tickets
• Sensors: head temperature, paper in/out, cover open, multiple internal ticket‑handling sensors, optional near‑paper‑end
• Power supply 24 Vdc ±10%; average consumption 1.2 A
• Operating temperature from -10 °C to +60 °C
• Windows drivers (32/64 bit, WHQL and silent installation on request), .NET SDK for developers

Applications

• Access control and ticket validation: fast printing, reading and validation at a single point
• Payment terminals: receipt printing, coupon handling, RFID and barcode ticket processing
• Exit stations: ticket reading and validation, card intake and ticket re‑printing
• Outdoor and industrial kiosks: robust paper handling and high availability for tough environments

Integration and Maintenance

• RS232 and Ethernet communications for straightforward system integration; optional USB
• 16 KB buffer, 2 MB internal and 8 MB external flash (with user area), 512 KB internal + 8 MB external RAM
• Direct support for common ticket and card formats plus multilingual character sets
• Easy maintenance: field‑replaceable wear components minimize downtime

Summary

PP54 EVO is a versatile engine for parking, transport and access control tasks. Its high‑speed, high‑resolution printing, extensive barcode and RFID support and industrial‑grade reliability simplify issuing and validation while lowering operating costs. With the SDK and management utilities, the printer integrates quickly into existing payment, access and parking systems, shortening deployment times and accelerating return on investment.
