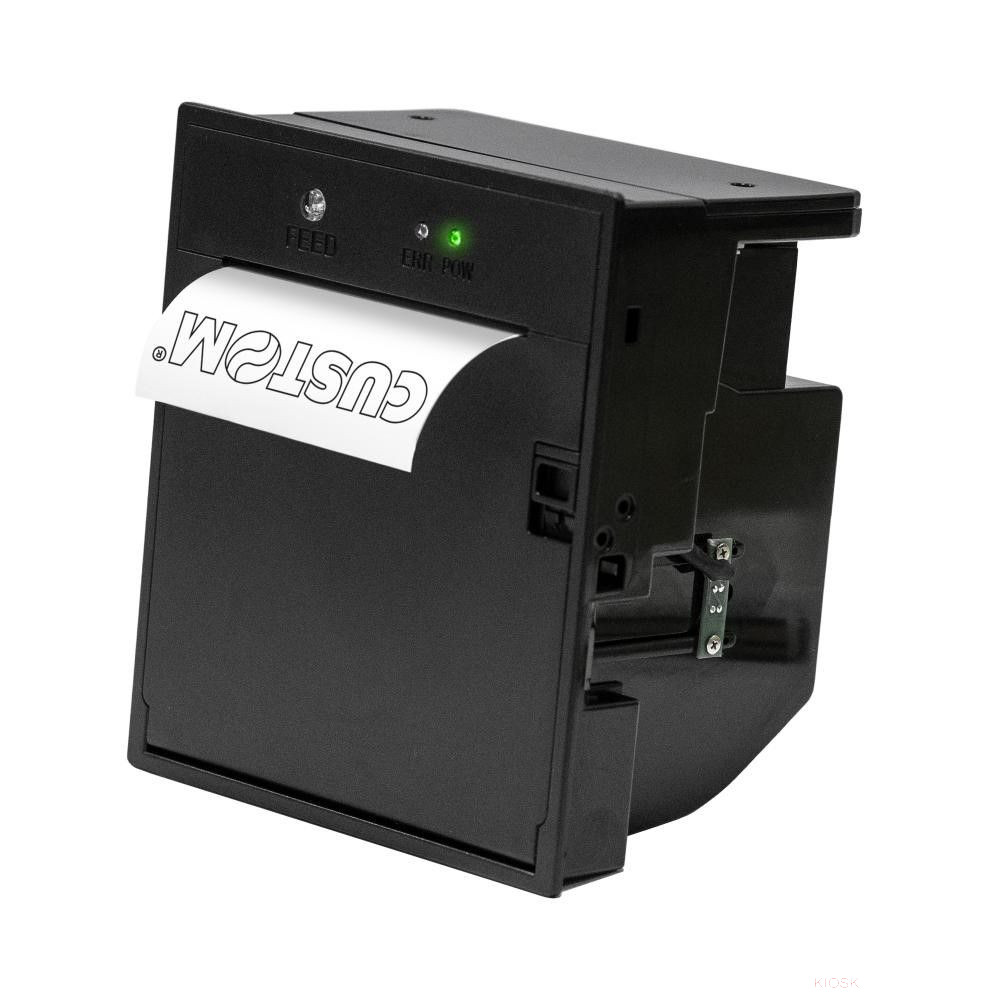

ULTRA-COMPACT PANEL PRINTER.
Without power supply.
Available accessories:
- 963GE020000071 POWER SUPPLY 60W MSO+RC CONNECTOR DIN
- 976PF010000001 RS232 CABLE DB9-MOLEX 4PIN
- 26900000000005 CABLE ADAPTER POWER SUPPLY
Features:
- Print on "linerless" paper or standard thermal paper
- USB 2.0 on board
- Double opening of the cover: "comfort" with central lightened button or with "double hook"
- Wide range of power supply from 3.3V to 40Vdc
- ECOMODE and POWER OFF
- High reliability with big workloads thanks to the heat sink
- Reduces assembling time more than 80%
- Allows to adapt PLUS II to any panel thickness
- Makes easy and fast printer fixing, without any tools
Applications:
- Self-service kiosks
- Indoor payment kiosks
- Coupon
- Weighing systems
Technical information:
| Printing method | Thermal with fixed head |
| Resolution | 203 dpi |
| Printing speed | Max 200 mm/s |
| Paper width | 80 mm |
| Paper thickness | From 50μm to 80μm |
| Roll diameter | 80 mm |
| Built-in autocutter | With partial and full cut |
| Interfaces | USB 2.0 full speed
Serial RS232 |
| Supported Barcodes | UPC-E, EAN8, EAN13, ITF, CODABAR, CODE39, CODE93, CODE128, PDF417, QR CODE |
| Character Set | European, English, American, Japanese, Korean |
| MTBF Cutter | 1M cuts |
| MTBF Head | 100Km (100M Pulses) |
| Drivers | Windows® (32/64 bit);
Printer Driver Installer;
Android™ |
| Utility | Memory switch setting Utility, Logo setup tool, Firmware update |
| Dimensions | 118.9 mm (L) x 87.1 mm (W) x 132.1 mm (H) |
Software features:
- Print driver Windows for P80C 1.011
- Driver Linux e Fedora Operating system compatibility with a GCC updated at least 2022 required 1.00
- Android SDK API Custom 1.00
- Memory switch setting Utility, Logo setup tool, Firmware update
