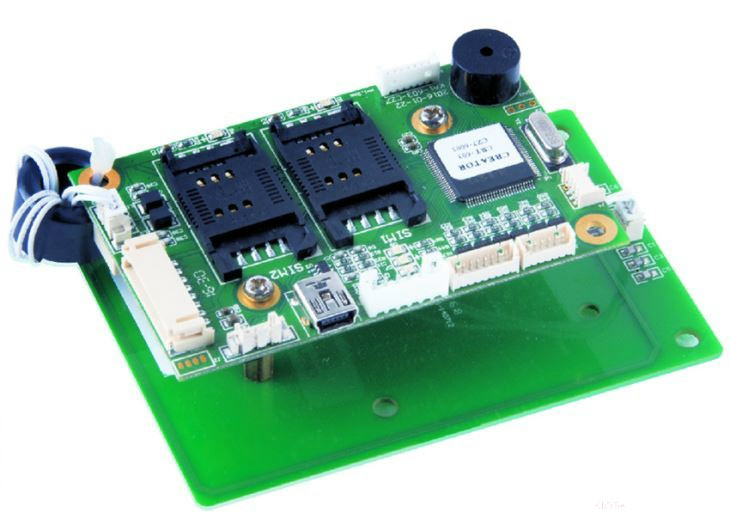

RFID card reaser module with separate antenna module

Article No.:

CRT603-CZ7-6001

Article No.:

CRT603-CZ7-6001

NFC kártyák írására/olvasására is képes RFID modul. Vezérlő modul, antenna, külön panlelen a jobb beépíthetőség érdekében. USB és RS232 -es inteface-el is rendelhető.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available for order

Details
Info

Details

NFC cards RFID modul with reading and writing capabilities
Controling modul arial, LED feedback with separate panel for better built in capability
It can be ordered with RS232 or USB interface

USB2.0 full speed, PC/SC communication, CCID driver, easy operation
Support contactless card conforming to ISO14443-3/4 criterion, such as S50，S70，UL，MIFARETYPEA&TYPEB
Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously　
Conforming to banking payment application, to ensure an easier and safer payment
With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing
Support Windows XP and Windows 7 operation system
EMV contactless Level 1 Certificated
Pass PBOC 3.0 contactless Test

Card type RF Card：ISO14443Type A&B

Support Mifare S50、 S70、UL Card

IC card: ISO7816

Support T=0,T=1 SAM card

Power supply DC 5V ± 5%

Operating current <120mA

Reading distance 70mm（depends on card）

Communication interface USB

Operating frequency 13.56 MHz

Environmental conditions Operation：0 ~ 50℃/0 ~ 90%RH （Non condensing）

Storage：-10 ~ 75℃/0 ~ 90%RH （Non condensing）

Weights About 100 g

Info

Weight:

106 g/pcs
