Card reader module for RFID card

Item number:

CRT603-CZ1

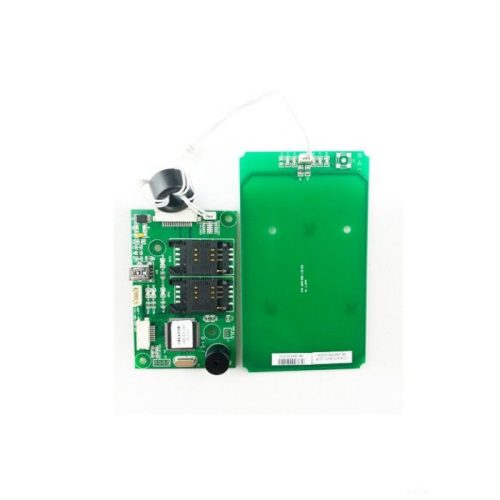

Card reader module for RFID card

Item number:

CRT603-CZ1

NFC kártyák írására/olvasására is képes RFID modul. Vezérlő modul, antenna, LED visszajezés külön panlelen a jobb beépíthetőség érdekében. USB és RS232 -es inteface-el is rendelhető.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

In stock

Details
Data

Details

NFC cards RFID modul with reading and writing capabilities

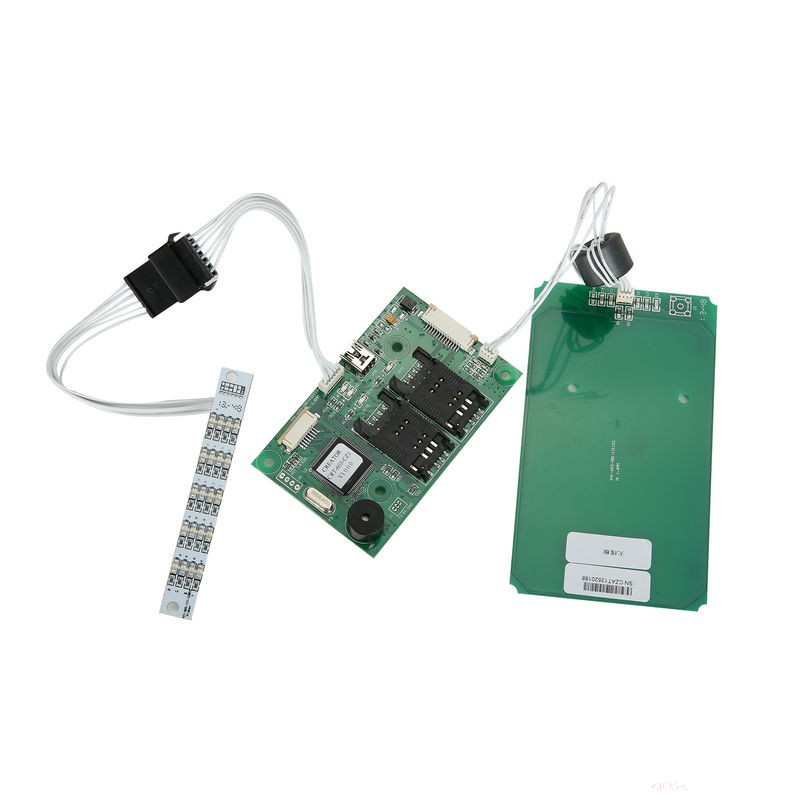

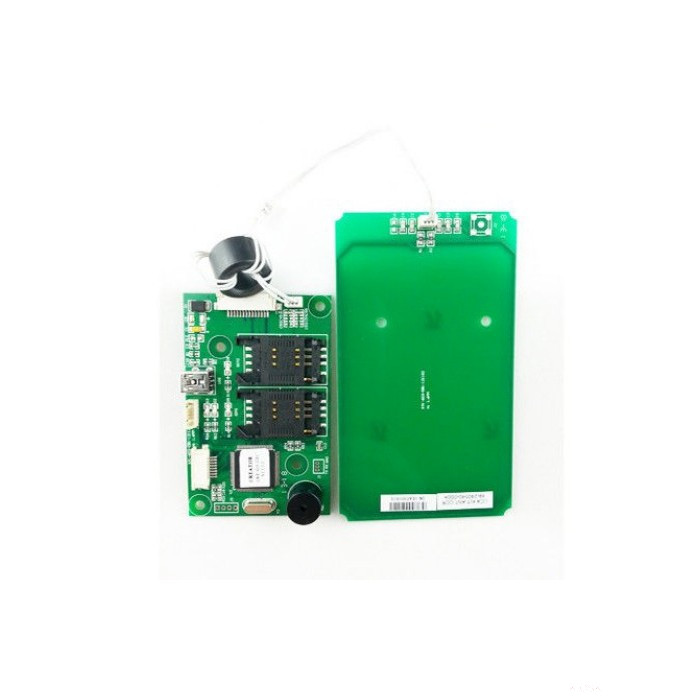

Controling modul arial, LED feedback with separate panel for better built in capability

It can be ordered with RS232 or USB interface

USB2.0 full speed, PC/SC communication, CCID driver, easy operation

Support contactless card conforming to ISO14443-3/4 criterion, such as S50，S70，UL，MIFARETYPEA&TYPEB

Cards anti-collision function : Error and certain information can be reported once more than one card appear simultaneously　

Conforming to banking payment application, to ensure an easier and safer payment

With SAM slot, support two SAM cards ( ISO7816 compliance) reading &writing

Support Windows XP and Windows 7 operation system

EMV contactless Level 1 Certificated

Pass PBOC 3.0 contactless Test

Card type RF Card：ISO14443Type A&B
Support Mifare S50、 S70、UL Card
IC card: ISO7816
Support T=0,T=1 SAM card
Power supply DC 5V ± 5%
Operating current <120mA
Reading distance 70mm（depends on card）
Communication interface USB
Operating frequency 13.56 MHz
Environmental conditions Operation：0 ~ 50℃/0 ~ 90%RH （Non condensing）
Storage：-10 ~ 75℃/0 ~ 90%RH （Non condensing）
Weights About 100 g

Data

ADAT INTERFACE:

USB

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

ÜGYFÉLAZONOSÍTÁS

GYÁRTÓ KIOSK:

CREATOR

KIALAKÍTÁS:

BEÉPÍTHETŐ

Weight:

167 g/pcs
