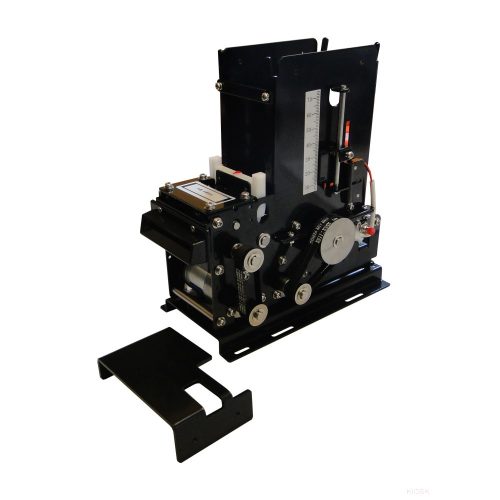

Plastic car rejecting mechanism, without reading or writing capability.
It can be controlled from RS232 or from USB.
Max storing capacity 500 cards.
General Specification
·Power Supply
DC 24V ±5%
·Current Consumption
Static Current: 0.1A
Peak Current During Operation: 1.5A
Normal Current Condition: 800mA
·Card Feeding-Out Speed
> 1Cards/s
·Communication Interface
RS232C, TTL (customized)
·Card Dimensions
Size: 55mm×86mm
Thickness: ≥0.20mm (≥1.2mm require customization )
Ex-work standard card thickness is 0.8 mm
·Weight
2.0 Kg Approx.
·Dimensions
Refer to 4.2 Structure and Dimension Drawings
·Card Stacking Capacity
120pcs in case of 0.76mm standard card
(Available to set to 500pcs max.)
·Card Pre-Empty Detection
7~50pcs ± 2pcs ( Default setting: 15pcs)
·Environmental Condition
Operation: 0~50℃ 0~90% RH ( Without Condensing)
Storage:-10~75℃ 0~90% RH ( Without Condensing)
·Life Time
50,000 times
( In the condition: 20±5%, 35~60%RH, ≤ 1pcs/min)
