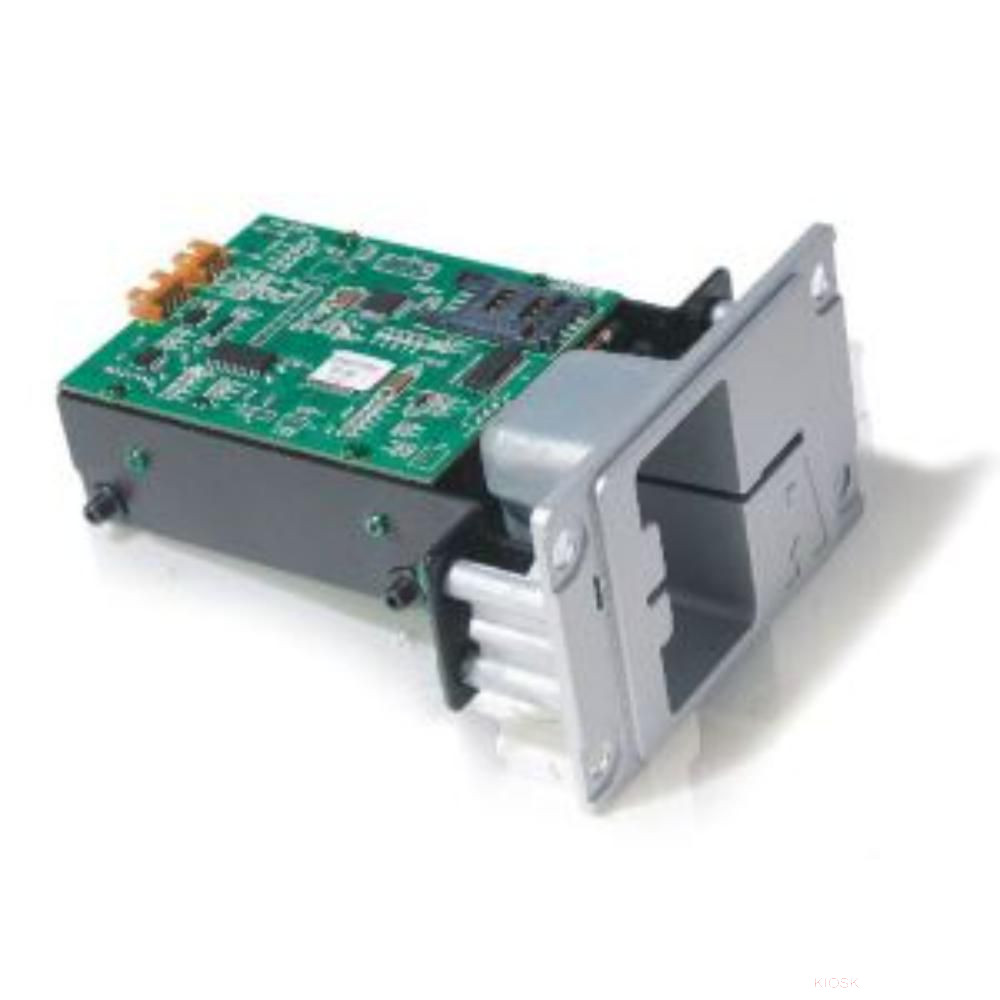

Card reader mechanical (RS232/USB, RF CARD R&W, MAG CARD Read, 5V)

Item number:

CRT288-K001-EQAY

Card reader mechanical (RS232/USB, RF CARD R&W, MAG CARD Read, 5V)

Card reader mechanical (RS232/USB, RF CARD R&W, MAG CARD Read, 5V)

Item number:

CRT288-K001-EQAY

CRT288 kártyaolvasó. Manuális kártyamozgatás. fém előlap. MAG kártya olvasó, IC kártya iró olvasó RS232 vagy USB interface. Többféle előlap és felszereltség.

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available to order

Details
Data

CRT 288 Card reader

Item Specification

Power Input: DC 5V ±5% , USB power supply

Power consumption

- Static Current: 50 mA

- Peak Current： 200 mA I

- Interface RS-232 ; USB 2.0 interface

- Card Dimension    Width:53.92～54.18 mm，

  Length：85.47～85.90 mm

  Thickness: 0.76～1mm（Ex-work 0.76mm）

Life Time Dip Switch： 500,000 times Min

IC Contact：300,000 times Min

Error Rate IC Card ：1/1000 times

  Notes：Standard IC cards

MTBF More than 100,000 hours（Only electronic part）

Notes：250 times/day，25day/Month，300 hours/Month

Environment Operation: 0℃～50℃, 0～90 % RH ( Non-condensing )

Storage: -25℃～80℃, 0～95 % RH ( Non-condensing )

Reliability A. Vibration: No defect in all items of the characters under normal condition after exposed 15min.each on X, Y and Z directions of 2mm amplitude, from 10 to 50Hz/min vibrate.

  B. Shock:No defect in all items of the characteristics under normal condition after shocked one time on X, Y and Z directions of 294M/s2, 11ms peak acceleration shock.

Firmware Download IAP Net weight Approx 0.2 Kg（Exclude package）

ADAT INTERFACE:

RS232C

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

ÜGYFÉLAZONOSÍTÁS

MŰVELET:

ELFOGADÁS

GYÁRTÓ KIOSK:

CREATOR

KIALAKÍTÁS:

BEÉPÍTHETŐ

Weight:

600 g/pcs
