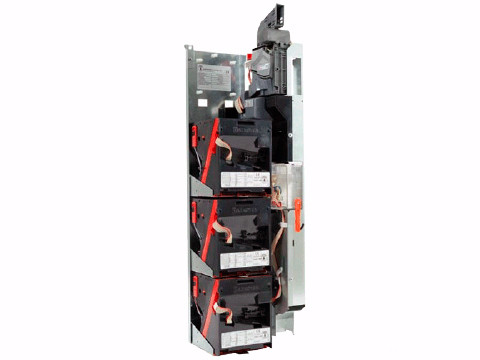

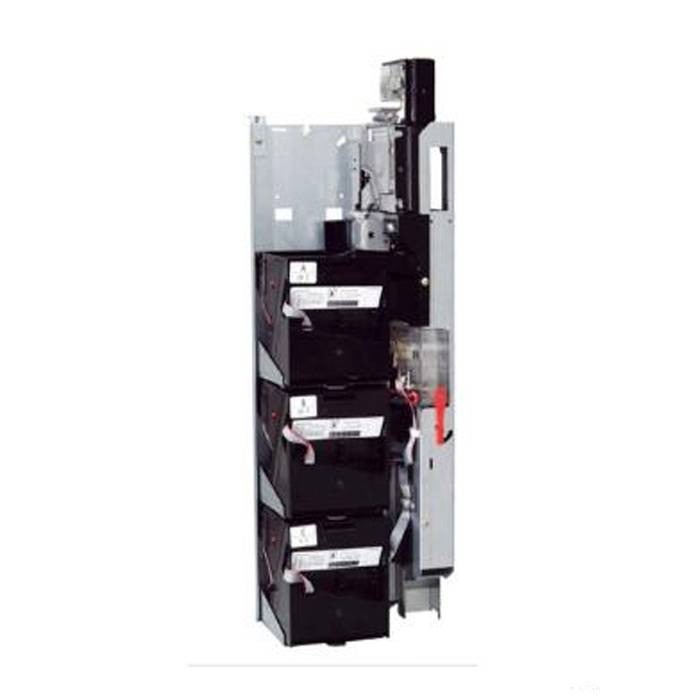

What are the Combo tower (AZKCOMBOT) technical specifications?
- product: azkoyen combo tower coin handling system
- item number: azkcombot
- function: integrated coin-in/coin-out module; validation, active sorting, escrow, coin return path
- payout: 3 hoppers enabling up to 6 separate coin denominations for payout
- interface: cctalk (product page also shows parallel)
- power input: 24 V DC
- dimensions: 705 mm (h) × 212 mm (w) × 220 mm (d)
- weight: 2.674 kg/pcs
- recommended operation: indoor 10–40 °C
- marked use/operation: vending; recycling
What do you gain with an integrated coin-in and coin-out module?
When your cash flow requires both coin acceptance and accurate change payout, integration matters: the full coin path can be controlled as a single system. High-speed coin validation, active sorting and a defined return path help keep transaction time short and payout consistent. Escrow functionality adds a clear decision point: coins can be held until the payment is confirmed, then released to the cashbox path; if the process is cancelled or interrupted, coins can be returned to the user. This supports a predictable user journey and helps reduce disputes in everyday operation. The 3-hopper architecture also enables a more flexible coin-float strategy and supports multi-denomination payout with fewer manual interventions.
Why do active sorting and multi-denomination payout matter?
Active sorting routes accepted coins into the hoppers strategically, supporting predictable recycling and change availability. This is especially valuable when traffic varies across the day: you want to avoid “no change available” interruptions during peak hours. Multi-denomination payout adds operational flexibility because you can implement a more efficient payout strategy and keep coin float stable even when coin mix changes across locations.
Selection criteria: what should you verify before ordering?
- denomination strategy: which coins need the highest payout capacity
- traffic model: peak transactions, payout ratio and expected coin movement
- integration: ccTalk compatibility, wiring and controller-side protocol handling
- mechanical planning: 705 × 212 × 220 mm envelope, mounting rigidity and service access to hoppers
- operating environment: indoor 10–40 °C, dust exposure, vibration and stable 24 V DC supply
- operations: refill routine, cash process and verification checks
How do you plan for quality, local support and preventive maintenance?
High availability is achieved through both component quality and disciplined operation. Keep the coin path clean, verify the sorter area and hopper mechanics, and ensure stable power. Design the installation so technicians can access the module quickly for routine checks. Local technical support and a fast service workflow help you recover quickly when diagnostics, stress testing or a module swap is needed.
- scheduled cleaning and visual inspection around the coin path, sorter and hopper area
- operating discipline: temperature, dust and vibration control plus stable 24 v dc power
- test scenarios: acceptance, escrow decision point, coin return and multi-denomination payout
- local service process: diagnostics, swap workflow and documentation support
Supply, logistics and financial options for your project
For complex cash modules, procurement timing and commercial flexibility affect your rollout schedule directly. Align deliveries to project phases and keep room for cash-flow planning.
- local stock and scheduled inbound deliveries aligned to deployment phases
- selectable shipping modes plus customs handling and forwarding for sensitive electronics
- post-payment, multi-currency invoicing and project-specific quotations
Add relevant components to your interest list
If you are comparing options, add not only what you need today but also components that could fit future iterations. Collect your selections into an interest list (cart) and send it at the end of your visit—this speeds up technical alignment, shipping choices and project-specific commercial terms.
FAQ
Why does escrow functionality matter for coin deposits?
Escrow allows accepted coins to be committed only after confirmation and returned on interruption. this creates a clear transaction outcome and helps reduce disputes.
What do industrial coin recycling modules provide beyond entry-level devices?
Typically you get mechanics designed for continuous load, more stable sorting, faster payout and broader denomination handling. developer support and diagnostic options are also common.
How can you reduce “no change available” events?
Use a denomination strategy with a consistent refill routine and tune active sorting so frequent coins are routed into the right hoppers. multi-denomination payout helps keep float stable during peak usage.
What should you prepare to speed up integration?
Confirm cctalk communication on your controller, plan stable 24 v dc power, and ensure service access for cleaning and checks. include multi-denomination payout cases in your test plan.
