I-PRO-RC ID003 HUNGARY 1000 C/B PAYOUT 1,000 & 5,000 HUF 2 X LED BLUE BEZEL INC

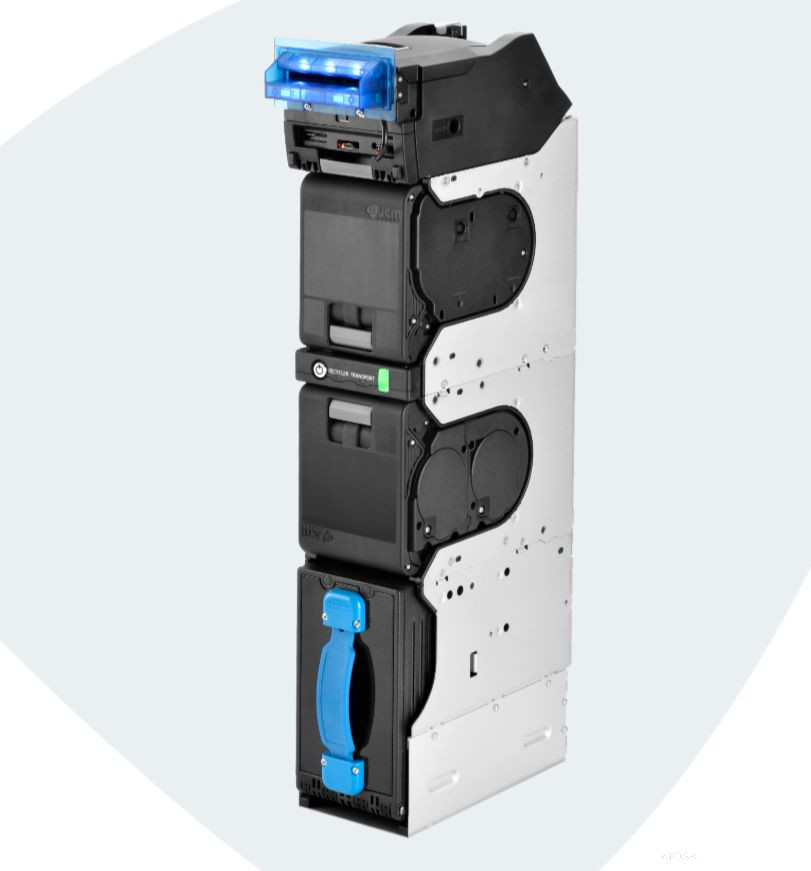

JCM UBA PRO RQ high-capacity four-denomination banknote recycler for self-service kiosks

Key features and benefits

• The JCM UBA PRO RQ is a next-generation compact banknote recycler designed for high-volume cash handling, supporting up to four recycled denominations in a single modular unit.
• Its drum-based recycler unit can wind and store around 30 notes per drum, and in QUAD-RC configuration up to four drums are available for flexible payout of the most frequently used denominations.
• High-speed processing with typical acceptance times of about 3 seconds per note and payout speeds of roughly 2 seconds per note shortens transaction time and reduces queues at busy kiosks.
• The advanced optical sensor package delivers an excellent first-time acceptance rate of around 96%, with reliable counterfeit detection to minimise disputed transactions and fraud attempts.
• Large cashbox options of 400 or 800 notes make the UBA PRO RQ ideal for high-traffic environments where operators want to reduce cash refill frequency and service visits.

Design, construction and security

• A robust metal bezel is available to protect the insertion slot from moisture, dust and foreign objects, making the unit suitable for indoor and appropriately protected outdoor self-service terminals.
• The cashbox, acceptor head and temporary storage compartments can be locked individually, allowing carefully controlled access for cash collection, refilling and maintenance staff.
• A centering mechanism aligns each banknote as it passes through the note path, improving recognition accuracy and helping to reduce jams, even with worn or slightly damaged notes.
• JCM’s patented anti-stringing and anti-pullback technology prevents users from pulling back notes after insertion, improving security against manipulation and fraud.
• The modular design gives quick access to the recycler drums, note path and acceptor head, so that service teams can replace modules or clear jams with minimal downtime.

Technical specifications overview

• Typical first-time acceptance rate is approximately 96%, enabled by multi-point optical validation and sophisticated note analysis.
• Up to 32 denominations can be configured, allowing the UBA PRO RQ to handle broad denomination sets and multiple currencies in kiosk, retail or gaming environments.
• Supported banknote width is up to about 85 mm, with lengths following JCM’s official specification so that various regional currencies can be processed reliably.
• Cashbox capacity is 400 or 800 notes depending on the chosen configuration, while the recycler drums can store around 30 notes per drum for recycled denominations.
• Supply voltage is 24 V DC with typical current consumption between 0.5 and 2.8 A depending on operating mode and payout cycles.
• Approximate mounting dimensions are 450 × 225 × 106 mm, providing a compact footprint that fits easily into kiosk cabinets and OEM housings.
• Recommended operating temperature range is roughly 5 °C to 55 °C with non-condensing humidity, suitable for climate-controlled indoor and protected outdoor locations.
• Unit weight is around 9.9 kg, giving a stable industrial-grade construction while remaining manageable for installation and servicing.
• The ID003 interface supports configuration for HUF, EUR, Serbian Dinar and other currencies, ensuring straightforward integration in Central and Eastern European cash environments.

Applications and system integration

• Ideal for high-traffic vending machines, transport ticketing kiosks, parking payment terminals, medicine vending machines, access-control points and unattended retail payment stations.
• Four-denomination recycling allows operators to keep the most frequently used notes in circulation within the machine, optimising the cash float and reducing the need for external replenishment.
• Recycled notes can be used for change payout, helping to maintain availability of lower denominations and improving the customer experience during cash transactions.
• The ID003 protocol ensures easy integration with existing controller electronics and supports multi-currency setups in mixed cash environments.
• Fast acceptance and dispenser-style payout help to increase kiosk throughput, making the UBA PRO RQ a strong choice for operators who want to maximise uptime and revenue.

Operation, maintenance and reliability

• The sealed note path and drum-based recycler design help to protect internal components from dust and contamination, supporting stable operation in demanding locations.
• Modular construction gives technicians quick access to the note path, drums and transport unit so that jams can be cleared quickly and key modules can be swapped on site.
• Preventive maintenance, such as the regular use of cleaning cards and periodic dust removal from rollers and sensors, helps to maintain high acceptance rates over the long term.
• A lockable, removable cashbox supports secure, auditable cash collection procedures, separating cash-handling workflows from general service tasks.
• Modern control electronics support firmware updates and the loading of new country profiles, helping to future‑proof the investment as requirements and currencies evolve.

FAQ – JCM UBA PRO RQ banknote recycler

• Question: How many denominations can the JCM UBA PRO RQ recycle?

  Answer: The unit can be configured for 2 or 4 recycled denominations, with the QUAD-RC configuration supporting up to four different banknote values inside a single compact recycler module.
• Question: What is the typical storage capacity of the recycler and cashbox?

  Answer: Each recycler drum can store around 30 notes, and in addition the main cashbox holds approximately 400 or 800 notes depending on the selected configuration, making the system suitable for high-throughput applications.
• Question: For which types of applications is the UBA PRO RQ recommended?

  Answer: It is recommended for any high-traffic self-service environment where secure, reliable cash handling is critical, such as ticketing kiosks, parking and transport payment terminals, vending and gaming machines or access-control points.
• Question: Under what environmental conditions does the unit operate reliably?

  Answer: The UBA PRO RQ is typically specified for operation in a temperature range of about 5 °C to 55 °C with non-condensing humidity, which suits indoor and appropriately protected outdoor enclosures.
• Question: What maintenance is required to ensure long-term reliability?

  Answer: Regular cleaning of the note path with dedicated cleaning cards, together with periodic dust removal from rollers and sensors, is recommended to keep acceptance rates high and reduce the risk of unexpected downtime.
