I-PRO-RT ID003 HUNGARY 1000 C/B PAYOUT 1,000 & 5,000 HUF 2 X LED BLUE BEZEL INC

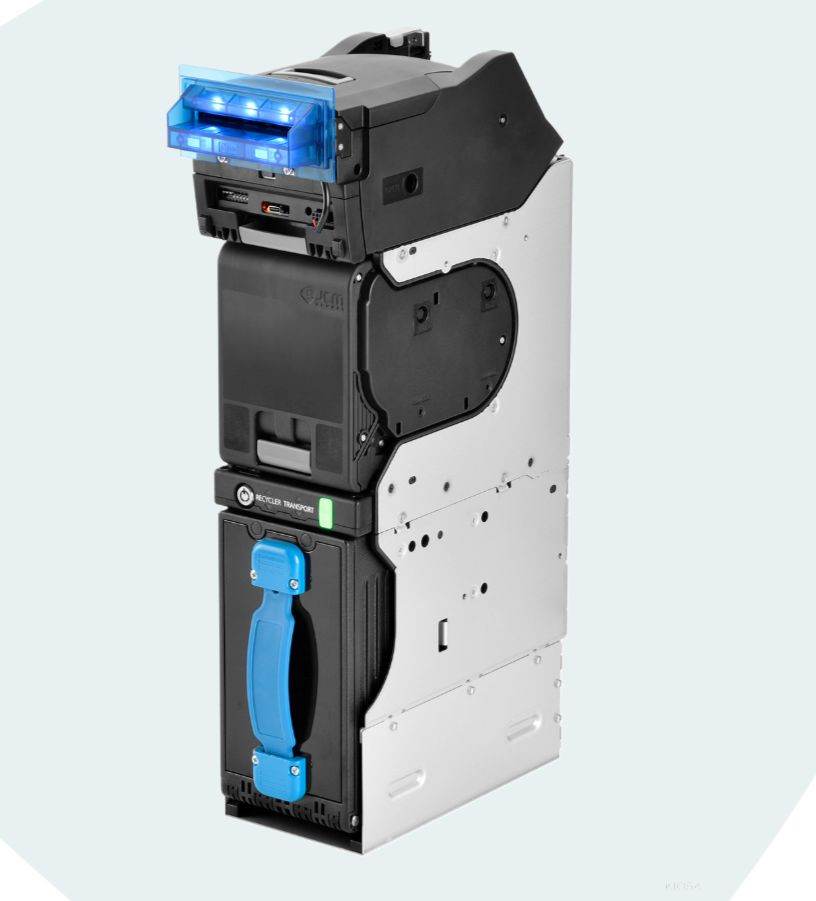

JCM I-PRO-RC banknote recycler module for high-traffic payment terminals

Article number 47202884, I-PRO-RT ID003 HUNGARY 1000 C/B PAYOUT 1,000 & 5,000 HUF 2 X LED BLUE BEZEL, is a JCM I-PRO-RC high-capacity banknote recycling system designed for ticketing, parking and payment terminals. The module combines banknote validation, temporary storage, recycling and final stacking into a single compact unit, helping operators reduce float requirements and day-to-day cash handling costs. Two recycling chambers can hold up to roughly 100 notes each for instant payouts, while the secure cash box offers around 400–800 notes capacity depending on configuration. By recycling incoming notes for future payouts, the unit reduces the need for manual replenishment, keeps equipment running longer between service visits and provides clear user feedback through its blue LED bezel.

Design and main technical features

• Compact, modular banknote recycler consisting of a validator head, two recycler boxes and a lockable, removable cash box.
• Banknote acceptance and stacking speed is approximately 3 seconds per note, supporting high transaction volumes in unattended terminals.
• According to distributor and manufacturer information, the acceptance rate is around 96%, with support for up to 32 denominations.
• Maximum note width is about 85 mm, and typical accepted note length ranges from roughly 120 to 170 mm, depending on country setup.
• Typical outside dimensions with bezel and cash box are around 450 × 225 × 106 mm, with a weight of about 9.9 kg per unit.
• Power requirements are 24 V DC with approximately 0.5–2.8 A consumption, making it compatible with most kiosk and ticketing power supplies.

Banknote handling, recycling and capacity

• The JCM I-PRO-RC features two high-capacity recycler chambers, each holding up to about 100 notes of two payout denominations for instant change.
• The final cash box can store roughly 400 or up to about 800 notes depending on the cassette configuration, making the unit suitable for intensive use.
• Roller Friction Recycling Technology enables direct bulk refilling of banknotes into the recycler chambers, speeding up maintenance and reducing downtime.
• Advanced anti-stringing technology protects the terminal against pullback and fishing attempts, increasing the overall security of the payment system.
• Centered note guidance and multi-channel sensor technology support reliable counterfeit detection and high first-time acceptance rates.
• Properly configured, the device can also validate barcode coupons and tickets within the specified note size range.

Integration, communication and operating conditions

• The unit supplied under article 47202884 uses the ID003 interface, a widely adopted communication standard in parking, ticketing and kiosk applications.
• Distributor data recommends operation in indoor, covered environments at approximately 10–40°C for long-term reliability.
• Manufacturer specifications indicate an extended operating range of roughly 5–50°C with dust and splash protection, suitable for integration into protected outdoor cabinets.
• Lockable, independently removable modules (validator head, recycler boxes and cash box) simplify cash removal and maintenance while keeping security at a high level.
• The blue LED bezel provides clear visual feedback about note insertion, acceptance and error states for end users.

Applications and operator benefits

• High-traffic ticket vending machines in public transport and event venues where recycled notes can be used for instant payouts.
• Parking pay stations and pay-on-foot terminals requiring two payout denominations and long operating times between refills.
• Self-service kiosks and payment terminals where automated banknote handling reduces manual cash collection and replenishment tasks.
• Gaming and amusement environments that need fast payouts combined with strong anti-stringing security.
• Projects aiming to automate cash handling, reduce service time and provide cost-effective, long-term operation in demanding duty cycles.

FAQ – JCM I-PRO-RC banknote recycler module

• How many denominations can the I-PRO-RC handle?

  According to available specifications, the unit can be configured for up to 32 denominations, allowing flexible setups with local currencies and additional payout notes.
• What are the recycler and cash box capacities?

  Each recycler chamber holds around 100 notes of one denomination, while the final cash box typically stores about 400–800 notes depending on cassette size and configuration.
• In which environments should article 47202884 be used?

  The ID003 HUF version is primarily intended for indoor, protected environments such as ticketing kiosks and parking pay stations, ideally within a 10–40°C temperature range.
• How does the I-PRO-RC reduce cash handling costs?

  By recycling incoming notes for future payouts, the module lowers float requirements, reduces refill frequency and shortens service visits, which in turn cuts operational expenses.
• What security features protect against fraud attempts?

  The device combines advanced anti-stringing mechanisms, multi-sensor banknote validation and a lockable, removable cash box to protect against note fishing, pullback attempts and unauthorised access.
