What are the technical specifications of the JCM G00228 external harness id003 uba/wba/eba data cable (item number: 47202485)?

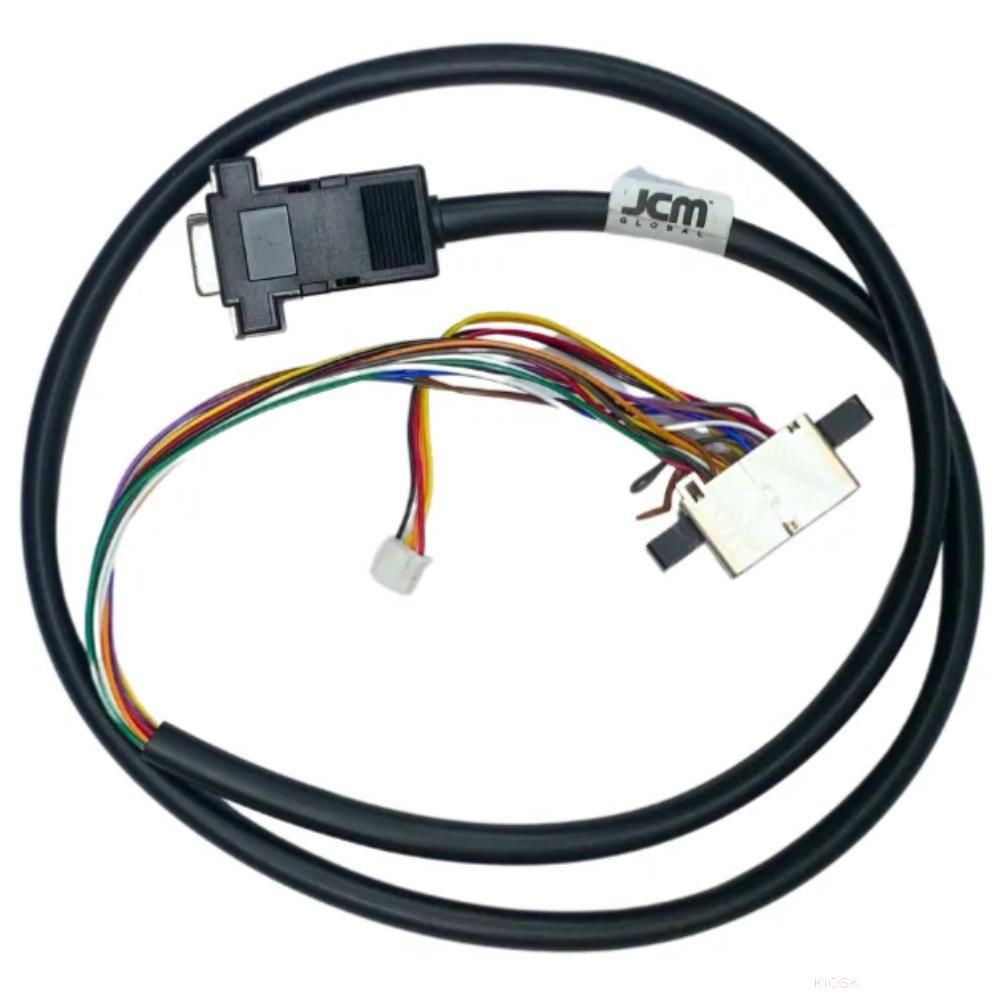

- product: JCM G00228 external harness id003 uba/wba/eba data cable
- short label: ivizion id003 data cable
- purpose: external harness / data cable between a banknote acceptor unit and the controller
- compatibility: id003 communication, intended for uba/wba/eba-labeled units
- weight: 71 g/pcs
- category: accessory part for cash handling
Where do you use an id003 data harness during system integration?
Use this harness when you need consistent, repeatable communication wiring between the banknote acceptor and the host system. In industrial enclosures, wiring is not an afterthought: loose connectors, sharp bends, and poor routing can create intermittent faults, incorrect status reporting, and unnecessary site visits. A dedicated harness supports standardized endpoints and a cleaner cable path, so the installation is easier to audit and field replacement is quicker when a component must be swapped.
How does robust cabling support continuous operation?
Serial-style peripheral communication depends on signal integrity. Sensible grounding, noise-aware routing and proper strain relief reduce the risk of communication errors, especially when the enclosure also contains power supplies, motors, printers or relays. An industrial harness usually aims for consistent connector mating and a service-friendly design, helping logs and diagnostics remain meaningful. When status signals arrive reliably, you can diagnose issues faster, plan preventive maintenance windows, and reduce the likelihood of repeated visits caused by cable-related faults.
What should you pay attention to during installation?
Routing and strain relief
Avoid sharp edges and tension at the connector. Secure the harness with mounting points or ties so vibration does not work connectors loose over time. Leave a service loop to enable fast module swaps, and plan access so the harness will not snag when doors or panels are opened.
Noise and grounding practices
Keep distance from high-current wiring, and cross power lines at right angles where routing must intersect. Stable grounding and clean power reduce the probability of communication faults, especially if the harness runs across longer internal paths. In dusty environments, keep connectors clean and protected to avoid contact issues.
Selection criteria: a checklist for choosing a banknote-acceptor data cable
- protocol fit: id003 alignment and the target unit family (uba/wba/eba)
- connector type and locking: correct mating, retention and serviceability
- path length and slack: sufficient margin for assembly without tension
- noise exposure: routing plan, grounding approach and distance from noisy loads
- maintenance workflow: fast swap, clear labeling and spare parts planning
Quality, preventive maintenance and local technical support
- inspect connector retention and contact cleanliness on a schedule, because loose contacts can trigger intermittent communication errors.
- check the harness jacket for abrasion or repeated bending; replace early to prevent on-site failures.
- document routing and labeling so field interventions stay fast and consistent.
- use local technical support and service capability to reduce downtime and keep maintenance windows predictable.
Which procurement and financing options help your rollout?
- stock availability and scheduled inbound delivery aligned with installation milestones
- selectable shipping methods, plus customs handling and freight forwarding when needed
- post-payment terms and invoicing in foreign currency to fit corporate processes
- project-tailored quotations when you plan multiple peripherals and spare harnesses together
CTA: add it to your interest list and send the list at the end of your visit
Add the JCM G00228 external harness id003 uba/wba/eba data cable to your interest list and also collect any accessories that could be useful for future rollouts or service work. Send the list at the end of your visit so compatibility, routing needs, delivery options and payment terms can be aligned in one step, and you receive a quotation tailored to your project scope.
- note the target unit family and the communication requirement (id003)
- share your expected routing constraints and service access needs
- tell us if you want a spare harness for rapid on-site replacement
FAQ
Why is industrial cabling critical for banknote-acceptor communication?
Because stable signal transfer and secure connector fit reduce intermittent faults, so you get fewer false alarms and more consistent transaction handling.
What can an industrial harness provide compared to basic wiring?
You typically get better strain relief, more consistent connector mating, faster service replacement and improved noise handling, which supports long duty cycles.
When does it make sense to keep a spare data harness in stock?
If your site runs high traffic or recovery time is critical, a spare harness can shorten restoration because swapping is faster than troubleshooting a damaged cable.
Which operating conditions help extend harness lifetime?
Fixed routing, vibration reduction, avoiding sharp edges, and keeping connectors clean together reduce the risk of contact and breakage issues.
