I-PRO-RC ID003 HUNGARY 1000 C/B PAYOUT 1,000 & 5,000 HUF 2 X LED BLUE BEZEL INC

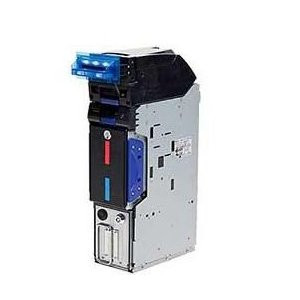

JCM iPRO-RC high-capacity banknote recycler for self-service payment kiosks

Key features and benefits

• High-capacity banknote recycling system specifically designed for high-traffic ticketing, payment and self-service terminals where fast cash handling is essential.
• Typical banknote handling speed of around 3 seconds per note, reducing transaction time and shortening queues at kiosks and unattended terminals.

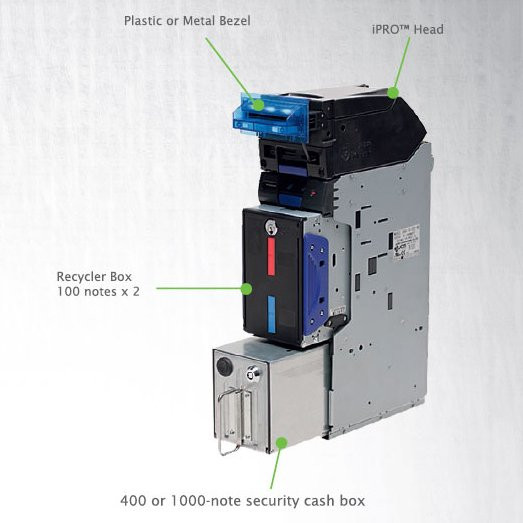

• Two large recycling chambers, each capable of holding up to about 100 notes of one denomination, enabling instant payout in two different denominations.
• Final cashbox capacity of 500 or 1000 notes depending on configuration, with optional 400 and 800 note cassettes to match different operating profiles.
• Excellent first-time acceptance rate of approximately 96% with an advanced sensor package and counterfeit detection, reducing the number of disputed transactions.

Design, construction and security

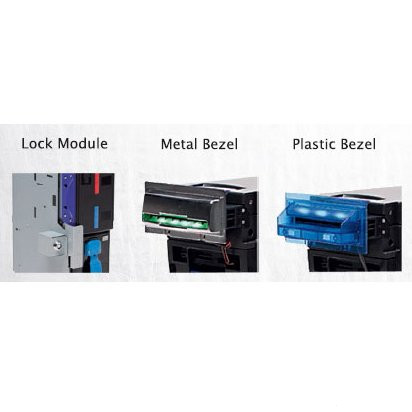

• Robust design with optional metal front panel that protects the unit against moisture, dust and foreign objects, making it suitable for protected outdoor and intensive-use environments.
• Cashbox, note acceptor and temporary storage compartments can be locked individually, allowing finely controlled access during cash collection and service.
• Advanced multi-point note recognition system with note centering mechanism to position banknotes accurately for validation and counterfeit checks.

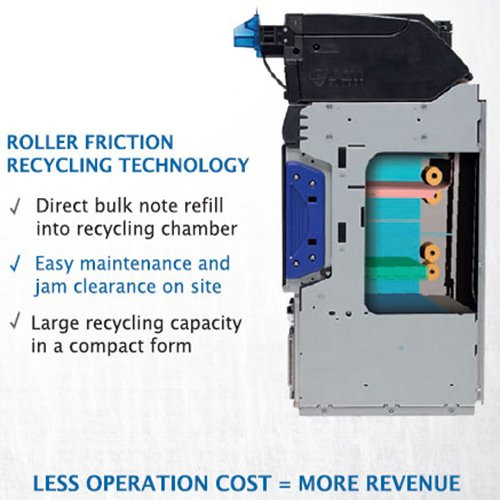

• Roller Friction Recycling Technology provides reliable transport and gentle note handling, significantly reducing the risk of jams and mechanical stress.
• Integrated anti-stringing and anti-pullback protection prevents fraud attempts where users try to pull banknotes back after insertion, increasing machine security.

Technical specifications overview

• Supported banknote sizes include widths up to approximately 85 mm and lengths according to the official JCM specification, allowing use with a wide range of currencies and ticket formats.
• Up to 32 different denominations can be configured, enabling multi-currency operation or a broad denomination set in a single compact device.
• Power supply: 24 V DC with a typical current consumption in the 0.5–2.8 A range depending on operating state and payout cycles.
• Mounting dimensions of the holding frame are around 450 × 225 × 106 mm, allowing easy integration into kiosk cabinets and OEM housings.
• Unit weight is roughly 9.9 kg per device, combining compact size with a solid industrial-grade mechanical structure.
• Recommended operating temperature range typically spans from 5 to 50 °C with non-condensing humidity, ideal for climate-controlled indoor or protected outdoor locations.

Applications and system integration

• Ideal for high-traffic ticket vending machines, transport ticket kiosks, parking payment terminals, gaming machines and unattended retail payment points.
• Thanks to the ID003 interface, the unit can be integrated easily with existing controllers and communicates with the host system via an established industry protocol.
• Can be configured for HUF, EUR, Serbian Dinar and other regional currencies, making it well suited for Central and Eastern European cash environments.
• The dual recycling chambers support instant payout in two denominations – for example for change dispensing in lower-value notes – improving overall cash logistics.
• High storage capacity and reliable payout reduce refill frequency, lower operating costs and minimise service visits to the field.

Operation, maintenance and reliability

• Modular construction provides quick access to the note path and recycling unit so that occasional jams can be cleared with minimal downtime.
• Regular cleaning of the note channel and sensors – for example using dedicated cleaning cards – helps to maintain high acceptance rates and stable performance over time.
• The lockable, removable cashbox enables secure and well-documented cash collection processes, separating service access from cash-handling tasks.
• Industrial-grade components and proven mechanical design allow reliable 24/7 operation in demanding kiosk and gaming environments.
• Modern control electronics support firmware updates and country profile downloads, making the investment future-proof as requirements or currencies evolve.

FAQ – JCM iPRO-RC banknote recycler

• Question: What kind of applications is the iPRO-RC designed for?

  Answer: The iPRO-RC is intended for high-traffic ticketing kiosks, payment terminals, gaming machines, parking and transport kiosks where fast, secure and reliable cash handling is required.
• Question: How many denominations and notes can the unit handle?

  Answer: The device can be set up for up to 32 denominations; each of the two recycler chambers typically holds around 100 notes, while the main cashbox can store approximately 400–1000 notes depending on the cassette option.
• Question: Is the unit suitable for handling HUF and EUR banknotes?

  Answer: Yes, based on the ID003 interface and the appropriate country profiles, the iPRO-RC can be configured for HUF, EUR, Serbian Dinar and other currencies, making it suitable for both Hungarian and international installations.
• Question: What environmental conditions are recommended for reliable operation?

  Answer: The iPRO-RC typically operates reliably in a 5–50 °C temperature range with non-condensing, medium humidity, so it is recommended for indoor or protected outdoor kiosks with adequate environmental control.
• Question: What maintenance is required to ensure long-term reliability?

  Answer: Regular removal of dust, use of cleaning cards on the sensor area and periodic inspection of the note path are recommended. These simple tasks help preserve high acceptance rates and reduce the likelihood of unexpected downtime.
