The validation and denomination process is powered by Contact Image Sensor (CIS) Technology that scans 75 times more data points than any competitive product and captures the full image of a banknote or a ticket. It optically centers banknotes and eliminates the need for mechanical centering, dramatically improving banknote-to-banknote-processing speed. Inside iVIZION® is the best security combination in gaming: a combined optical and patented mechanical anti-stringing device that detects and prevents manipulation or mechanical cheating.
It runs faster with a powerful processor solely dedicated to banknote evaluation, resulting in a 99+ percent acceptance rate and the fastest banknote-to-banknote processing speed. It is self-calibrating, accepts banknotes up to 85mm wide and has a sealed banknote path with dirt and liquid resistant design, resulting in less service-related down time.

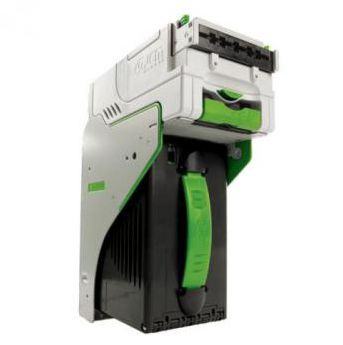

Quite simply, iVIZION® is the best, most powerful bill validator available, your best defense against counterfeiting and your fastest way to profits.
- Contact Image Sensor (CIS) Technology
- Optical banknote centering
- Optical/mechanical anti-threading
- Two high-speed processors
- 100% gaming protocol compatible
- Self-calibrating
- RFID ICB
- ICB memory module
- Customizable ICB reporting
- Web-enabled ICB reports
- Easy-entry 85mm wide bezel
- Sealed banknote path
Dimensions (H x W x D in inches)
Power Requirements
- 5.4A at 12V
- DC 12V (-10%) ~ DC 24V (+10%)
Memory
- 64 Mbit Flash memory standard expandable up to 192 Mbit Flash with optional expansion board
Cash Box Capacity
- 600 notes (standard)
- 1000 notes (optional)
Cash Box Dimensions (H x W x D in inches)
- 600 note: 7.5 x 4.1 x 6.2
- 1000 note: 7.5 x 4.1 x 8.5
Software
- Upgrades released for currency changes and security measures
ICB Is a standard feature of iVIZON
