Curved PCT multitouch displays with addressable LED edge lighting for high-impact terminals

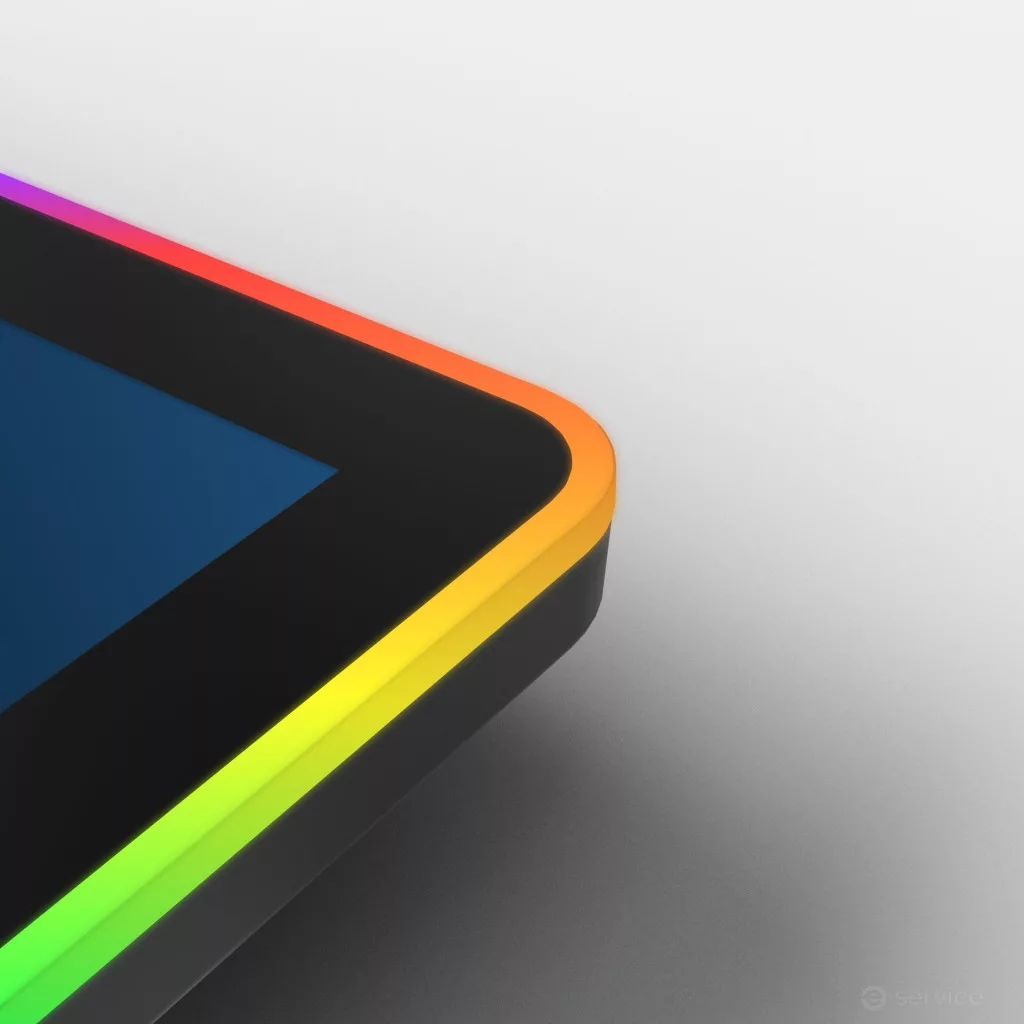

Curved, closed‑frame industrial touch displays are the right choice when you need both visual impact and long-term reliability. In this category you work with J‑curved and S‑curved PCT multitouch displays designed for high-traffic, demanding public environments. Typical configurations include 4K resolution, an OSD interface for quick adjustments, and multiple signal inputs (DVI/VGA/DisplayPort). Multi‑side addressable edge LEDs add a striking “halo” effect and can be synchronised and controlled via Arduino‑compatible kits or an external driver—useful for immersive gaming aesthetics, clear status indication, or consistent brand lighting across a fleet of terminals.
Where these displays shine
- Casino and betting/gaming: slot cabinets, multi-screen stations and interactive terminals where curvature and edge lighting immediately attract attention.
- Retail and digital signage: promo counters, experience zones and interactive information points, where multitouch speeds up browsing and configuration.
- Self-service and kiosk systems: check-in/out and customer guidance applications that benefit from precise touch and robust construction.
What you can build within the family

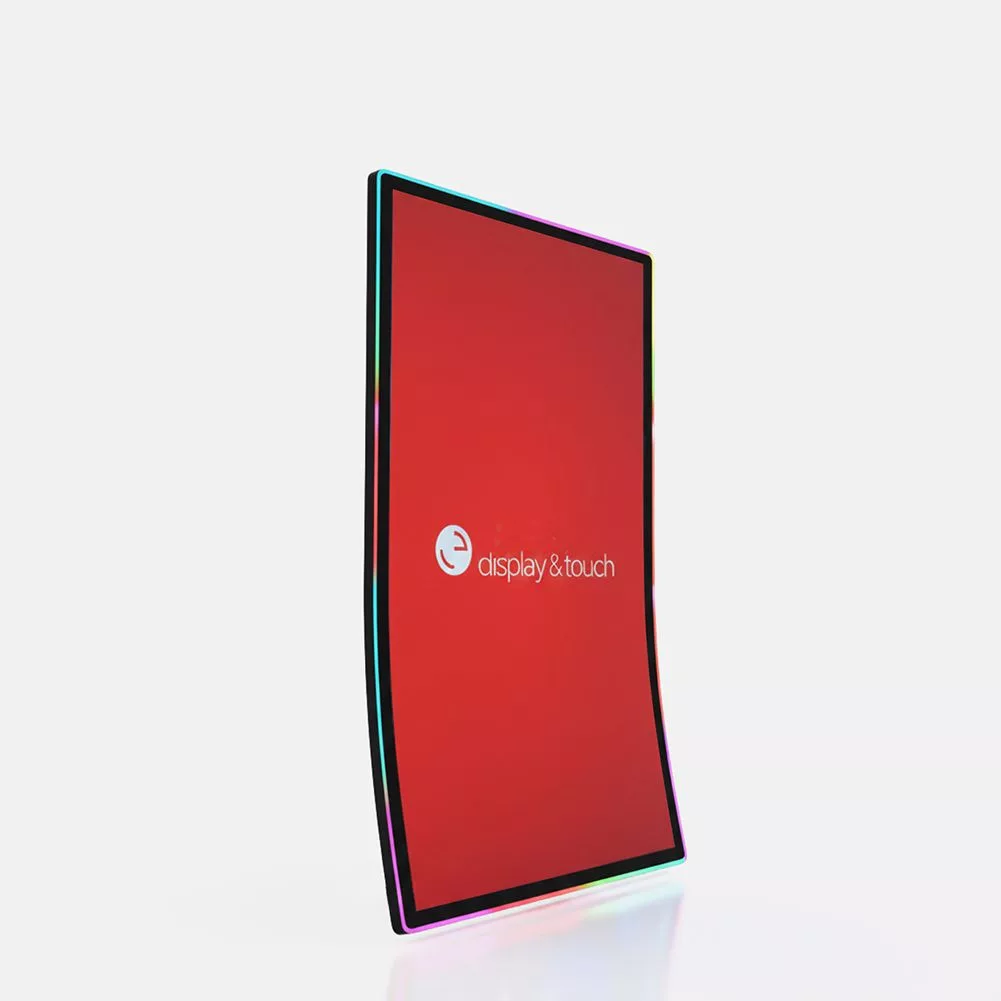

You can choose size and curvature to match your cabinet or installation. Examples include the 55″ J‑Curved Eclipse Glow multitouch display with 4‑sided LEDs, the 49″ J‑Curved PCT touch display, the 43″ J‑Curved PCT touch display and the 43″ S‑Curved PCT touch display. Projects often pair these with matching “Eclipse” edge-lit models such as the 55″ 4K Eclipse Glow multitouch display, plus 32″ Eclipse Glow displays (PCT touch or protective-glass variants) and 27″ Eclipse/Eclipse Glow displays (PCT touch or protective-glass variants). This helps you roll out a consistent look and user experience across different machine sizes.
Quality, local support and service throughout the lifecycle
Specifications matter, but the full lifecycle matters more. Fast access to European-built production, local technical support and quick repair turnaround reduces project risk and downtime. Having drawings, datasheets and manuals available on request helps integration teams validate mounting, cabling and power early. In daily operation, routine maintenance is essential: keep ventilation paths clean, ensure stable power delivery, verify mounting and cable strain relief, and maintain proper operating conditions (temperature, dust, humidity and mechanical stress). These basics directly increase uptime and extend service life.
Supply and financing options that keep projects moving
Plan procurement with logistics and financing in mind. Depending on your rollout, you may benefit from stock availability, scheduled inbound shipments, selectable shipping methods, end-to-end customs handling and freight forwarding, and post-payment options. Many projects also require invoicing in foreign currency and tailored, project-specific quotations—especially when you mix sizes, LED side configurations or customisation requirements in one delivery plan.
Technical specification summary – 55″ J‑Curved Eclipse Glow multitouch display
| Parameter | Value |
|---|
| Screen diagonal | 55" |
| Aspect ratio | 16:9 |
| Resolution | 3840 × 2160 |
| Colours | 16.7 M |
| Luminance | 400 nits |
| Response time | 8 ms |
| Viewing angle | 89:89:89:89 |
| Contrast ratio | 1000:1 |
| Inputs / I/O ports | 2× DVI, DisplayPort (product page also lists DVI/VGA/DP) |
| Supply voltage | 24 V or 220 V |
| Mounting points | Back of the frame |
| Cover glass OD | 1269.5 (H) × 745.6 (V) |
| Active area | 1210.2 (H) × 681 (V) |
| Corner radius | R4 |
| Glass thickness | 4 mm |
| Combined weight | 28 kg |
| Overall dimensions | 1269.5 (H) × 745.6 (V) × 52.7 (D) |
| Touch type | PCT Touch |
| Touch interface | USB |
| Touch controller | ILI2315 |
| Max touch points | 10 |
| Supported OS | Windows 7/8/10/11, Linux 3.0.8+, Android, macOS 10.11–10.14 (Windows XP: mouse mode, single touch) |
| LED type | SMD5050 |
| LED voltage | 12 V |
| LED density | 60 LEDs/m |
| LED orientation | Front and side facing on all sides |
| Connector | Molex 43020-0800 |
| LED driver options | Arduino kit: yes; internal mounting option: yes |
| Documents | 2D/3D drawing, datasheet, user manual on request; RoHS/CE/UKCA on request |
FAQ
Why choose a curved (J‑curved or S‑curved) form factor?
Curvature improves perceived immersion and helps the screen blend into cabinets or counters, keeping users visually engaged for longer.
What does PCT multitouch mean in practice?
Projected capacitive touch enables responsive, precise multi-touch control, which is essential for interactive gaming, kiosks and rich UI experiences.
How is the edge LED lighting controlled?
Addressable LEDs can be driven via Arduino‑compatible kits or an external controller, typically to create synchronised effects, status indicators or branded ambience.
What should you pay attention to during operation?
Follow power and mounting guidelines, ensure airflow and clean environments, and plan routine inspection/cleaning plus OS compatibility checks to minimise downtime.
