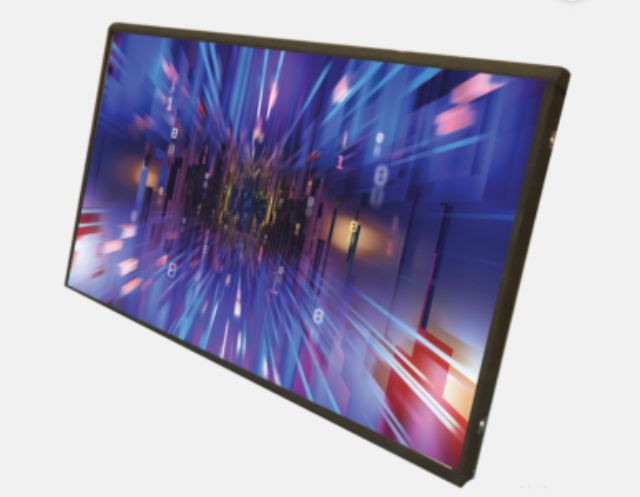

32” open frame indsutial display with frame for easy integration
The Clarity Touch and Display range has been developed to provide manufacturers with maximum product flexibility combined with minimum integration cost. The range features a standard frame design that can be upgraded to incorporate:
The rugged metal frame provides integration points on all 4 back sides and a VESA mount to the back. The screens come equipped with industrial electronics and TFT panels for maximum reliability and performance. The AD board supports standard 3 point connection for VGA/ DVI and DP (Display port) and offers standard 12 volt operation.
- Wide Viewing Angle Display
- VGA / DVI / DP Signal input
- USB B Touch Output
- 100mm VESA Mount to Back
- Mounting Points all 4 Sides
- Option on for Touch
- Standard 12 Volt Operation
- Resolution 1920 x 1080
- Inputs VGA / DVI / DP (1.2)
- Operating Temperature 0°c to 50 °C
- Luminance 250cd/m²
- Contrast Ratio 1000:1
- Display area: 698,4 (W) x 392,85 (H)
- Size data: 706,4 (W) x 466,5 (H) x 78,45 (D)
