Hopper Alberici Hopperone 24V CCTALK STD

Article No.:

30301404

Article No.:

30301404

Nagy teherbírású érmekiadó. Asahi Seiko SH300 5ft érméhez

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available for order

Details
Info

Details

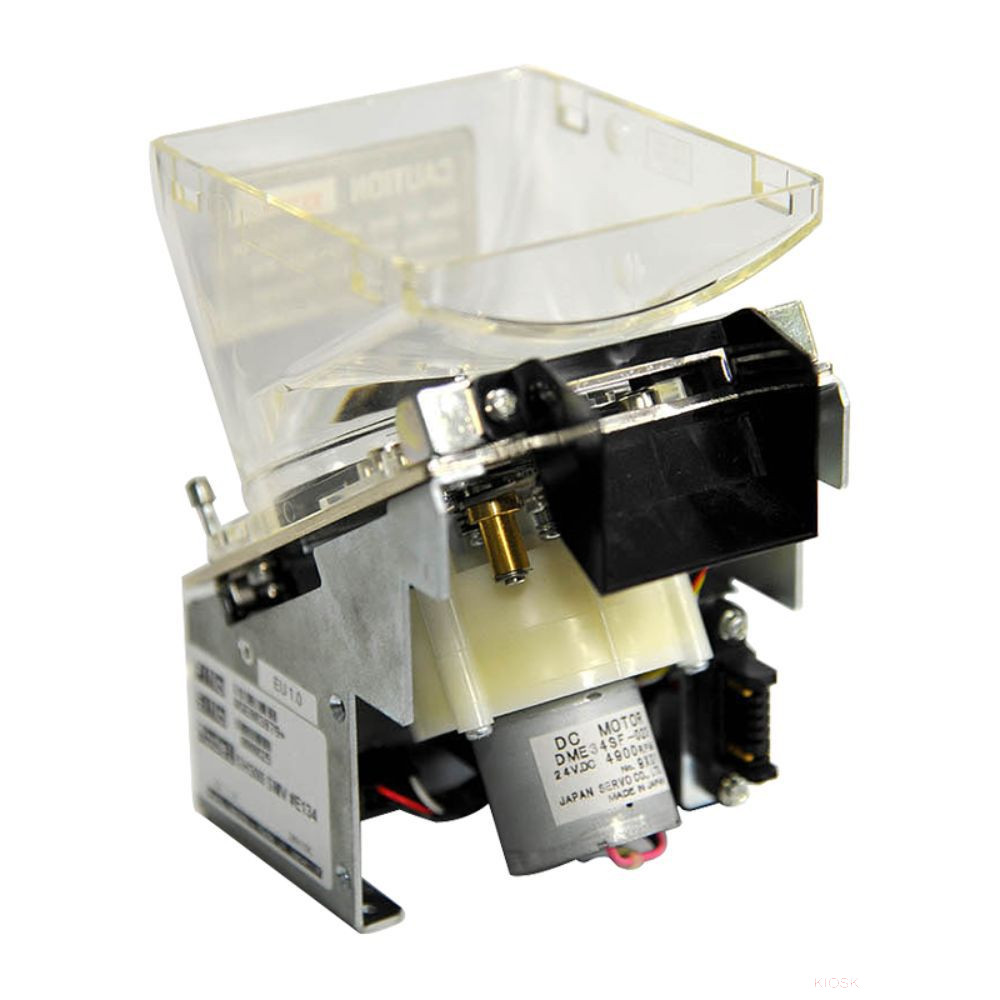

Heavy duty coin hopper Asahi Seiko SH300 for 1EUR coin

The SH-300 has been developed from the successful SH-400, to provide an even more compact solution, whilst retaining most of the SH-400's features.

FEATURES

The SH-300 utilizes Asahi Seiko's CCTalk interface as standard, for communication between the Host Control Unit and the hopper.

A choice of coin discs, ensure that the hopper can give Customers total flexibility, whilst retaining high-speed payout and the legendary Asahi Seiko reliability.

A motor brake with automatic reversal under jam conditions, is standard on the SH-300.

A proximity sensor is fitted as standard for coin counting.

Coin Size Range	Diameter: *17.5mm - 26.7mm Thickness: 1.3mm - 3.1mm
IMPORTANT	A selection of coin discs, ranging from 20mm to 27.5mm, isnavailable. To ensure accurate and reliable dispensing, it is important to selectnthe correct disc size to suit the coin used. *For coins less than 17.5mm diameter, please contact Asahi Seiko (Europe)nLtd Technical Support, as special parts are required.
Hopper Head Capacity	The following table gives examples of average capacities: 20.0mm diameter:260 coins / 22.5mm diameter:170 coins / 26.5mm diameter:190 coins UK 5p coins 18 x 1.73:290 coins / UK 20p coins 21.43 x 1.75:250 coins / UK £1 coins 22.5 x 3.18:170 coins
Dispensing Speed	The dispensing speed of the SH-300 is 400-600 coins per minute. Speed may vary due to loading and the coin dimensions.
Installation	Temperature range: -10°C to +50°C Humidity: 15 - 85% RH (avoid condensation) Location: Indoors within a cabinet Temperature rise: 50ºC maximum Orientation: Mount within 2º of upright
Weight	Approximately 1Kg when empty.
Storage Conditions	Storage temperature: -20ºC to +80ºC without condensation
Mechanical Life	In reliability tests, the standard SH-400 hopper dispensed over 2,000,000 coinsnwithout mechanical failure.

Info

ADAT INTERFACE:

CCTALK

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

FIZETŐTERMINÁL

MŰVELET:

KIADÁS

GYÁRTÓ KIOSK:

EGYÉB

Weight:

2.12 kg/pcs
