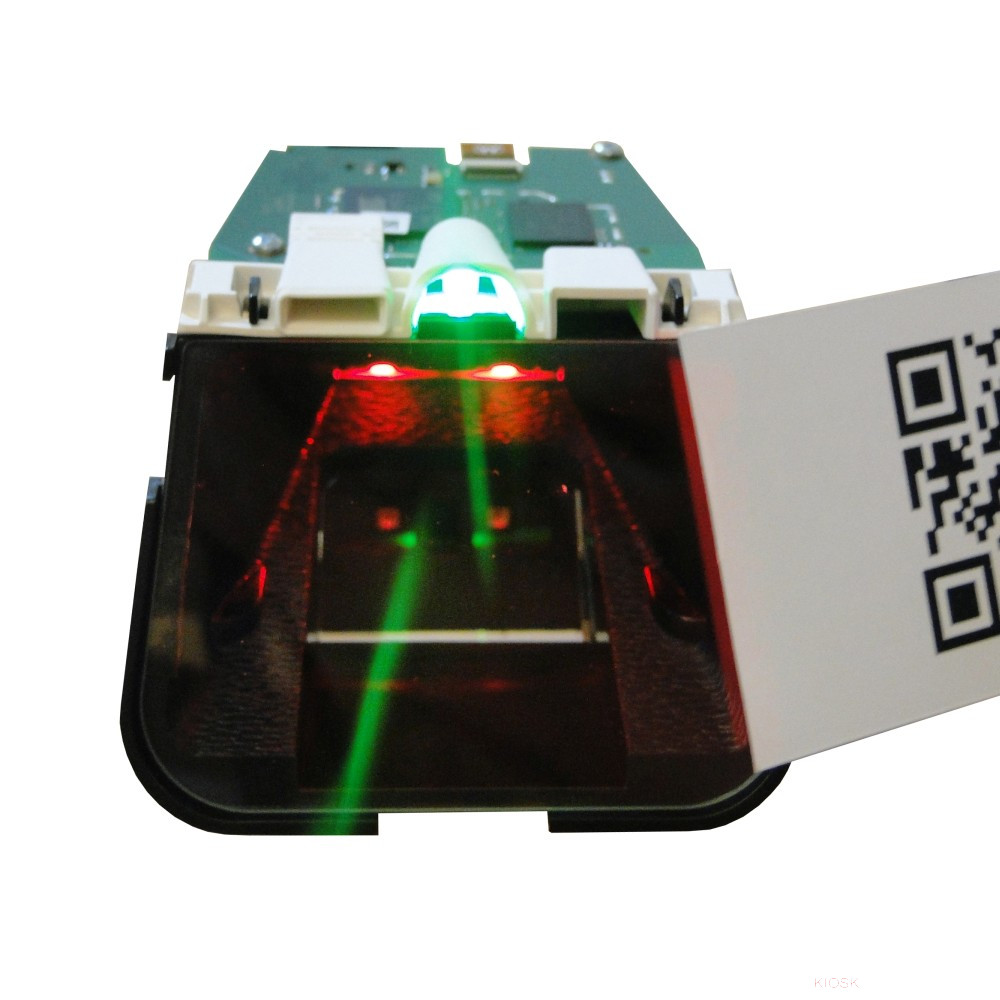

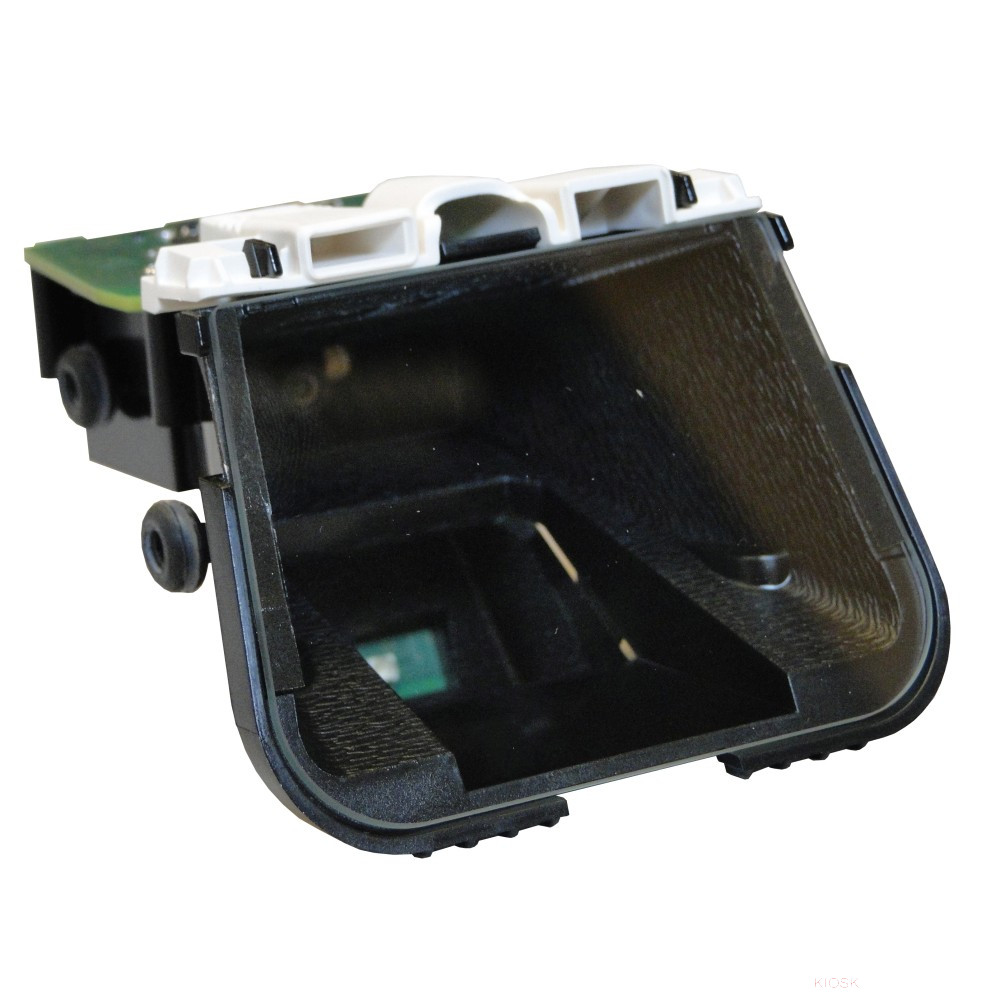

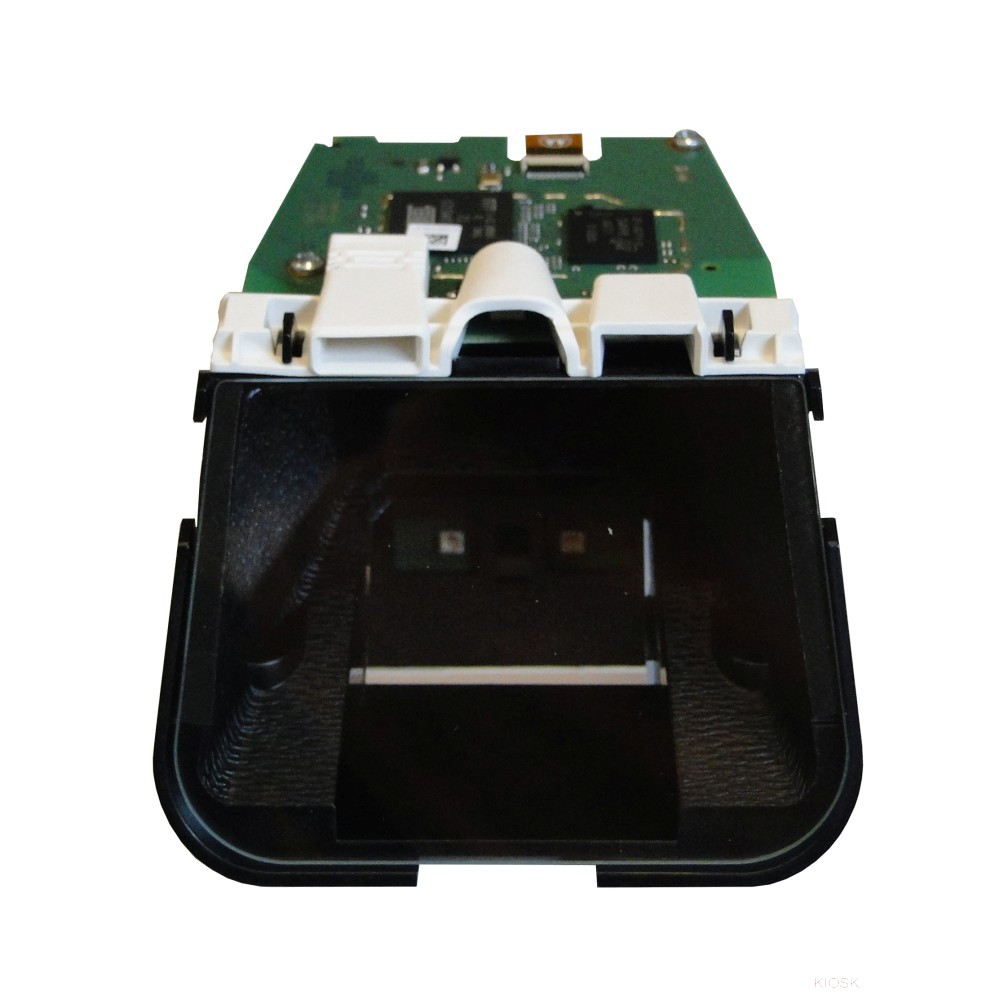

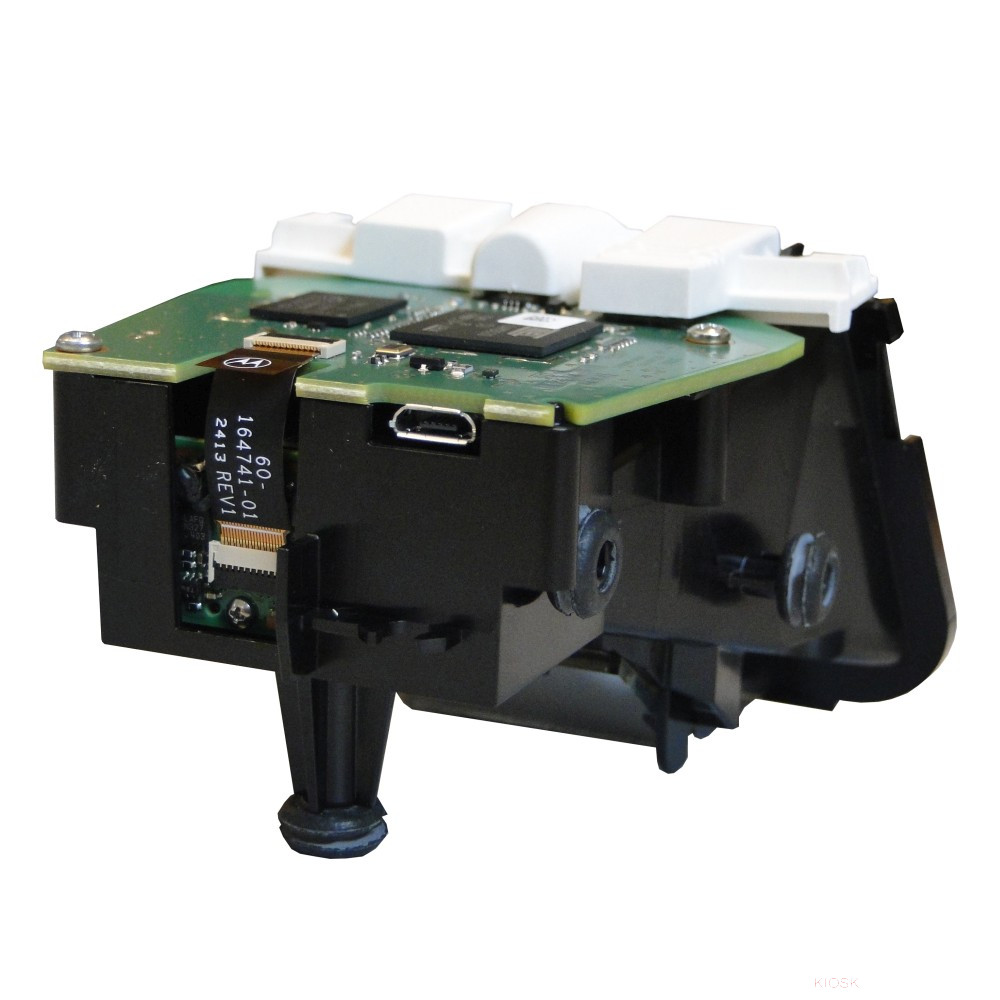

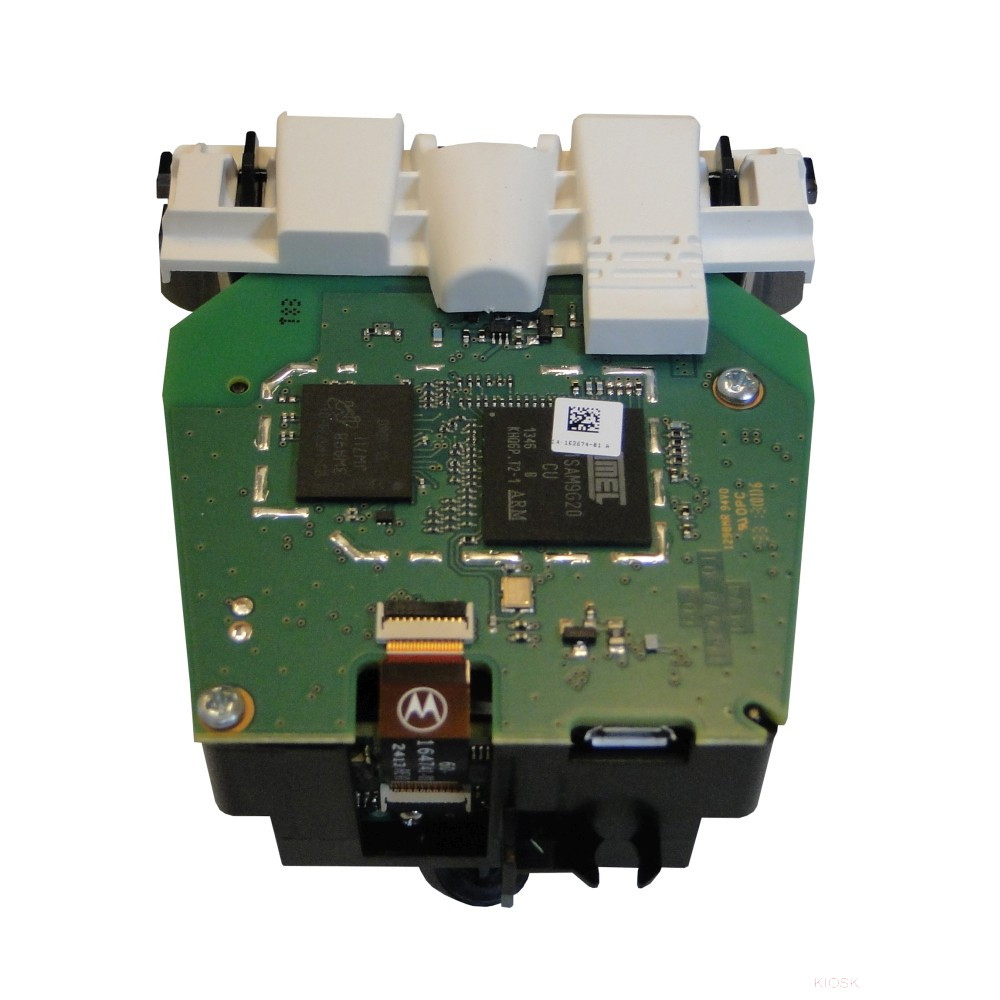

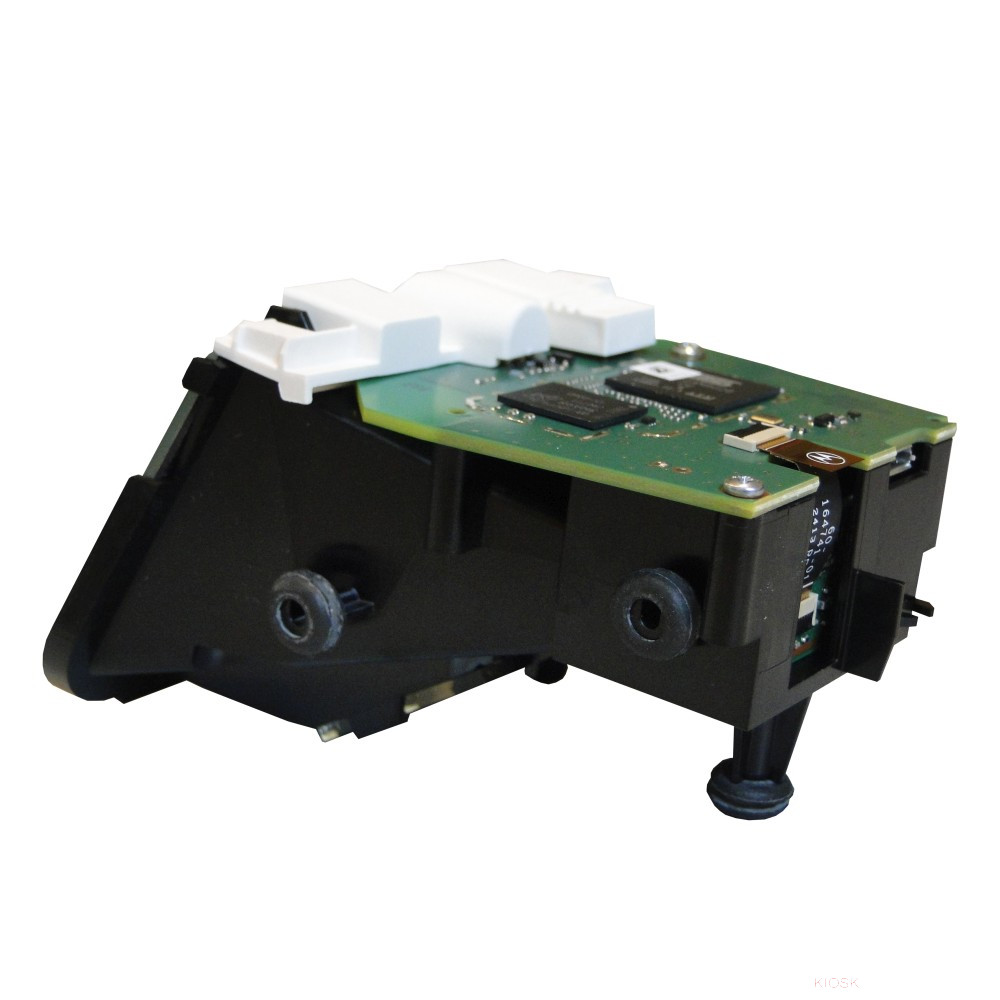

SE-3317-WA-L000R Scan engine turnkey all in one 1D/2D

Article No.:

23107036

SE-3317-WA-L000R Scan engine turnkey all in one 1D/2D

SE-3317-WA-L000R Scan engine turnkey all in one 1D/2D

Article No.:

23107036

Beépíthető Motorola SE-3317 1/2D vonalkódolvasó "motor".

THE PRICES OF THE PRODUCTS ON THIS WEBSITE ARE INDICATIVE PRICES FOR 1 ITEM. AFTER ASSESSING YOUR EXACT REQUIREMENTS, WE WILL SEND YOU A QUOTATION TAILORED TO YOUR PROJECT, INCLUDING ANY ADDITIONAL COSTS AND DISCOUNTS THAT MAY BE APPLICABLE. .

Our colleagues will contact you in any case. THE PICTURES OF THE PRODUCTS ON THIS WEBSITE ARE ILLUSTRATIONS, THEY MAY DIFFER FROM THE REAL APPEARANCE OF THE PRODUCT!

Available for order

Details
Info

Details

MOTOROlaSE3317-Wa

Features

Captureanybarcode—printed or electronic

The easiest way to integrate comprehensice scanning in to your consumer facing design

When your mission is to create equipment that will be used by consumers for self-scanning, the SE3317-WA is

ready for the job. This all-in-one solution combines an imager engine, decoder and auto trigger into a ready-toinstall

plug-and-play housing. Simply drop the SE3317- WA in place and connect via the USB 2.0 interface to

enable high performance scanning of virtually any bar code in kiosks, AT Ms, lottery terminals, self-diagnostic

healthcare equipment such as blood pressure testing, self-checkout stands and more.

Architected top provided the most intuitive scanning for consumers

Since your users will be untrained, scanning needs to simply work, first time, every time. And when you

choose the SE3317-WA as your scanning solution, it will. The oversized field of view allows users to present

items from contact to as far as a foot (30.48 cm) away from the scanner. Once the item is presented, no

other action is necessary — the infrared proximity sensor detects when an item is in the field of view and

automatically triggers the scan. With omnidirectional scanning, users never need to orient the bar code and

regardless of how it is presented. And since the SE3317-WA is made by Motorola, your customers

get the same high-quality scanning that has made Motorola the leader in the bar code industry —

even bar codes that are damaged or poorly printed can be captured on the first pass.

Ready for the barcodes of today and tomorrow

The SE3317-WA is ready to scan virtually any bar code consumers might present. It can capture 1D

and 2D bar codes, regardless of whether they are printed on paper or displayed on the screen of a

mobile phone.

Proven technology and proven OEM partner

When you choose the SE3317-WA, you get the peace of mind that comes from choosing superior,

well-tested technology. Every day, all around the world, our OEM products power millions of devices

in thousands of applications across industries. You enjoy award-winning data capture technology,

ease of integration, high reliability and superior performance, allowing you to rapidly create costeffective

high-quality solutions that meet the needs of your customers — and improve your margins.

Omnidirectionalscanning

Easyandintuitive—thereisneveraneedtoorientthebarcodeunderthescanner

advancedautotrigger theinfraredproximitysensorinstantlydetectswhenanitemispresentedandautomaticallytriggersthescan

Wideanglevga

alargeoversizedfieldofviewhelpsensuresuccessfulscanningforuntrainedusers

Simpleplug-and-playinterface

thefull-speedmicroUSB 2.0interfacemakesintegrationeasy

UniquelED aimingsystem

largeaiming‘spot’isidealforeasyaiminginfixedandpublic-facing installations

Easilyandcost-effectivelyempoweryourconsumer-facingdesignswithcomprehensive

easy-to-usehighlyintuitivescanning.tofindouthow,visitwww.motorolasolutions.com/SE3317

oraccessourglobalcontactdirectoryatwww.motorolasolutions.com/contactus

SPECifiCaTiOnS

PHySiCal CHaRaCTERiSTiCS

Dimensions 2.42 in. H x 3.09 in. W x 3.82in. D

61.3mmHx78.4mmWx96.9mmD

Weight 2.45oz./70grams

Interface MicroUSB-B

PERfORManCECHaRaCTERiSTiCS

Sensorresolution WideVGa:752H x480V pixels

GrayScale: 256 levels (8bits per pixel)

FocusingDistance 4.5in./11.5cmfromfrontofengine

FieldofView 35.4°horizontal,32.4°vertical angular tolerance Skew:±60°;Pitch:±60°;roll:360°

aiminglED DotopticalPower:0.19mWtypical

Illumination 625±5nm(dominantwavelength)Pattern angle 60°x40°at80%centerintensity

opticalresolutions 4.0mil(Code39),5.0mil(PDF417),

7.5mil(DataMatrix)

USER EnviROnMEnT

operatingtemp. 32°F to104°F/0°C to40°C

Storagetemp. -40°Fto158°F/-40°Cto70°C Humidity operating:95%rH,non-condensingat

104°F/40°C

Storage:85%rH,non-condensingat158°

F/70°C

ambientlight 8000ft.candles(86,100lux)

Power operating voltage:5VDC±0.5Voperatingcurrent(Idle):180mapeak,

90maaverage

operatingcurrent(Decoding):450mapeak,250maaverage

USEREnviROnMEnT(COnTinUED)

Shockrating* 250GappliedviaPCBclampedtoshock

plateat73.4°F/23°Cforaperiodof

1.75±2.5msec(allthreeaxesin+and-)

Vibrationrating* UnpoweredSE3317-Wawithstandsa

standardPoSrandom vibrationalongeachof the X, Y, and Z axes for a period of onehourperaxis,appliedviaPCBclampedtoshockplate,definedasfollows:

20Hzto2KHzat0.02G2/Hz

DECODERangES

barCode Specifications	nearDistance Typical	farDistance Typical
UPCa,13.0mil,80%MrD	Contactread	9.55 in./24.26 cm
PDF417,6.67mil,80% MrD	Contactread	2.75in./6.99cm
Code128,15.0mil,80%MrD	Contactread	7.5 in./19.05cm

•Distancesaremeasured startingat2inchesforwardthe center axis ofthefrontgrommetdowelsonthe modulechassis.

•Decoderanges aretested using photographic quality bar codes, pitch 20 ±1° withrespecttoopticalaxis.

•Barcodesurfacesshouldbeilluminatedatambientlightof>15ft.cd.

•allUPCsreadsecuritylevel=1.

REgUlaTORy

lEDSafetyClass IECClass1M

ESD ±2kV@connector

Environmental CompliantwithroHS

WaRRanTy

SubjecttothetermsofMotorola’shardwarewarrantystatement,theSE3317-Waiswarrantedagainstdefectsinworkmanshipandmaterialsforaperiodof15monthsfromthedateofshipment.

ForthecompleteMotorolahardwareproductwarrantystatement,

goto:www.motorolasolutions.com/warranty

THESE3317-Wa

iSiDEalfOR:

• Kiosks

• atMmachines

• Paymentandlotteryterminals

• Identity verificationkiosks

• Customer-facingdiagnostichealthcareequipment,such asbloodpressuretesting

TaRgETMaRkETS

• retail

• Hospitality

• Healthcare

• Gaming

• Banking

Max.PowerSupply

Noise*

100mVp-p-barcodeandimagecapture

applications,hostsupply=5VDCviaUSB(at 73.4°F/23°C)

*Forshockandvibration,performanceimprovesifthemoduleismountedvia5xgrommets,whichactasashockmountingfeature.

Partnumber:SS-SE3317-Wa.PrintedinUSa09/13.Motorola,Moto,MotorolaSolUtIoNSandtheStylizedM logoaretrademarksorregisteredtrademarksofMotorolatrademarkHoldings,llCandareusedunderlicense.allothertrademarksarethepropertyoftheirrespectiveowners.©2013MotorolaSolutions,Inc.allrightsreserved.

Info

ADAT INTERFACE:

RS232C

ÜZEMELÉSI KÖRÜLMÉNYEK:

BELTÉR 10-40°C

FELHASZNÁLÁSI TERÜLET:

POS , PÉNZTÁRI ALKALMAZÁS

GYÁRTÓ KIOSK:

EGYÉB

KIALAKÍTÁS:

BEÉPÍTHETŐ
